Molex / Waldom 172064-1004

B00O0IG9IA

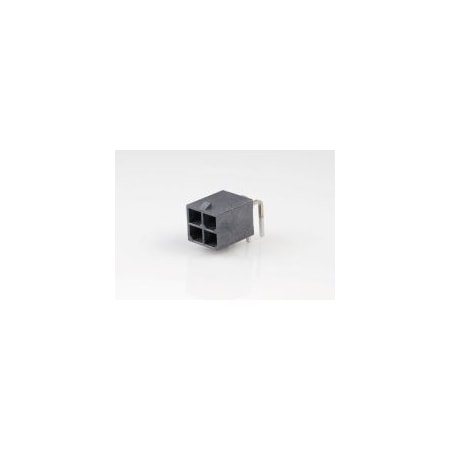

Molex / Waldom 172064-1004 Connector Power

Molex / Waldom 172064-1004 Connector Powerzoom

Attributes

Key Value
Applications Automotive, General Pu.
Base Product Number172064
Categories Connectors, Interconne.
Category Connectors, Interconne.
Connector Type Header
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Finish Thicknes. 30.0?in (0.76?m)
Contact Finish Thicknes. 100.0?in (2.54?m)
Contact Length - Mating -
Contact Length - Post 0.142" (3.60mm)
Contact Material Copper
Contact Shape Square
Contact Type Male Pin
Current Rating (Amps) -
DescriptionCONN HEADER R/A 4POS 5..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM11210-ND
Fastening Type Locking Ramp
Features Board Guide, Glow Wire.
Ingress Protection -
Insulation Color Black
Insulation Height 0.572" (14.53mm)
Insulation Material Liquid Crystal Polymer.
Lead Free Status / RoHS. Lead free / RoHS Compl.
Manufacturer Molex
Manufacturer Part Number 1720641004
Manufacturer Product Nu. 1720641004
Manufacturer Standard L.16 Weeks
Mated Stacking Heights -
Material Flammability R.UL94 V-0
Mfr Molex
Mounting TypeThrough Hole, Right Ang.
Number of Positions4
Number of Positions Loa.All
Number of Rows2
Operating Temperature -
Overall Contact Length -
PackageTray
Package Quantity1
Pitch - Mating0.224" (5.70mm)
Product StatusActive
Row Spacing - Mating0.224" (5.70mm)
SeriesMega-Fit
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating -

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com172064-10043.611208MOLEX / WALDOM3.6 @ 25
Newark42X10484.91125025MOLEX4.91 @ 1250
thumbzoomDigi-Key48399145.109618257Molex5.1096 @ 25
thumbzoomZoroG275930089.251525Molex89.25 @ 25
