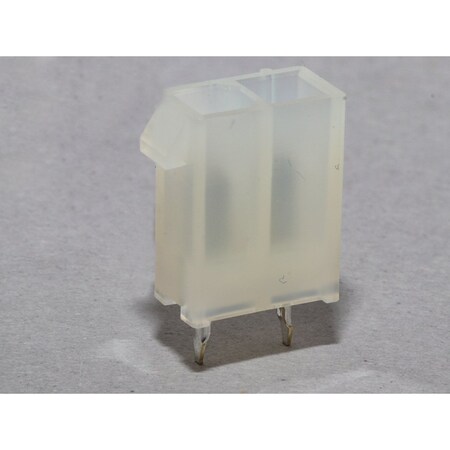

Molex / Waldom 39-28-1023 Connector Power

Brand: Molex / Waldom
PartNumber: 39281023
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL ; TUV
Alternate Mfr Part Numb.	5566-02A
Angle	Straight
Applications	General Purpose, Indust.
Base Product Number	003928
Category	Connectors, Interconnec.
Circuits (Loaded)	2
Circuits (maximum)	2
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	35.4?in (0.90?m)
Contact Finish Thicknes.	35.0?in (0.90?m)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current - Maximum per C.	9.0A
Current Rating	9 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 2POS
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM3800-ND
Durability (mating cycl.	30
Duration at Max. Proces.	5
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	-
Housing Material	Nylon 6/6
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0039281023
Manufacturer Standard L.	25 Weeks
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Tin
Material - Plating Term.	Tin
Material - Resin	Nylon
Material Flammability R.	UL94 V-2
Mfr	Molex
Mounting Hole Size	1.4 mm
Mounting Type	Through Hole
Number of Circuits	2
Number of Contacts	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40 to +105 ?C, -
Orientation	Vertical
Overall Contact Length	-
Overall Length	5.4 mm
Package	Bulk
PC Tail Length	3.50mm
PCB Locator	Yes
PCB Thickness - Recomme.	1.60mm
Pin Spacing	0.165 in
Pitch	4.20 mm (0.165")
Pitch - Mating	-
Plating Material	Tin
Plating min - Mating	0.889?m
Plating min - Terminati.	0.889?m
Polarized to Mating Part	Yes
Polarized to PCB	Yes
Primary Type	Soft Shell
Process Temperature max.	240
Product Header	Mini-Fit Jr.? Dual Row .
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5566, 5566 .
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Solder, Through Hole
Type	Vertical Header
UL	E29179
UPC Code	800753582200
Voltage - Maximum	600V
Voltage Rating	-, 600 V
