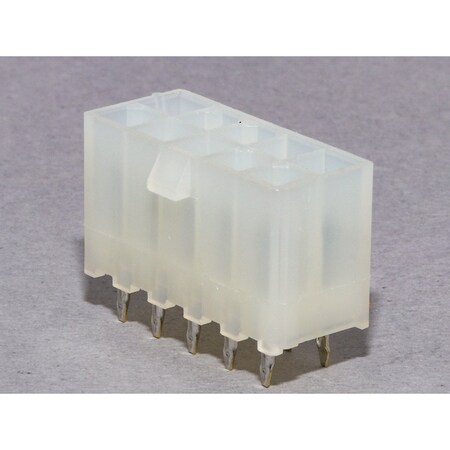

Molex 39-28-1103
- Brand: Molex
- PartNumber: 39281103
- Model: 39-28-1103
- Size: 1 Piece
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Numb. | 5566-10A |
| Alternate Part No. | 538-39-28-1103 |
| Angle | Straight |
| Applications | General Purpose, Indust. |
| Base Product Number | 003928 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Circuits (Loaded) | 10 |
| Color | Blue, Natural |
| Color - Resin | Natural |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 35.4?in (0.90?m) |
| Contact Finish Thicknes. | 35.0?in (0.90?m) |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| CSA | LR19980 |
| Current - Maximum per C. | 9.0A |
| Current Rating | 9 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 10POS . |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM3804-ND |
| Durability (mating cycl. | 30 |
| Duration at Max. Proces. | 5 |
| Family Name | Mini-Fit Jr. |
| Fastening Type | Locking Ramp |
| Features | - |
| Flammability | 94V-2 |
| Housing Material | Nylon 6/6, Nylon |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.504" (12.80mm) |
| Insulation Material | Polyamide (PA66), Nylon. |
| Manufacturer | Molex |
| Manufacturer Part No. | 39-28-1103 |
| Manufacturer Product Nu. | 0039281103 |
| Manufacturer Standard L. | 12 Weeks |
| Mated Stacking Heights | - |
| Material - Plating Mati. | Tin |
| Material - Plating Term. | Tin |
| Material - Resin | Nylon |
| Material Flammability R. | UL94 V-2 |
| Max. Cycles at Max. Pro. | 1 |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Hole Size | 1.4 mm |
| Mounting Type | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40 to +105 ?C, -40?C ~. |
| Orientation | Vertical |
| Overall Contact Length | - |
| Overall Length | 22.2 mm |
| Package | Bulk |
| Packaging | Bulk |
| Part # Aliases | 0039281103 39-28-1103 5. |
| PC Tail Length | 3.50mm |
| PCB Locator | Yes |
| PCB Thickness - Recomme. | 1.60mm |
| Pin Spacing | 0.165 in |
| Pitch | 4.2 mm, 4.20 mm (0.165") |
| Pitch - Mating | 0.165" (4.20mm) |
| Pitch - Termination Int. | 4.20mm |
| Plating Material | Tin |
| Plating min - Mating | 0.889?m |
| Polarized to Mating Part | Yes |
| Polarized to PCB | Yes |
| Primary Type | Soft Shell |
| Process Temperature max. | 240 |
| Product Category | Headers & Wire Housings |
| Product Header | Mini-Fit Jr.? Dual Row . |
| Product Status | Active |
| Product Type | Header Assemblies |
| Row Spacing | 5.5 mm |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Series | 5566, Mini-Fit Jr 5566,. |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Low-Halogen |
| Style | Board to Cable/Wire |
| Temperature Range - Ope. | -40? to +105?C |
| Termination | Solder, Through Hole |
| Termination Interface: . | Through Hole |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Jr. |
| Type | Pin Header, Vertical He. |
| UL | E29179 |
| UPC Code | 800753581982 |
| Voltage Rating | -, 600 V |
