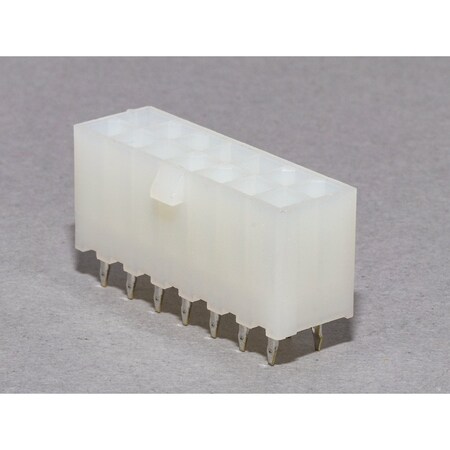

Molex / Waldom 39-28-1143 Connector Power

Brand: Molex / Waldom
PartNumber: 39281143
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL ; TUV
Alternate Mfr Part Numb.	5566-14A
Angle	Straight
Applications	General Purpose, Indust.
Base Product Number	003928
Category	Connectors, Interconnec.
Circuits (Loaded)	14
Circuits (maximum)	14
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	35.4?in (0.90?m)
Contact Finish Thicknes.	35.0?in (0.90?m)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
Current - Maximum per C.	9.0A
Current Rating	9 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 14POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM3806-ND
Durability (mating cycl.	30
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	-
Housing Material	Nylon 6/6
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0039281143
Manufacturer Standard L.	12 Weeks
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Term.	Tin
Material - Resin	Nylon
Material Flammability R.	UL94 V-2
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Hole Size	1.4 mm
Mounting Type	Through Hole
Number of Circuits	14
Number of Contacts	14
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40 to +105 ?C, -
Orientation	Vertical
Overall Contact Length	-
Package	Bulk
PC Tail Length	3.50mm
PCB Locator	Yes
PCB Thickness - Recomme.	1.60mm
Pin Spacing	0.165 "
Pitch	4.20 mm (0.165")
Pitch - Mating	0.165" (4.20mm)
Pitch - Mating Interface	4.20mm
Pitch - Termination Int.	4.20mm
Plating Material	Tin
Plating min - Mating	0.889?m
Plating min - Terminati.	0.889?m
Polarized to Mating Part	Yes
Polarized to PCB	Yes
Primary Type	Soft Shell
Process Temperature max.	240
Product Header	Mini-Fit Jr.? Dual Row .
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5566, 5566 .
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Solder, Through Hole
Termination Interface: .	Through Hole
Type	Vertical Header
UL	E29179
UPC Code	800753628595
Voltage - Maximum	600V
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Sager Electronics	0039281143	0.702	1	2045		Molex	0.702 @ 100
Waldom	MOLEX 39-28-1143	0.72	75	4171		MOLEX	0.72 @ 100
TME	MX-5566-14A	0.789	1	19181		MOLEX	0.789 @ 100
Power and Signal Group	0039281143	0.8538	150	100		Molex	0.8538 @ 150
Component Electronics	299-3425	0.92	1	100		Molex	0.92 @ 100
NEP Electronics	39-28-1143	1.0	75	5974		Molex	1.0 @ 100
Onlinecomponents.com	39-28-1143	1.08	30	100		Molex	1.08 @ 100
Digi-Key	61416	1.6956	1	40648		Molex	1.6956 @ 100
Newark	98K8995	1.83	1	5332		MOLEX	1.83 @ 100
us.rs-online.com	70091202	2.22	1	2985		Molex Incorporated	2.22 @ 100
RS Delivers	181-5055P	3.0576	1	1980		Molex	3.0576 @ 100
AmazonTP	B07QP959NR	39.24	1	100	1	Molex / Waldom	39.24 @ 100
Zoro	G4036992	111.0	60	100		Molex	111.0 @ 100
