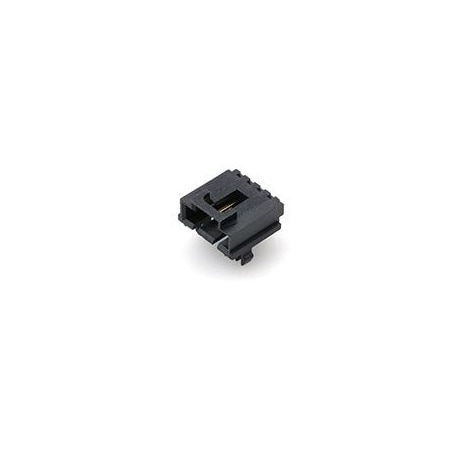

Molex 70551-0038

mpn70551-0038
brandname: MOLEX
manufacturername: MOLEX

MOLEX 70551-0038

MOLEX 70551-0038

zoom

Brand: Molex
PartNumber: 70551-0038
Model: 70551-0038
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	A-70555-0044
Circuits (Loaded)	4
Circuits (maximum)	4
Color	Black
Color - Resin	Black
CSA	LR19980
Current - Maximum per C.	3.0A
Current Rating	3 A
Durability (mating cycl.	50
Family Name	SL
Flammability	94V-0
Material - Metal	Brass, Phosphor Bronze
Material - Plating Mati.	Gold
Material - Plating Term.	Tin
Material - Resin	High Temperature Thermo.
Number of Circuits	4
Number of Contacts	4
Number of Rows	1
Orientation	Right Angle
PC Tail Length	3.30mm
PCB Thickness - Recomme.	1.60mm
Pitch	2.54 mm (0.100")
Pitch - Mating Interface	2.54mm
Plating Material	Gold
Plating min - Mating	0.381?m
Plating min - Terminati.	1.905?m
Polarized to Mating Part	Yes
Primary Type	Board Mount
Series	70551 Series
Shrouded	Fully
Special Features	Not Low-Halogen
Temperature Range - Ope.	-40? to +105?C
Termination Interface: .	Through Hole
Type	Right Angle Header
UL	E29179
Voltage - Maximum	250V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 70551-0038	0.86	65	48279		MOLEX		0.86 @ 65
	Onlinecomponents.com	70551-0038	0.98	1	348		MOLEX / WALDOM		0.98 @ 1
	us.rs-online.com	70967262	1.33	1	75		Molex Incorporated		1.33 @ 1
	Verical	70551-0038	1.623	8	36		Molex		1.623 @ 8
	IBS Electronics	70551-0038	1.7	1	75		MOLEX		1.7 @ 1
	Newark	93M3428	1.85	60	48000		MOLEX		1.85 @ 50
	Zoro	G7769508	126.75	65	In Stock		Molex		126.75 @ 65
