Molex / Waldom 46114-2321

mpn46114-2321
brandname: MOLEX / WALDOM
manufacturername: MOLEX / WALDOM

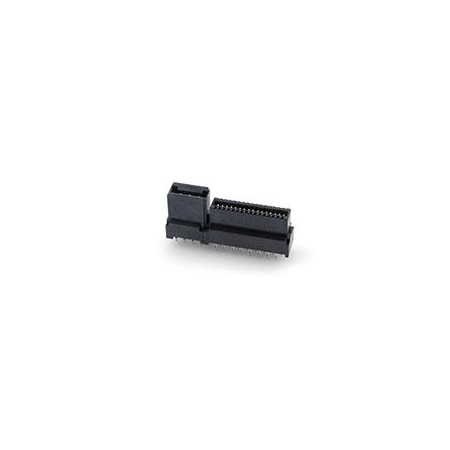

46114-2321, Conn LPH RCP 34 POS 1.27mm Press Fit ST Thru-Hole 34 Terminal 1 Port Extreme LPHPower Tray (5 Items)

46114-2321, Conn LPH RCP 34 POS 1.27mm Press Fit ST Thru-Hole 34 Terminal 1 Port Extreme LPHPower Tray (5 Items)

zoom

Brand: Molex / Waldom
PartNumber: 46114-2321
Model: 45984-8162
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
(p)ower-(s)ignal Config.	2p - 32s
Application	Board-to-Board, Power
Circuits (Loaded)	34
Circuits (maximum)	34
Color - Resin	Black
Current - Maximum per C.	30.0A
Durability (mating cycl.	250
Material - Metal	High Performance Alloy .
Material - Plating Term.	Tin
Material - Resin	High Temperature Thermo.
Number of Rows	2
Orientation	Vertical
Pitch - Mating Interface	1.27mm, 12.00mm
Pitch - Termination Int.	1.27mm, 2.50mm
Plating min - Mating	0.762?m
Plating min - Terminati.	2.540?m
Polarized to Mating Part	Yes
Polarized to PCB	Yes
Series	46114
Surface Mount Compatibl.	Yes
Temperature Range - Ope.	-40? to +105?C
Termination Interface: .	Through Hole - Complian.
UL	E29179
Voltage - Maximum	250V AC (RMS)/DC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	46114-2321	6.19	1	306		MOLEX / WALDOM		6.19 @ 25
	Newark	56R0363	8.25	360	25		MOLEX		8.25 @ 360
	Digi-Key	14733238	9.81	8	25		Molex		9.81 @ 25
	Zoro	G4048271	1451.76	184	25		Molex		1451.76 @ 184
