Molex / Waldom 39-30-0080

mpn39-30-0080
brandname: Molex Incorporated
manufacturername: Molex Incorporated

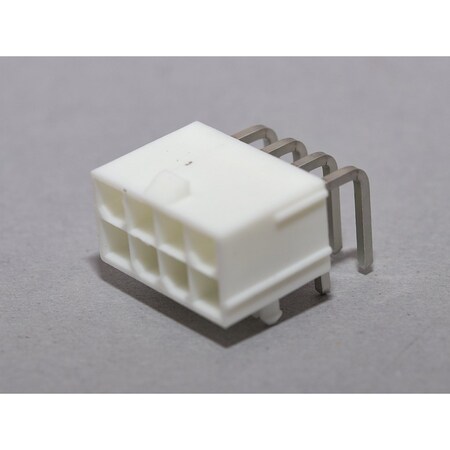

Molex / Waldom 39-30-0080 Connector Power

Brand: Molex / Waldom
PartNumber: 39-30-0080
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL ; TUV
Alternate Mfr Part Numb.	5569-08A2-210
Angle	Right Angle
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Male Pin
Contact Finish	Matte Tin Plated
Contact Finish - Mating	100.0?in (2.54?m)
Contact Finish - Post	Brass
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	General Purpose, Indust.
Contact Length - Mating	0.142" (3.60mm)
Contact Length - Post	-
Contact Material	Brass, Polyamide (PA66).
Contact Plating	Tin
Contact Plating Thickne.	2.54 ?m
Contact Shape	Tin
Contact Type	0.165" (4.20mm)
Current Rating	13 A
Current Rating (Amps)	-
Family Name	Mini-Fit Jr.
Fastening Type	-
Features	-
Flammability Rating	UL 94V-0
Hole Center to Center	4.2 mm
Housing Material	Nylon
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	Board Lock
Mated Stacking Heights	100.0?in (2.54?m)
Material	Nylon
Material Flammability R.	Natural
Max. Temp.	240?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Solder
Number of Circuits	8
Number of Contacts	8
Number of Positions	2
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	2, 0.165" (4.20mm)
Operating Temperature	-40 to +105 ?C, -
Orientation	Right Angle
Overall Contact Length	0.378" (9.60mm)
Overall Length	0.71 "
Package	Active
Part Status	Header
Pin Length	0.14 "
Pin Spacing	0.165 in
Pitch	4.20 mm (0.165")
Pitch - Mating	8
Plating Material	Matte Tin
Primary Type	Soft Shell
Product Header	Wire-to-Board PCB Header
Row Spacing - Mating	All
Series	Bulk, 5569 Series
Shrouding	Through Hole, Right Ang.
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Shrouded - 4 Wall
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	Through Hole, Locking R.
Type	Header
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Waldom	MOLEX 39-30-0080	0.57	95	8682		MOLEX	0.57 @ 95
Sager Electronics	0039300080	0.589	1	2282		Molex	0.589 @ 1
Power and Signal Group	0039300080	0.6807	1800	146		Molex	0.6807 @ 1800
Onlinecomponents.com	39-30-0080	0.844	40	277		Molex	0.844 @ 40
us.rs-online.com	70191047	0.95	2	1425		Molex Incorporated	0.95 @ 2
NEP Electronics	39-30-0080	1.0735	70	81		Molex	1.0735 @ 70
Newark	56H8324	1.18	1	376		MOLEX	1.18 @ 1
Digi-Key	WM21354-ND	1.44	1	69		Molex	1.44 @ 1
TME	MX-39-30-0080	1.59	10	2773		MOLEX	1.59 @ 10
Component Electronics	299-10356	2.31	1	10		Molex	2.31 @ 1
RS Delivers	679-5852	2.4012	1	320		Molex	2.4012 @ 1
Radwell	39-30-0080	2.5	1	40		MOLEX	2.5 @ 1
AmazonTP	B00MEJCN0A	9.46	1	40	2	MOLEX	9.46 @ 1
Zoro	G4043749	108.75	1	In Stock		Molex	108.75 @ 1
