Molex / Waldom 53258-0429

mpn53258-0429
brandname: Molex Incorporated
manufacturername: Molex Incorporated

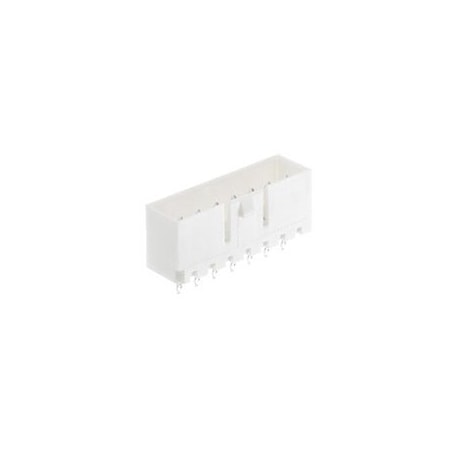

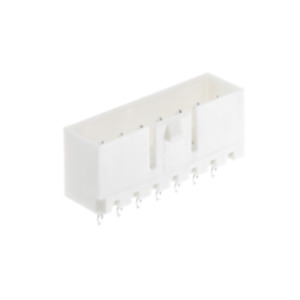

Molex / Waldom 53258-0429 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 53258-0429
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Allowable Current(A)	5.5
Applications	-
Base Product Number	053258
Category	Connectors, Interconnec.
Circuits (Loaded)	4
Circuits (maximum)	4
Color	Natural
Color - Resin	Natural
Connector Shape	Square
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current - Maximum per C.	5.5A
Current Rating	5.5 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 4POS 3.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM3415-ND
Durability (mating cycl.	30
Fastening Type	Locking Ramp
Features	-
Flammability	94V-0
Guide to Mating Part	Yes
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.413" (10.49mm)
Insulation Material	Polybutylene Terephthal.
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0532580429
Manufacturer Standard L.	42 Weeks
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Tin
Material - Plating Term.	Tin
Material - Resin	Polyester
Material Flammability R.	UL94 V-0
Mating partner	51067
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	-
Package	Tray
PC Tail Length	3.50mm
PCB Thickness - Recomme.	1.60mm
Pitch - Mating	0.138" (3.50mm)
Pitch - Mating Interface	3.50mm
Plating Material	Tin
Plating min - Mating	1.016?m
Plating min - Terminati.	1.016?m
Product Status	Active
Row Spacing - Mating	-
Series	53258, 53258 Series
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Press-Fit, Solder
Termination Interface: .	Through Hole
UL	E29179
Voltage - Maximum	250V
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Arrow	53258-0429	0.2	1	8989	Molex	0.2 @ 50
Waldom	MOLEX 53258-0429	0.37	150	263	MOLEX	0.37 @ 150
Onlinecomponents.com	53258-0429	0.441	1	1590	MOLEX / WALDOM	0.441 @ 50
jensentools.com	10193699	0.53	1	50	Molex	0.53 @ 50
Newark	01AH1417	0.678	1	50	MOLEX	0.678 @ 50
us.rs-online.com	71464281	0.72647	1	50	Molex Incorporated	0.72647 @ 50
Digi-Key	2405206	0.848	1	8910	Molex	0.848 @ 50
Misumi USA	53258-0429	1.2	1	50	Molex	1.2 @ 50
Radwell	53258-0429	2.25	1	50	MOLEX	2.25 @ 50
Zoro	G2090983	2430.0	3000	50	Molex	2430.0 @ 3000
