Molex / Waldom 70551-0001

mpn70551-0001
brandname: Molex Incorporated
manufacturername: Molex Incorporated

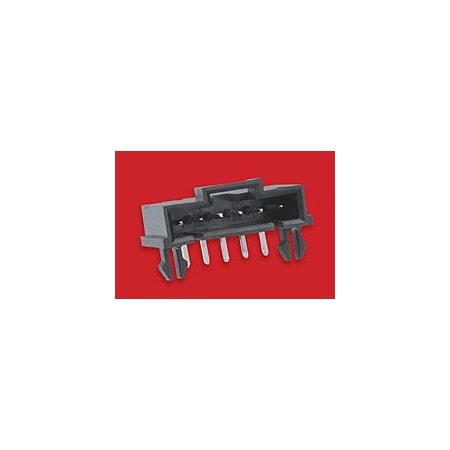

Molex / Waldom 70551-0001 Connector Headers and PCB Receptacles

Molex / Waldom 70551-0001 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 70551-0001
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	070551
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	150.0?in (3.81?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Contact Material	Phosphor Bronze
Contact Plating Thickne.	3.81 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 2POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM4236-ND
Fastening Type	Latch Holder
Features	Board Lock
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.215" (5.45mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0705510001
Manufacturer Standard L.	9 Weeks
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	245?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Contacts	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Tube
Package Quantity	1
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	-
Series	SL 70551
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	250V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 70551-0001	0.46	150	1463		MOLEX		0.46 @ 250
	Onlinecomponents.com	70551-0001	0.461	1	5320		MOLEX / WALDOM		0.461 @ 250
	Power and Signal Group	70551-0001	0.5445	2440	250		Molex		0.5445 @ 2440
	Mouser	538-70551-0001	0.678	1	3004		Molex		0.678 @ 250
	Verical	70551-0001	0.81	8	1433		Molex		0.81 @ 250
	Digi-Key	2421652	0.8122	1	49141		Molex		0.8122 @ 250
	Component Electronics	299-7475	3.08	1	250		Molex		3.08 @ 250
	Zoro	G2751129	157.5	150	250		Molex		157.5 @ 250
