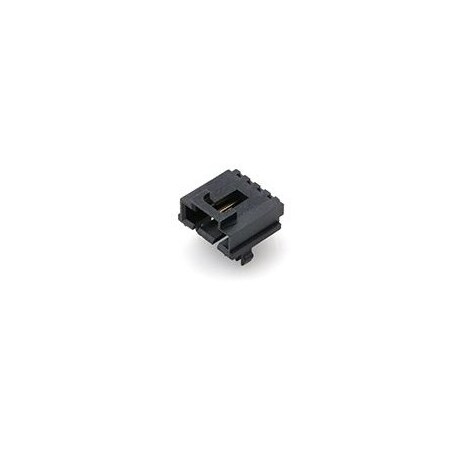

Molex 70551-0003

mpn70551-0003
brandname: Molex Incorporated
manufacturername: Molex Incorporated

MOLEX 70551-0003

Brand: Molex
PartNumber: 70551-0003
Model: 70551-0003
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	070551
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	150.0?in (3.81?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Contact Material	Phosphor Bronze
Contact Plating Thickne.	3.81 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 4POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM14054-ND
Family Name	SL
Fastening Type	Latch Holder
Features	Board Lock
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.215" (5.45mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0705510003
Manufacturer Standard L.	9 Weeks
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	245?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch - Mating	0.100" (2.54mm)
Plating Material	Tin
Product Status	Active
Row Spacing - Mating	-
Series	SL 70551, 70551 Series
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	250V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Heilind Electronics	70551-0003	0.5	100	2010	Molex	0.5 @ 100
Waldom	MOLEX 70551-0003	0.56	114	178	MOLEX	0.56 @ 114
Power and Signal Group	70551-0003	0.5941	1520	178	Molex	0.5941 @ 1520
Onlinecomponents.com	70551-0003	0.66	1	389	MOLEX / WALDOM	0.66 @ 1
Newark	25M5136	0.678	38	147	MOLEX	0.678 @ 25
jensentools.com	10195608	0.75	1	1595	Molex	0.75 @ 1
Zoro	G2747312	0.87	114	178	Molex	0.87 @ 114
us.rs-online.com	71463882	0.945	1	178	Molex Incorporated	0.945 @ 1
Mouser	538-70551-0003	1.16	1	2435	Molex	1.16 @ 1
Hotenda	H1369570	1.21	1	1520	Molex	1.21 @ 1
RS Delivers	213-4682	1.2324	1	1520	Molex	1.2324 @ 1
Digi-Key	3468757	1.35	1	482	Molex	1.35 @ 1
