Molex 70551-0036

mpn70551-0036
brandname: Molex Incorporated
manufacturername: Molex Incorporated

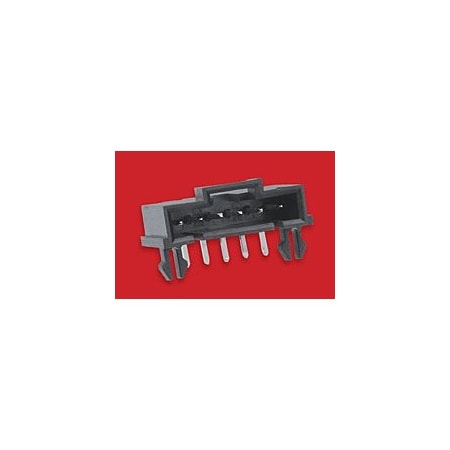

Molex Connector, Header, 2Pos, 1Row, 2.54Mm - 70551-0036

Brand: Molex
PartNumber: 70551-0036
Model: 70551-0036
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	070551
Category	Connectors, Interconnec.
Circuits (Loaded)	2
Color	Black
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 2POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM14058-ND
Durability (mating cycl.	50
Duration at Max. Proces.	3
Family Name	SL
Fastening Type	Latch Holder
Features	Board Lock
Flammability	94V-0
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.215" (5.45mm)
Insulation Material	Polyester, Glass Filled
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0705510036
Mated Stacking Heights	-
Material - Metal	Brass, Phosphor Bronze
Material - Plating Mati.	Gold
Material - Plating Term.	Tin
Material - Resin	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Tube
PC Tail Length	3.30mm
PCB Locator	Yes
PCB Retention	Yes
PCB Thickness - Recomme.	1.60mm
Pitch - Mating	0.100" (2.54mm)
Pitch - Mating Interface	2.54mm
Plating Material	Gold
Plating min - Mating	0.381?m
Polarized to Mating Part	Yes
Process Temperature max.	260
Product Status	Active
Row Spacing - Mating	-
Series	SL 70551, 70551 Series
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Solder
Termination Interface: .	Through Hole
Voltage - Maximum	250V
Voltage Rating	250V
