DZ-10GV-1B

B00DDKPNOW

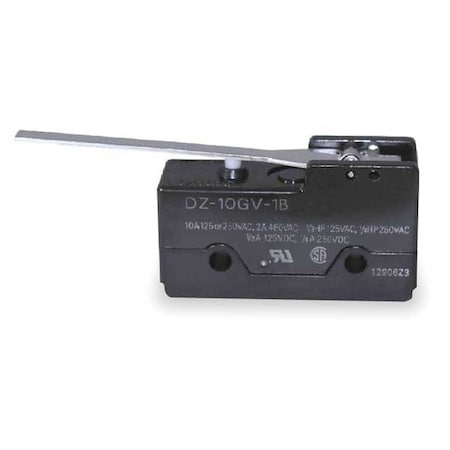

Omron Automation DZ-10GV-1B Switch, 10 Amp, 480 Volt Mini Switch, Hinge Lever, Screw Terminals

Omron Automation DZ-10GV-1B Switch, 10 Amp, 480 Volt Mini Switch, Hinge Lever, Screw Terminalszoom

Attributes

Key Value
AC Contact Rating - Sna.10 A @ 240 V
ActuatorLever
Actuator Length1.94"
Actuator TypeLever, Lever, Straight
Actuator Type - Snap Ac.Hinge, Lever
Alternate Mfr Part Numb.DZ10GV1B
Alternate Part No.653-DZ-10GV-1B
Base Product NumberDZ-10G
BrandOmron Automation and Sa.
CategorySwitches
CircuitDPDT
Contact FormDPDT
Contact Form- SwitchesDPDT
Contact MaterialSilver Alloy
Current Rating10 A
Current Rating (Amps)10A (AC/DC)
DC Contact Rating - Sna.10 A @ 30 V
Depth0.69"
Depth - Snap Action Swi.0.69 in
DescriptionSWITCH SNAP ACTION DPDT.
Detailed DescriptionSwitch DPDT Chassis Mou.
Differential Travel0.066 in, 0.065" (1.7mm)
Digi-Key Part NumberZ7377-ND
Electrical Life500,000 Cycles
Enclosure RatingUnsealed
Features-
Height1.10"
Height - Snap Action Sw.1.1 in
Housing MaterialPhenolic
Ingress ProtectionIP00
IP RatingIP 00
ItemIndustrial Snap Action .
Length1.94"
Lever Actuator Length -.1.94 in
ManufacturerOmron, Omron Automation.
Manufacturer Part No.DZ-10GV-1B
Manufacturer Product Nu.DZ-10GV-1B
Manufacturer Standard L.26 Weeks
Mechanical Life1,000,000 Cycles
MfrOmron Automation and Sa.
MountingPanel
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting Hole Size2x Dia. 4.2 ; 25.4 Apart
Mounting TypeChassis Mount
Operating Force200gf, 1.96 N
Operating Position0.720" (18.3mm)
Operating Temperature-25?C ~ 80?C
Over Travel0.016 in
Overtravel0.062" (1.6mm)
PackageTray
Pretravel0.236" (6.0mm)
Product CategoryBasic / Snap Action Swi.
Product StatusActive
Release Force0.47 oz, 13gf
SeriesDZ Series, DZ
StandardsUL / CSA
Switch FunctionOFF - (ON), On-Mom
Terminal TypeScrew
TerminationScrew
Termination StyleScrew, Screw Terminal
TypeSpecial Purpose
Type of ActuatorHinge Lever
Voltage Rating480VAC, 250 V
Voltage Rating - AC125 V
Voltage Rating - DC30 V
Voltage Rating AC250 V
Voltage Rating DC250 V
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG092904717.651In StockOmron0.0517.65 @ 1
AvnetDZ10GV1B23.1381In StockOmron23.138 @ 1
Onlinecomponents.comDZ10GV1B24.42167OMRON INDUSTRIAL24.42 @ 1
thumbzoomsustainablesupply.comC119560729.031In StockOmron0.0529.03 @ 1
thumbzoomkempstoncontrols.co.ukDZ-10GV-1B29.0957941In StockOmron29.095794 @ 1
RS Delivers827-922630.516199Omron30.516 @ 1
thumbzoomswatee.comDZ-10GV-1B38.113Omron38.1 @ 1
Airline HydraulicsOMRON DZ-10GV-1B39.141In StockOmron39.14 @ 1
Master ElectronicsDZ10GV1B43.24135Omron Automation43.24 @ 1
Mouser653-DZ-10GV-1B43.2915Omron43.29 @ 1
thumbzoomDigi-Key36855743.5915Omron Automation and Safety43.59 @ 1
Newark89C439643.651In StockOMRON INDUSTRIAL AUTOMATION43.65 @ 1
us.rs-online.com7017856749.9412Omron Automation49.94 @ 1
