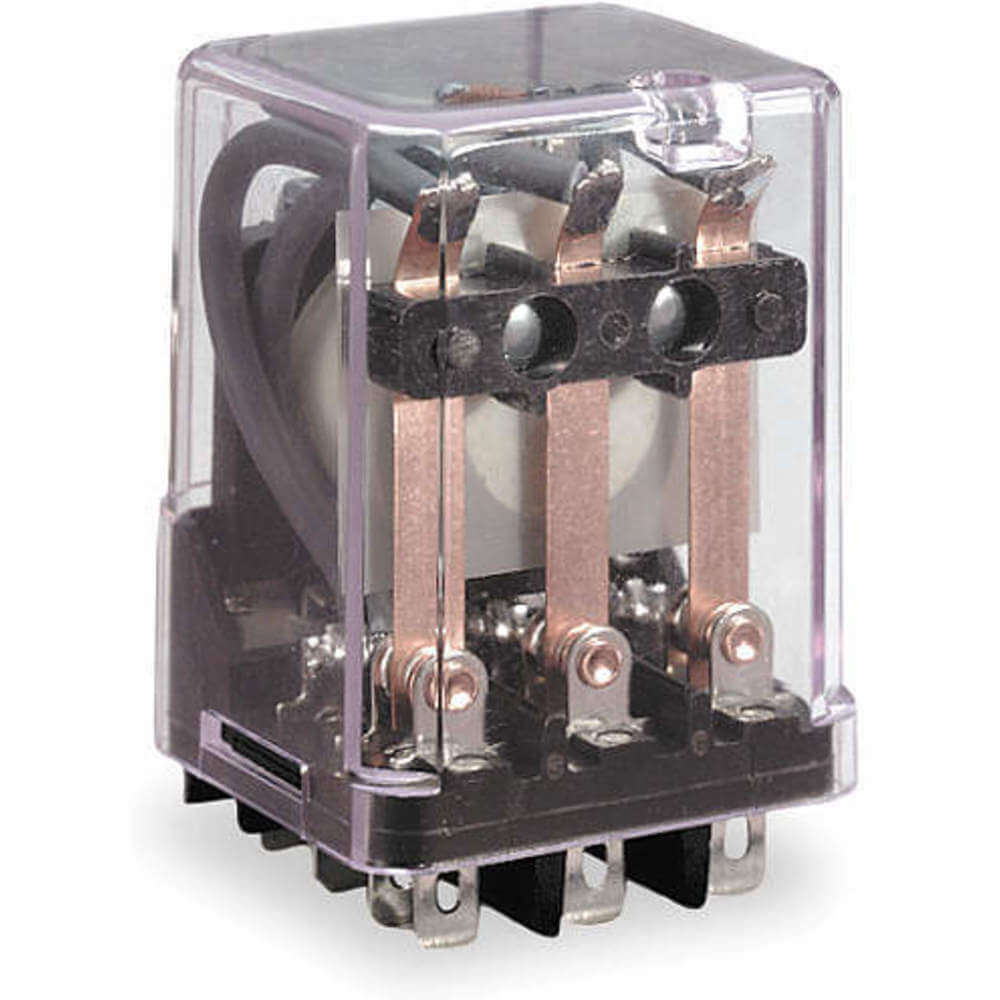

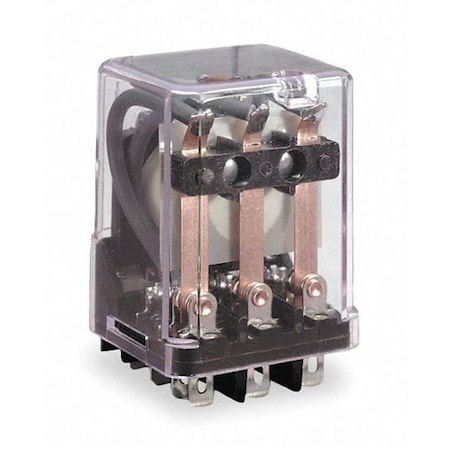

Omron MJN3C-N-AC120

mpnMJN3C-N-AC120
brandname: Omron Automation and Safety
manufacturername: Omron Automation and Safety

Plug in Relay, 11 Pins, Square, 120VAC

Brand: Omron
PartNumber: MJN3C-N-AC120
Model: MJN3C-N-AC120
PackageQuantity: 1
Binding: Misc.
Manufacturer: OMRON
Label: OMRON

Attributes

Key	Value
AC Contact Rating - Rel.	10 A @ 240V, 10A @ 240V
Alternate Mfr Part Numb.	MJN3CNAC120
Base Type - Plug In Rel.	Square
Body Depth	1.91 in
Body Depth - Relay	1.40 in, 1.4 in
Body Height	1.53 in
Body Height - Relay	1.91 in
Body Width	1.4 in
Body Width - Relay	1.53 in
Brand	Omron
Category	Relays
Coil Current	20 ms
Coil Insulation	102 VAC
Coil Resistance	1700 Ohms
Coil Type	Lighted Indicator
Coil Voltage	120 VAC ; 110/115/120/1.
Coil Volts	120V AC
Contact Current Rating	10 A
Contact Form	600VAC, 28VDC - Max, 3P.
Contact Form - Relay	3PDT
Contact Material	3?16in. Dia. Ag-Alloy, .
Contact Rating (Current)	16.7 mA
Contact Voltage Rating	300 VAC
Control Voltage	120
Current Rating	10 A
Current Stock	3
DC Contact Rating - Rel.	10 A @ 28V, 10A @ 28V
Dielectric Rating	750 VAC
Dimensions	1.525 L x 1.400 W x 1.9.
Features	Plug In, Quick Connect .
Flat Pin Width	0.187 in
Function	General Purpose
HP @ 120V	1/3 hp
HP @ 240V	1/2 hp
International Shipping	No
Item	General Purpose Relay
Item - Relay	General Purpose Relay
Lead Time	Expected to ship in 1-2.
Maximum Operating Tempe.	45 ?C
Mfr	Omron Automation and Sa.
Minimum Operating Tempe.	-45 ?C
Mounting - Relay	Plug In, Plug-In
Mounting Type	Socket Mount, 120VAC
Mpn	MJN3C-N-AC120
Must Operate Voltage	-
Must Release Voltage	-45?C ~ 45?C
Number of Pins - Relay	11
Operate Time	10 ms
Operating Temperature	Silver Alloy
Overall Depth	2.19 in
Overall Height - Relay	2.19 in
Package	Active
Part Status	Socketable
Power Consumption - Rel.	2 VA, 2.0 VA
Power Rating	2400 VA ; 280 W
Primary Type	Power Relays
Push To Test	No
Relay Type	Electromechanical, 10 A
Release Time	1.7 kOhms
Seal Rating	-
Series	Bulk, MJN Series
SKU	ZO-G1982811
Socket Code	C
Socket Code - Relay	C
Standards	CSA Certified, UL Liste.
Status Indicator	LED
SubCategory	Electrical
Switching Voltage	Non Latching
Termination	QC Tabs
Termination Style	-
Voltage Rating	240 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Waldom	OMRON ELECTRONICS MJN3C-N-AC120	16.63	1	In Stock		Omron Electronics		16.63 @ 1
AmazonSC	B000LER6AW	23.24	1	In Stock		Omron		23.24 @ 1
Zoro	G1982811	26.45	1	77		Omron	0.2	26.45 @ 1
Digi-Key	Z6420-ND	26.46	1	In Stock		Omron Automation and Safety		26.46 @ 1
Mouser	653-MJN3C-N-AC120	26.46	1	3		Omron		26.46 @ 1
AmazonTP	B00HPLIZ5O	28.66	1	In Stock	2	Omron		28.66 @ 1
grainger.ca	WWG5ZH89	29.59111062	1	In Stock		OMRON	0.2	29.59111062 @ 1
us.rs-online.com	70178905	30.57	1	14		Omron Automation		30.57 @ 1
Newark	89C7262	32.96	1	In Stock		OMRON INDUSTRIAL AUTOMATION		32.96 @ 1
Master Electronics	MJN3CNAC120	33.22	1	34		Omron Automation		33.22 @ 1
Onlinecomponents.com	MJN3CNAC120	36.12	1	14		Omron		36.12 @ 1
simsupply.com	ZO-G1982811	38.86	1	3		Omron		38.86 @ 1
Verical	MJN3C-N-AC120	42.26	2	13		Omron		42.26 @ 2
Raptor Supplies	AE7MND	48.090744	1	In Stock		OMRON		48.090744 @ 1
