- mpnDV18-250B-MY
- brandname: Panduit
- manufacturername: Panduit

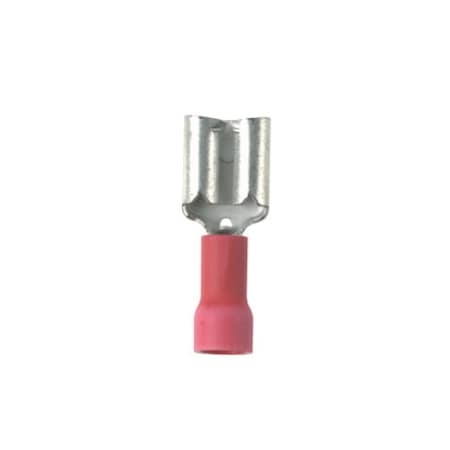

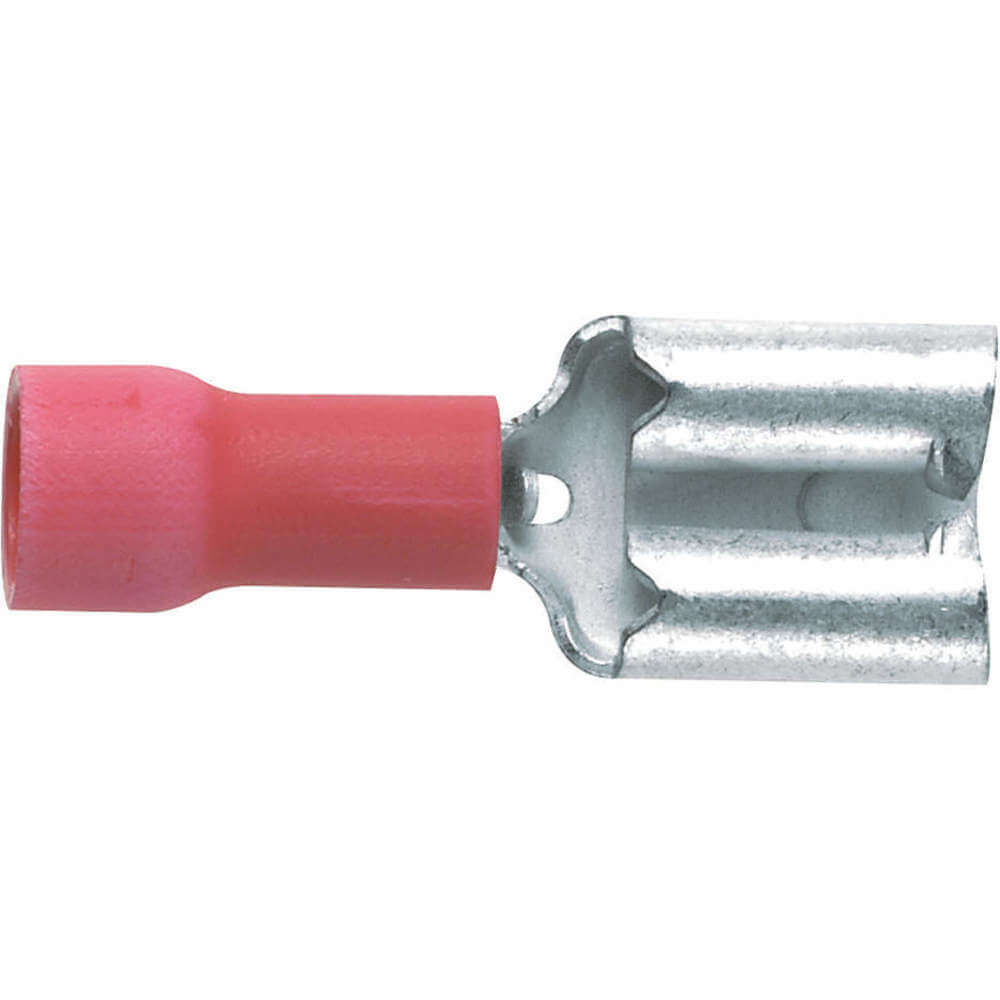

Panduit DV18-250B-MY Female Disconnect, Vinyl Barrel Insulated, Butted Seam, 22 - 18 AWG, .250 x .032" Tab Size


- Brand: Panduit
- PartNumber: DV18-250B-MY
- Model: DV18-250B-MY
- Size: 1000-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Allowable Gauge Range | 22 - 18 |
Alternate Part No. | 644-DV18-250B-MY |
Approvals | CSA, UL |
AWG Range | #18 |
Base Product Number | DV18 |
Brand | Pan-Term?, Panduit |
Category | Connectors, Interconnec. |
Color | Red |
Color Family | Red |
Connection Material | Tin-Plated Brass |
Connection Type | Crimp |
connector gender | f |
Contact Finish | Tin |
Contact Material | Brass |
Contact Plating | Tin |
Country of Origin | MX - Mexico |
Country of Origin (subj. | Unknown, Mexico |
Description | CONN QC RCPT 18-22AWG 0. |
Detailed Description | 0.250" (6.35mm) Quick C. |
Digi-Key Part Number | 298-14424-ND |
ECCN | EAR99 |
Family Series | Panduit Terminals, Pan-. |
Features | Butted Seam, Serrated T. |
Finish | Tin-Plated |
Gender | Female |
Gross Weight | 0 lbs |
Insulated | Insulated |
Insulation | Non-Mating End Insulate. |
Insulation Diameter | 0.150" (3.81mm) |
Insulation Material | Vinyl |
Insulation Type | Vinyl |
Item | Female Disconnect |
Item Number | DV18-250B-MY |
item per pack | 1 |
Length | 20.6 mm |
Length - Overall | 0.810" (20.57mm) |
Manufacturer | Panduit Corp, Panduit |
Manufacturer Part No. | DV18-250B-MY |
Manufacturer Part Number | DV18-250B-MY |
Manufacturer Product Nu. | DV18-250B-MY |
Manufacturer Standard L. | 2 Weeks |
Material | Brass |
Max Temp | 221 ?F |
Max. Temp. | 221 Degrees F |
Max. Voltage | 600 V |
Maximum Bundle Diameter | 1 mm |
Mfr | Panduit Corp |
Mounting Angle | Straight |
Mounting Method | Wire |
mounting type | inline |
Mounting Type | Free Hanging (In-Line) |
Net Weight | 0 lbs |
number of contacts | 1 |
Overall Length | 0.81 in |
package | Bulk |
Package | Bulk |
Package Quantity | 1,000 |
Packaging | 1000 per Package |
Plating Material | Tin |
Product | Disconnects |
Product Category | Terminals |
Product Series | Pan-Term Disconnects |
Product Status | Active |
Rated Voltage | 600V |
RoHS Compliant | Yes |
Seam | Butted |
Series | Pan-Term? |
Standards | CSA22.2 No. 153, UL 310 |
Stud/Tab Size | 6.3 mm x 0.8 mm |
Tab Length | - |
Tab Size | 0.25 x 0.032 ", 0.250 i. |
Tab Thickness | 0.032" (0.81mm) |
Tab Width | 0.250" (6.35mm) |
Terminal Material | Brass |
Terminal Type | Disconnect - Female, St. |
Termination | Crimp |
Termination Style | Crimp |
Type | Female Disconnect |
Unit Weight | 861.826 g |
UNSPSC | 39121409 |
UPC Code | 074983409204 |
Use With | CT-1525, CT-2300/ST (CD. |
voltage rating | 600.0 v |
Volts | 600 V |
Width | 0.29 in. |
Wire Gauge | 18-22 AWG, 22-18 |
Wire Range | 22 to 18 AWG |
Wire Size | 22-18 AWG |
Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
Wire Strip Length | 0.281 " |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
| Onlinecomponents.com | DV18-250B-MY | 0.173 | 1 | 1000 | | PANDUIT | | 0.173 @ 1000 |
  | Galco | DV18-250B-MY-PNDT | 0.24 | 1000 | 1000 | | Panduit | | 0.24 @ 1000 |
| us.rs-online.com | 71263192 | 0.25725 | 10 | 1000 | | Panduit | | 0.25725 @ 1000 |
  | Platt.com | 0513556 | 0.28 | 1 | 1000 | | Panduit | | 0.28 @ 1000 |
| Airline Hydraulics | PANDUIT DV18-250B-MY | 0.29 | 1 | 1000 | | Panduit Corp | | 0.29 @ 1000 |
  | Digi-Key | 4563772 | 0.30867 | 1000 | 1000 | | Panduit Corp | | 0.30867 @ 1000 |
  | Newark | 48AC9682 | 0.325 | 1 | 1000 | | PANDUIT | | 0.325 @ 1000 |
  | Component Electronics | 510A-64F | 0.46 | 1 | 1000 | | Panduit Corp | | 0.46 @ 1000 |
  | swatee.com | DV18-250B-MY | 0.94 | 1 | 1000 | | Panduit | | 0.94 @ 1000 |
  | Tedss | 2025007518 | 1.68 | 6 | 1000 | | PANDUIT | | 1.68 @ 1000 |
| amerisponse.com | 820981 | 191.34 | 1 | 1000 | | Panduit | | 191.34 @ 1000 |
  | Zoro | G0674670 | 208.22 | 1 | 1000 | 148 | Panduit | 1.9 | 208.22 @ 1000 |
  | alldataresource.com | PAN-DV18-250B-M | 227.98 | 1 | 1000 | | Panduit | | 227.98 @ 1000 |
| steinerelectric.com | 261210 | 234.6 | 1 | 1000 | | Panduit | | 234.6 @ 1000 |
  | Carlton Bates Company | 07498340920 | 240.0 | 1 | 1000 | | PANDUIT | | 240.0 @ 1000 |
  | gordonelectricsupply.com | DV18-250B-MY | 251.0 | 1 | 1000 | 12 | PANDUIT | | 251.0 @ 1000 |
  | turtle.com | PAN DV18-250B-MY | 280.86 | 1 | 1000 | | Panduit | | 280.86 @ 1000 |
| Graybar | 25059599 | 353.2816 | 1 | 1000 | | Panduit | | 353.2816 @ 1000 |
  | Raptor Supplies | AH8XXU | 560.1834225 | 1 | 1000 | | PANDUIT | | 560.1834225 @ 1000 |
