- mpnLCC2-38-Q
- brandname: Panduit
- manufacturername: Panduit

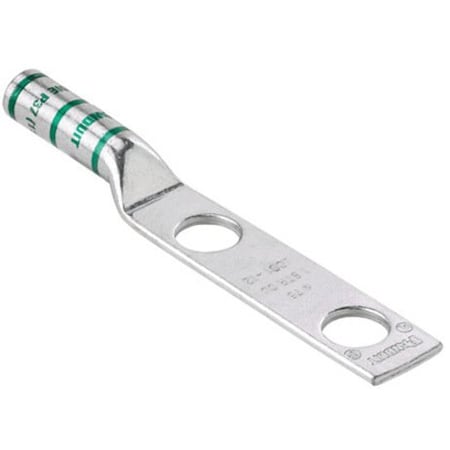

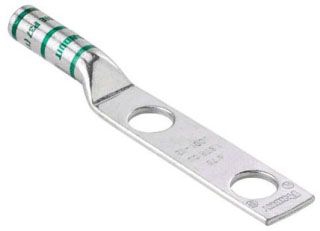

Panduit LCC2-38-Q Code Conductor Copper Compression Lug, 2 Hole, #2 AWG, 3/8-Inch Stud, 1.75-Inch Hole Spacing
- Brand: Panduit
- PartNumber: LCC2-38-Q
- Model: LCC2-38-Q
- Color: Brown
- Size: 3/8-Inch Stud Hole, 1.75-Inch Hole Spacing
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 2 |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Length (In.) | 1.16 |
| Barrel Length (mm) | 29.5 |
| Barrel Type | Long Barrel Length with. |
| Base Material | Copper |
| Base Product Number | LCC2 |
| Brand | Panduit, Pan-Lug? |
| Burndy Die Index Number | 10 |
| Buy American Compliant | Y |
| Cable Size | 2 AWG |
| Catalog Number | LCC2-38-Q |
| Category | Connectors, Interconnec. |
| Color | Brown |
| Color Code | Brown |
| Color Family | Brown |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Copper Code Conductor S. | 2 |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| Description | CONN TERM RECT TONG 2 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.310" (7.87mm) |
| Diameter - Barrel OD | 0.420" (10.67mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Die Color | Brown |
| Digi-Key Part Number | 298-14818-ND |
| EAN | 00074983382484 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Gross Weight | 1.85 lbs |
| GTIN | 00074983382484 |
| GTIN Package | 00074983382484 |
| Hazardous Material Flag | N |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCC2-38-Q |
| Item Type | Copper Compression Conn. |
| Length | 4.09" |
| Length - Overall | 4.090" (103.89mm) |
| Lug Wire Size | 2 AWG |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCC2-38-Q |
| Manufacturer Product Nu. | LCC2-38-Q |
| Manufacturer Standard L. | 4 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 2 AWG |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Conductor Range | 2 AWG |
| Min Order Qty | 25 |
| Min. Order UOM | Piece |
| Mounting | 2-Hole, 1.25 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Overall Length (In.) | 4.09 |
| Overall Length (mm) | 103.9 |
| Package | Bulk |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P33 |
| Product Segment | IEI |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Copper Compression Conn. |
| REACH Status | False |
| RoHS Compliant | Compliant, Yes |
| Series | Pan-Lug? |
| Size | #2 AWG Code |
| Special Features | Consult cable manufactu. |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.0370 |
| Standard Package Weight. | 1.8500 |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.3 |
| Std Package Height MM | 83.82 |
| Std Package Length In | 5.7 |
| Std Package Length MM | 144.78 |
| Std Package Width In | 3.4 |
| Std Package Width MM | 86.36 |
| Std. Pkg. Qty. | 25 |
| Std. Pkg. UOM | Piece |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing | 1.75 in. |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Stud Size | 3/8 in, 44628 |
| Stud/Tab Size | 3/8 Stud |
| Sub Brand | Pan-Lug, Pan-Lug? |
| Tab Thickness | 0.100" (2.54mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| UL Temperature Rating (. | 90 |
| UNSPSC | 39121405 |
| UOM EA PK | PK |
| UPC | 074983382484, 074983382. |
| Width | 0.66" |
| Width - Outer Edges | 0.660" (16.76mm) |
| Wire Gauge | 2 AWG |
| Wire Strip Length (In.) | 1.25 |
| Wire Strip Length (mm) | 31.8 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCC2-38-Q | 6.02 | 1 | In Stock | | PANDUIT | | 6.02 @ 1 |
 | French Gerleman | PANDLCC238Q | 7.03 | 1 | In Stock | | Panduit | | 7.03 @ 1 |
 | alldataresource.com | LCC2-38-Q | 7.99 | 1 | In Stock | | Panduit | | 7.99 @ 1 |
 | mayerelectric.com | PANLCC238Q | 9.0676 | 1 | 15 | | PANDUIT | 1.85 | 9.0676 @ 1 |
 | Digi-Key | 4565429 | 10.85 | 1 | 2 | | Panduit Corp | | 10.85 @ 1 |
| Onlinecomponents.com | LCC2-38-Q | 11.03 | 1 | In Stock | | Panduit | | 11.03 @ 1 |
 | Newark | 72AC7920 | 11.56 | 1 | 20 | | PANDUIT | | 11.56 @ 1 |
 | Zoro | G0425109 | 12.54 | 1 | In Stock | 15 | Panduit | 1.85 | 12.54 @ 1 |
 | Galco | LCC2-38-Q-PNDT | 13.39 | 25 | In Stock | | Panduit | 1.85 | 13.39 @ 25 |
 | Platt.com | 0690418 | 14.24 | 1 | In Stock | | Panduit | | 14.24 @ 1 |
 | crescentelectric.com | 263297 | 15.24 | 1 | In Stock | | Panduit | | 15.24 @ 1 |
| Airline Hydraulics | PANDUIT LCC2-38-Q | 16.13 | 1 | In Stock | | Panduit Corp | | 16.13 @ 1 |
 | Carlton Bates Company | 07498338248 | 286.25 | 1 | In Stock | | PANDUIT | | 286.25 @ 1 |
 | gordonelectricsupply.com | LCC2-38-Q | 352.5 | 1 | In Stock | 12 | PANDUIT | | 352.5 @ 1 |
 | turtle.com | PAN LCC2-38-Q | 1577.22 | 1 | In Stock | | Panduit | | 1577.22 @ 1 |
| Graybar | 22072191 | 1763.832 | 1 | 30 | | Panduit | | 1763.832 @ 1 |
