Panduit PV10-10F-E

B008ZTA2C4

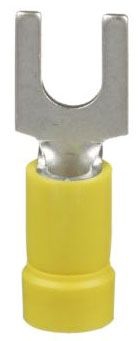

Panduit PV10-10F-E Fork Terminal, Funnel Entry, 14 - 10 AWG, #10 Stud Size, Vinyl Insulated

Panduit PV10-10F-E Fork Terminal, Funnel Entry, 14 - 10 AWG, #10 Stud Size, Vinyl Insulatedzoom

Attributes

Key Value
ApprovalsCSA, UL
Base Product NumberPV10
CategoryConnectors, Interconnec.
ColorYellow
Connection MaterialCopper
Connection TypeCrimp
Contact FinishTin
Contact MaterialCopper
Country of Origin (subj.Mexico
Family SeriesPanduit Terminals, Pan-.
FeaturesBrazed Seam Protects Te.
Gross Weight0 lbs
InsulatedInsulated
InsulationInsulated
Insulation ColorYellow
Insulation Diameter0.225" (5.72mm)
Insulation MaterialVinyl
Insulation TypeVinyl
ItemFork Terminal
Item NumberPV10-10F-E
Length - Overall1.040" (26.42mm)
Length - Ring Center to.-
Length - Termination-
ManufacturerPanduit
Manufacturer Part NumberPV10-10F-E
Material - InsulationVinyl
Max Temp221 ?F
Max. Temp.221 Degrees F
Max. Voltage600 V
MfrPanduit Corp
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Overall Length1.04 in
PackageBulk
Package Quantity20
Part StatusActive
Plating MaterialTin
Product SeriesPan-Term Terminals
Product StatusActive
RoHS CompliantYes
SeamBrazed
SeriesPan-Term?
StandardsAmerican Bureau of Ship.
Stud Size#10
Stud/Tab Size10 Stud
Terminal ConnectionCrimp
Terminal MaterialCopper
Terminal TypeSpade/Fork, Standard
TerminationCrimp
Tongue Inside Opening0.200" (5.08mm)
Tongue Width - Wire Con.0.37 in
UPC Code074983344246
Volts600 V
Width - Outer Edges0.370" (9.40mm)
Wire Gauge10-12 AWG
Wire Range14 to 10 AWG
Wire Size12-10 AWG
Wire Size (AWG)10 AWG, 11 AWG, 12 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPV10-10F-E0.931140PANDUIT0.93 @ 20
thumbzoomGalcoPV10-10F-E-PNDT0.9710020Panduit0.97 @ 100
us.rs-online.com712639541.1675610020Panduit1.16756 @ 100
Airline HydraulicsPANDUIT PV10-10F-E1.17120Panduit Corp1.17 @ 20
thumbzoomRadwellPV10-10F-E1.22020PANDUIT1.2 @ 20
Digi-Key45638191.3381200Panduit Corp1.338 @ 20
thumbzoomZoroG064040721.9512023Panduit21.95 @ 20
thumbzoomalldataresource.com1004483722.77120Panduit22.77 @ 20
thumbzoomRaptor SuppliesAH8YCH67.041120PANDUIT67.041 @ 20
thumbzoomgordonelectricsupply.comPV10-10F-E102.0912012PANDUIT102.09 @ 20
thumbzoomturtle.comPAN PV10-10F-E114.4120Panduit114.4 @ 20
