- mpnPV6-38RX-T
- brandname: Panduit Corp
- manufacturername: Panduit Corp

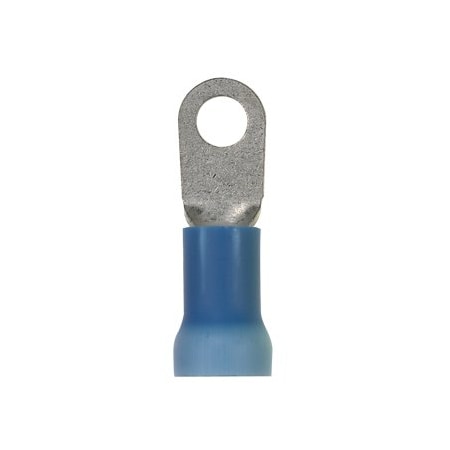

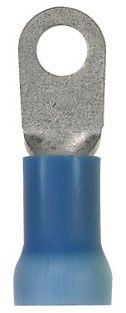

PV6-38RX-T, Ring Terminal, Large Wire, 6 AWG, 3/8" Stud Size, Vinyl expanded Insulation, Bulk Package. (25 Items)
- Brand: Panduit
- PartNumber: PV6-38RX-T
- Model: PV6-38RX-T
- Color: Blue
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Alternate Part No. | 644-PV6-38RX-T |
| Approvals | CSA, UL |
| AWG Range | #6 |
| Base Product Number | PV6 |
| Brand | Pan-Term?, Panduit |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Color Family | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| Finish | Tin-Plated |
| Gauge | 6 |
| Gender | Female |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.436" (11.07mm) |
| Insulation Material | Vinyl |
| Item Number | PV6-38RX-T |
| Length | 43.94 mm |
| Length - Overall | 1.730" (43.94mm) |
| Manufacturer | Panduit |
| Manufacturer Part No. | PV6-38RX-T |
| Manufacturer Part Number | PV6-38RX-T |
| Material | Copper, Vinyl, Copper |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Angle | Straight |
| Mounting Method | Wire |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Outer Diameter | 0.44 in. |
| Package | Bulk |
| Package Quantity | 200 |
| Part Status | Active |
| Plating Material | Tin |
| Product | Ring Terminals |
| Product Category | Terminals |
| Product Series | Pan-Term Terminals |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Stud Size | 3/8 in, 3/8 in. |
| Stud/Tab Size | 3/8 in, 3/8 Stud |
| Terminal Material | Copper |
| Terminal Type | Flat Sided, Ring |
| Termination | Crimp |
| Termination Style | Crimp |
| Thickness | 0.045" (1.14mm) |
| Type | Terminals |
| Unit Weight | 1.052 kg |
| UNSPSC | 39121409 |
| Use With | CT-720 (CD-720PV8-2); C. |
| Volts | 600 V |
| Width | 0.62 in, 0.62 in. |
| Width - Outer Edges | 0.620" (15.75mm) |
| Wire Gauge | 6 AWG, 6 |
| Wire Size | 6 AWG |
| Wire Size (AWG) | 6 AWG |
| Wire Strip Length | 0.438 " |
