- mpn1832552
- brandname: Phoenix Contact
- manufacturername: Phoenix Contact

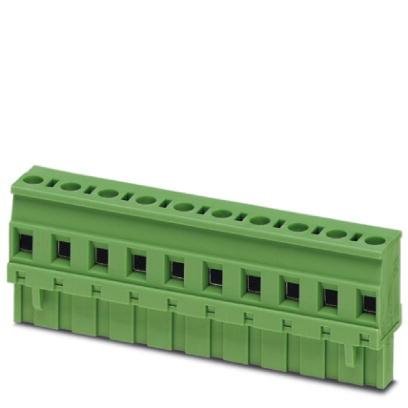

Pluggable Terminal Blocks GMVSTBR 2 5/ 5-ST-7
- Brand: PHOENIX VITAL LIFE
- PartNumber: 1832552
Attributes
| Key | Value |
|---|
| Alternate Part No. | 651-1832552 |
| Brand | Phoenix Contact |
| Category | Connectors, Interconnec. |
| Color | Green |
| Connection Method | Screw |
| Contact Material | Tin, - |
| Contact Mating Finish | Tin |
| Contact Plating | Tin |
| Contact Tail Length | - |
| Current - IEC | 12A |
| Current - UL | 15 A |
| Current Rating | 12A, 12 A |
| Features | Retention Latches (Wire. |
| Header Orientation | - |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | - |
| Insulation Height | 1.024" (26.01mm) |
| Manufacturer | Phoenix Contact |
| Manufacturer Part No. | 1832552 |
| Material Flammability R. | UL94 V-0 |
| Mfr | Phoenix Contact |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts | 5 |
| Number Of Contacts | 5 |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Operating Temperature | - |
| Package | Bulk |
| Part # Aliases | GMVSTBR_2,5/_5-ST-7,62 . |
| Pitch | 0.300" (7.62mm), 7.62mm. |
| Plug Wire Entry | 90? |
| Positions Per Level | 5 |
| Product | Plugs |
| Product Category | Pluggable Terminal Bloc. |
| Product Status | Active |
| Screw Size | M3 |
| Series | GMVSTBR, GMVSTBR 2.5/ 5. |
| Termination | Screw |
| Termination Method | Screw |
| Termination Style | Screw - Rising Cage Cla. |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-. |
| Tradename | COMBICON Control |
| Type | Plug, Connector, Plug, . |
| Unit Weight | 168 g |
| UPC Code | 4017918121945 |
| Voltage - IEC | 1 kV |
| Voltage - UL | 300 V |
| Voltage Rating | 630 V, 1 kV, 500 V |
| Wire Gauge or Range - A. | 12-30 AWG |
| Wire Gauge or Range - m. | 0.2-2.5mm? |
| Wire Gauge Range | 24-12 |
| Wire Size | 12 AWG |
| Wire Strip Length | 7mm |
| Wire Termination Type | Screw |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Radwell | 1832552 | 8.14 | 50 | In Stock | | PHOENIX CONTACT | | 8.14 @ 50 |
| TTI | 1832552 | 10.14 | 1 | 31 | | Phoenix Contact | | 10.14 @ 1 |
| MRO Stop | 753001768 | 10.28 | 1 | In Stock | | Phoenix Contact | | 10.28 @ 1 |
| Airline Hydraulics | PHOENIX 1832552 | 10.68 | 1 | 42 | | Phoenix Contact | | 10.68 @ 1 |
| us.rs-online.com | 71549727 | 11.49 | 50 | In Stock | | Phoenix Contact | | 11.49 @ 50 |
 | swatee.com | 1832552 | 12.9 | 1 | 24 | | Phoenix Contact | | 12.9 @ 1 |
| Digi-Key | 3605732 | 13.29 | 1 | 50 | | Phoenix Contact | | 13.29 @ 1 |
 | RS Delivers | 882-1048 | 487.068 | 1 | In Stock | | Phoenix Contact | | 487.068 @ 1 |
