Pulse Electronics P0597NLT

mpnP0597NLT
brandname: Pulse Electronics Power
manufacturername: Pulse Electronics Power

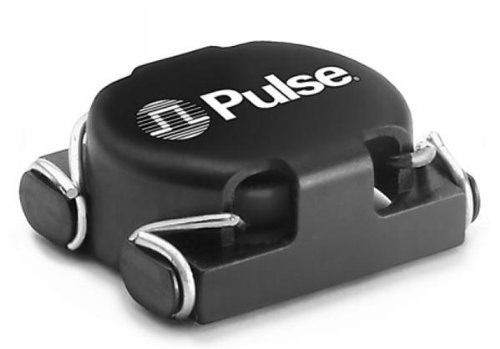

P0597NLT, Inductor Power Wirewound 5.7uH/22.8uH 15% 27A/13.5A 2.5mOhm/10.1mOhm DCR T/R (10 Items)

P0597NLT, Inductor Power Wirewound 5.7uH/22.8uH 15% 27A/13.5A 2.5mOhm/10.1mOhm DCR T/R (10 Items)

zoom

Brand: Pulse Electronics
PartNumber: P0597NLT
Model: P0597NLT
PackageQuantity: 1
Manufacturer: Pulse Electronics
Label: Pulse Electronics

Attributes

Key	Value
Category	Inductors, Coils, Chokes
Current Rating - Parall.	27A, 27 A
Current Rating - Series	13.5 A, 13.5A
DC Resistance (DCR) - P.	2.5mOhm Max
DC Resistance (DCR) - S.	10.1mOhm Max
Description	INDUCT ARRAY 2 COIL 5.7.
Detailed Description	Unshielded 2 Coil Induc.
Digi-Key Part Number	553-2074-2-ND - Tape & .
Height	0.500" (12.70mm)
Inductance - Connected .	5.7, 2.45 ?H, 5.7 ?H
Inductance - Connected .	22.8, 22.8 ?H, 9.8 ?H
Manufacturer	Pulse Electronics
Manufacturer Part Number	P0597NLT
Manufacturer Product Nu.	P0597NLT
Manufacturer Standard L.	14 Weeks, 11 Weeks
Mfr	Pulse Electronics, Puls.
Mounting Type	Surface Mount
Number of Coils	2
Operating Temperature	-40?C ~ 130?C, -40
Package	Tape & Reel (TR)
Package / Case	Nonstandard
Packaging	Tape & Reel (TR)
Part Status	Active
Product Status	Active
Ratings	-
RoHS Status	RoHS Compliant
Series	HCCI-80
Shielding	Unshielded
Size / Dimension	1.220" L x 1.000" W (30.
Standard Package	75
Tolerance	?15%

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	iodParts	P0597NLT	2.169	150	600		Pulse		2.169 @ 150
	Waldom	PULSE ELECTRONICS P0597NLT	2.28	75	375		PULSE ELECTRONICS		2.28 @ 75
	Newark	55AK0621	3.3	750	25		PULSE		3.3 @ 25
	Digi-Key	2266911	6.04464	1	110		Pulse Electronics		6.04464 @ 25
