Square D by Schneider Electric QO130L200PG

B00CONIENG

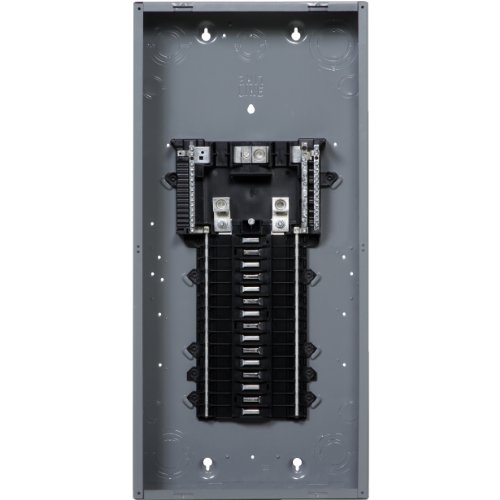

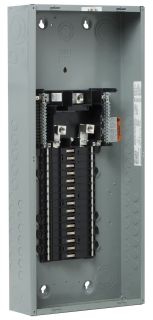

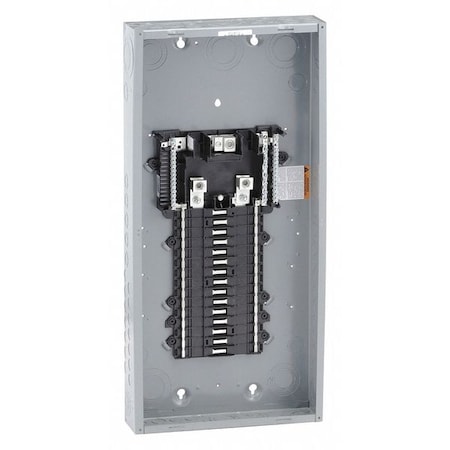

Square D - QO130L200PG 200-Amp 30-Space 30-Circuit Indoor Main Lug Plug-On Neutral Load Center with Ground Bar

Square D - QO130L200PG 200-Amp 30-Space 30-Circuit Indoor Main Lug Plug-On Neutral Load Center with Ground Barzoom

Attributes

Key Value
Additional FeaturesPlug-On Neutral, Conver.
Amperage Rating200, 200 A
Amps200 A
AWG RangeAWG 6...250 kcmil Alumi.
BrandSquare D by Schneider E.
Breaker MountingPanel
Breaker TypeQO
Bus MaterialTin Plated Copper
Catalog NumberQO130L200PG
Circuit Breaker TypeQO
ColorBaked Enamel Gray
Color FamilyGray
ConfigurationOpen-Frame
Country of OriginUnited States, US - Uni.
Cover TypeOrder Separately
Current Rating200 A
Depth3 3/4 in
Dimensions14.25 in W x 3.75 in D .
ECCNEAR99
Enclosure Box Size9
Enclosure MaterialSteel
Enclosure NEMA Rating1
Enclosure TypeNEMA 1
For Use WithSquare D QO Circuit Bre.
Frequency Rating50/60, 50/60 Hz
Height758 mm, 29.84 in
Housing materialSteel
Included Enclosure CoverOrder Separately
Interrupt Rating65, 65 kA
ItemLoad Center
Made in USAYes
Main Circuit Breaker or.Convertible, Main Lug
Main TypePoN Convertible Mains (.
ManufacturerSchneider Electric
MaterialTin Plated Copper Busbar
Max. No. of Tandem Brea.10
Max. Single Pole Circui.30
Max. Tandem Circuits0
Min. Operating Temp.23 Degrees F
Mounting typePlug-On
No. of Circuits40
No. of Spaces30
No. of Wires3-Wire
Number of Circuits30
Number of Poles1
Number of Spaces30
Phase1, 1 Phase
Rated Current200A
Recommended Flush Cover1D435
Recommended Ground Bar .Included
Recommended Surface Cov.1D436
SeriesQO Series, QO
Short Circuit Current R.65kA
Special FeaturesMercury Free
StandardsRoHS Compliant, UL List.
Type1-Phase Convertible Neu.
UNSPSC39121101
UPC785901219248
UPC Code785901219248
Voltage120/240V AC
Voltage Rating120/240, 120/240 VAC, 1.
Warranty DescriptionContractual Warranty:18.
Width14.25 in
Wire Size6 AWG to 250 kcmil
Wiring Configuration3-Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Home Depot204246781102.181In StockSquare D102.18 @ 1
thumbzoomgordonelectricsupply.comQO130L200PG130.091In StockSQUARE D130.09 @ 1
thumbzoomZoroG6127055136.591In StockSquare D16.8136.59 @ 1
thumbzoomstandardelectricsupply.com2393547138.031In StockSquare D (Schneider Electric)138.03 @ 1
AmazonTPB00CONIENG140.561In StockSquare D by Schneider Electric140.56 @ 1
thumbzoomsustainablesupply.comC1187036154.841In StockSquare D16.8154.84 @ 1
thumbzoomRadwellQO130L200PG175.01In StockSCHNEIDER ELECTRIC SQUARE D175.0 @ 1
thumbzoomebay.com_emergencymedicaltecnitionQO130L200PG199.991In StockSquare D199.99 @ 1
us.rs-online.com70920825291.231In StockSquare D291.23 @ 1
thumbzoomebay.com_coho_liquidationQO130L200PG300.01In StockSquare D300.0 @ 1
thumbzoomUnited Electric508648638.3119Schneider Electric638.31 @ 1
Graybar25477483769.78721In StockSquare D (Schneider Electric)769.7872 @ 1
thumbzoomcrescentelectric.com124853779.7919Square D by Schneider Electric779.79 @ 1
