SIEMENS B115H00S01

B007ICM06K

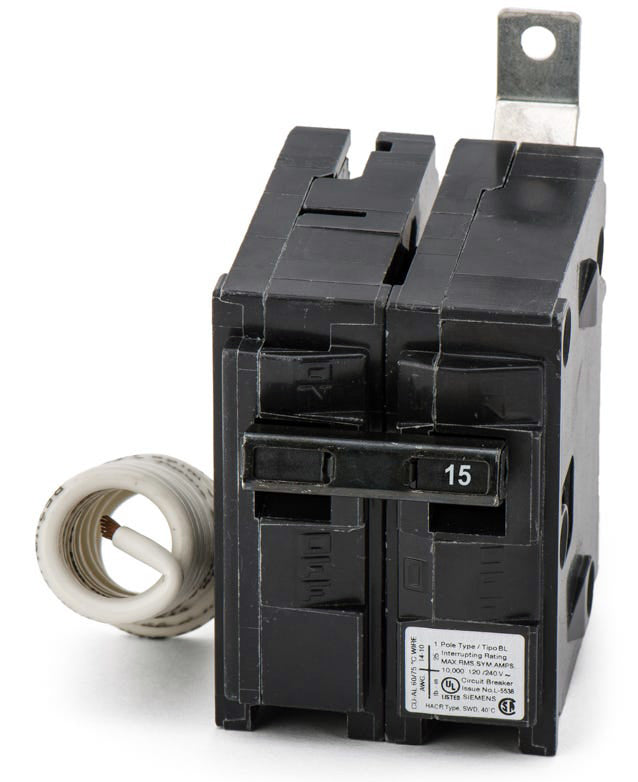

Siemens - B115H00S01 - Miniature Circuit Breaker, Amps 15, Circuit Breaker Type Shunt Trip, Number of Poles 1

Siemens - B115H00S01 - Miniature Circuit Breaker, Amps 15, Circuit Breaker Type Shunt Trip, Number of Poles 1zoom

Attributes

Key Value
AC Voltage Rating120/240V AC
Actuator TypeToggle
Amperage15
Amps15 A
ApplicationElectrical Distribution
BrandSiemens
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeShunt Trip
Connection TypeBolt-On
Continuous current / ra.15 A
Country of OriginMX
DC Voltage RatingNot Rated
Depth6 in
Design of the overload .THERMAL-MAGNETIC
Design of the product:BLH
Electrical accessories:120VSHUNTTRIP
Estimated Weight1.00
FeaturesShunt Trip 120V
For Use WithP1 Panelboards, Siemens.
Frame Size125A/BLH
Frame TypeB
FunctionsLong Time and Instantan.
Height4 in
Height [in]:3.5625 in
Interrupting Rating22kA at 120VAC
ItemMiniature Circuit Break.
Length4 in
Length (Straight Wirewa.4.0 in
ManufacturerSiemens Industry, Inc.,.
Max Wire Size10 AWG
Max. AIR Rating22kA at 120V AC
Max. Wire Size10 AWG
Min Wire Size12 AWG AL, 14 AWG CU
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
MountingBolt On
Mounting TypePanelboard
MpnB115H00S01
Number of Poles1
Number Of Poles:1
Part NumberB115H00S01
Phase1
Poles1
ProtectionThermal Magnetic
SeriesBL
Size of the circuit-bre.BL(125A)
Standard:ULLISTED/CSA/NOMCERTIFI.
StandardsUL, UL Listed
Suitability for operati.ELECTRICALDISTRIBUTION
Supply voltage frequenc.TRUE
Temperature Rating40?C
Terminal ConnectionLoad side lug, Lug
UNSPSC39121601
UPC783643269040
Upc783643269040
Voltage120/240VAC
Voltage / between phase.120 V
Width4 in
Width [in]:2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com69612097.71In StockSiemens97.7 @ 1
Dale-ElectricB115H00S01185.481In StockSiemens Industry, Inc.185.48 @ 1
thumbzoomsuperbreakers.comB115H00S01201.611Siemens201.6 @ 1
Onlinecomponents.comB115H00S01265.851In StockSiemens265.85 @ 1
thumbzoomindustrialzone.comB115H00S01280.211In StockSiemens0.99280.21 @ 1
simplybreakers.comB115H00S01311.991In StockSiemens311.99 @ 1
thumbzoomZoroG2301993312.991In StockSiemens0.83312.99 @ 1
thumbzoommotorsandcontrol.comB115H00S01384.221In StockSiemens1.0384.22 @ 1
thumbzoomsustainablesupply.comC2927923398.051In StockSiemens0.83398.05 @ 1
thumbzoomturtle.comITE B115H00S01562.091In StockSiemens562.09 @ 1
