- mpnKQ2LF03-35A
- brandname: SMC Corporation
- manufacturername: SMC Corporation

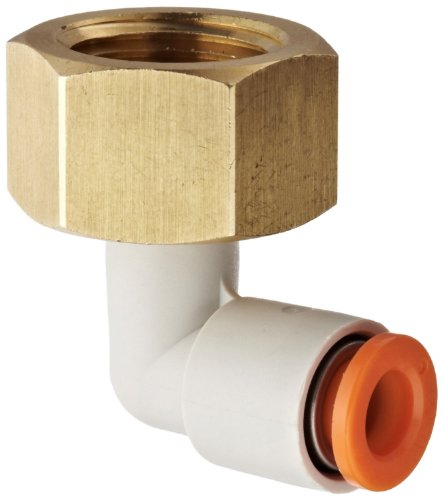

SMC KQ2LF03-35A PBT & Brass Push-to-Connect Tube Fitting, 90 Degree Elbow, 5/32" Tube OD x 1/4" NPT Female
- Brand: SMC
- PartNumber: KQ2LF03-35A
- Model: KQ2LF03-35A
- Color: White
- Size: 5/32" Tube OD x 1/4" NPT Female
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: SMC Corporation of America
- Label: SMC Corporation of America
Attributes
| Key | Value |
|---|
| Applicable tubing O.D. | 03 (5/32 in) |
| Application | Air, Non-Potable Water,. |
| Basic Material | Plastic |
| Body Material | Polybutylene Terephthal. |
| Brand | Smc |
| Color | White |
| Colour | White |
| Compatible Fluid | Water / Air |
| Compatible Tube Material | FEP, Nylon, PFA, Polyur. |
| Connection Type | Tube x FNPT |
| Current Stock | 47 |
| Fitting Material | Brass |
| Fitting Pipe Size | 1/4 in |
| Fitting Side A Connecti. | Push-to-Connect |
| Fitting Side A Tube Out. | 5/32 in |
| Fitting Side B Connecti. | FNPT |
| Fitting Side B Pipe Size | 1/4 in |
| Fittings Sub-Category | Elbows |
| For Tube Outside Diamet. | 5/32 in |
| Gender | Female |
| Hex Size | 11/16 in |
| Includes Pre-Applied Th. | No |
| International Shipping | No |
| Item | Female Elbow |
| Lead Time | Expected to ship in 1-2. |
| Max. Pressure | 145 psi |
| Maximum Operating Press. | 145 psi |
| Maximum Operating Tempe. | 140 Degrees F, 140 Deg. |
| Minimum Operating Tempe. | 41 Degrees F |
| Model | LF (female elbow) |
| Mpn | KQ2LF03-35A |
| Overall Length | 26 29/32 mm |
| Pipe Size | 1/4 in |
| Port Size | 0.25 in |
| Port size/applicable tu. | 35 (NPT 1/4 in) |
| Release Type | Button |
| Series | KQ2 Series |
| SKU | ZO-G5050017 |
| Specific Fitting Shape | 90 Degrees Elbow Adapt. |
| Standards | ANSI/ASME1.20.1, RoHS, . |
| System of Measurement | Imperial |
| Temp. Range | 23 Degrees to 140 Degr. |
| Thread material/surface. | A (Brass) |
| Thread Type | NPT |
| Tube Size | 5/32 in., 5/32 in |
| Type | One-Touch / Screw, Elbow |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6450140 | 3.63 | 15 | 27 | | SMC | | 3.63 @ 15 |
 | Zoro | G5050017 | 5.09 | 1 | 46 | | Smc | 0.07 | 5.09 @ 1 |
| grainger.ca | WWG36X179 | 5.2258032 | 1 | 27 | | SMC | 0.07 | 5.2258032 @ 1 |
| Airline Hydraulics | SMC KQ2LF03-35A | 5.7 | 1 | 367 | | SMC | | 5.7 @ 1 |
| ipneumatics.com | KQ2LF03-35A | 5.7 | 1 | 454 | | SMC | | 5.7 @ 1 |
| cmafh.com | KQ2LF03-35A | 5.7 | 1 | In Stock | | SMC | | 5.7 @ 1 |
 | kinequip.com | KQ2LF03-35A | 5.7 | 1 | 407 | | SMC | | 5.7 @ 1 |
| cbtcompany.com | KQ2LF03-35A | 5.7 | 1 | In Stock | | SMC | | 5.7 @ 1 |
| us.rs-online.com | 71285921 | 5.7 | 10 | 27 | | SMC Corporation | | 5.7 @ 10 |
| smcpneumatics.com | KQ2LF03-35A | 5.7 | 10 | 427 | | SMC | | 5.7 @ 10 |
 | Misumi USA | KQ2LF03-35A | 6.05 | 1 | In Stock | 24 | SMC | | 6.05 @ 1 |
 | sustainablesupply.com | C1942105 | 6.55 | 1 | 27 | | SMC | 0.07 | 6.55 @ 1 |
 | Raptor Supplies | AC7AAP | 8.0337465 | 1 | In Stock | | SMC VALVES | | 8.0337465 @ 1 |
| simsupply.com | ZO-G5050017 | 12.0 | 1 | 47 | | Smc | | 12.0 @ 1 |
