Smith Bearing CR-1-X

B00MHRWCTG

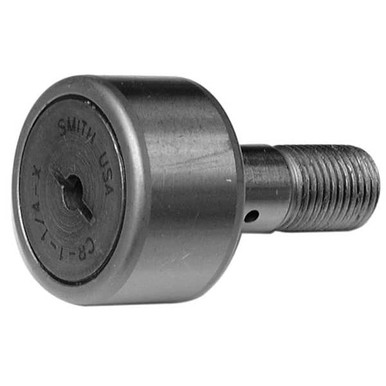

Smith Bearing CR-1-X Cam Follower Needle Roller Bearing, Regular Stud with Screwdriver Slot, Sealed, 1.000", Model Number: SMI CR-1-X

Smith Bearing CR-1-X Cam Follower Needle Roller Bearing, Regular Stud with Screwdriver Slot, Sealed, 1.000", Model Number: SMI CR-1-Xzoom

Attributes

Key Value
Basic Dynamic Rating (l.3030
Bearing MaterialAlloy Steel
Bearing Material GradeAISI 52100
Bearing TypeNeedle Roller,Sealed, N.
BrandSmith Bearing
ClosureDouble Sealed
Current Stock197
Drive LocationStud
Drive TypeSlotted
Duty TypeStandard
Dynamic Radial Load Cap.3,030 lbf
Eff. Thread Min.1/2
Face DesignScrewdriver Slot
FeaturesScrewdriver Slot Stud T.
Flange DiameterNot Applicable
Flange ThicknessNot Applicable
International ShippingNo
ItemCam Follower
Load DirectionRadial
Lube Fitting Size3/16
Lubrication OpeningsOiler Hole
Max. Static Capacity (l.3100
Maximum Temperature250 Degrees F
Min. Boss Dia.5/8
Minimum Temperature-30 Degrees F
MpnCR-1-X
Oil Hole Dia.3/32
Oil Hole Location1/4
Overall Length1 21/32 in
Recom. Bore.4375
Recom. Torque (lbs-in)350
Roller Dia.1.0 in
Roller Dia. (In.)1.0000
Roller Diameter1 in
Roller Head TypeFlat
Roller MaterialAlloy Steel
Roller Material Grade52100
Roller O.D.1.000
Roller O.D. Tolerance+.000/-.001
Roller ShapeFlat
Roller StyleStud
Roller TypeScrewdriver Slot Head
Roller Width.625, 0.625 in, 5/8 in
Roller Width (In.)0.6250
Roller Width Tolerance+.000/-.005
Rolling Element Rows1
Seal MaterialMolded Acetyl
Seal TypeContact
SKUZO-G4212652
SMITH Bearing NumberCR-1-X
StandardsABMA
Static Radial Load Capa.3,100 lbf
Stud Dia..4375, 0.4375 in
Stud Dia. (In.)0.4375
Stud Dia. Tolerance+.001/-.000
Stud Diameter7/16 in
Stud Length1, 1.0 in, 1 in
Stud Length (In.)1.000
Stud MaterialCarbon Steel
Stud Thread Length1/2 in
Stud Thread Size7/16"-20
Stud TypeConcentric
SubCategoryPower Transmission
System of MeasurementInch
Thread Length (In.)0.5 in
Thread Size7/16-20
Thread U.N.F. Class 2A7/16-20
TypeStud

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply278855415.563In StockSmith Bearings15.56 @ 3
thumbzoomZoroG421265217.891363Smith Bearing0.1517.89 @ 1
thumbzoomsimsupply.comZO-G421265227.151197Smith Bearing27.15 @ 1
motionindustries.com0009610229.321In StockSmith Bearing Company29.32 @ 1
thumbzoomsustainablesupply.comC165824030.491In StockSmith Bearing0.1530.49 @ 1
grainger.caWWG13W68735.571752061In StockSMITH BEARING0.1535.57175206 @ 1
thumbzoomRaptor SuppliesAA6FTR55.99040851In StockSMITH BEARING55.9904085 @ 1
