Square D 9013GHG2J56

B00CON8AA8

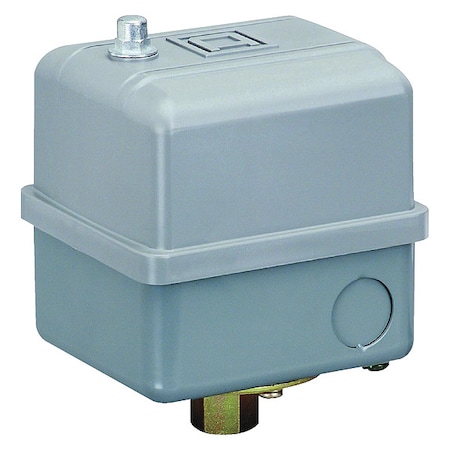

Square D by Schneider Electric 9013GHG2J56 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 110-150 psi Points

Square D by Schneider Electric 9013GHG2J56 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 110-150 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Adjustable Range On Ris.65-200 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApprovalsCSA, UL
Approximate Adjustable .20-40 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
CategoryIndustrial Automation a.
Circularity ProfileENVEOLI111210EN
Connection type1/4 in NPSF Screw Clamp
Contact Configuration2NC DPST-DB, 2NC/DPST-DB
Contact Rating5 hp at 575 VAC
Contact TypeDPST
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Country of Origin (subj.Mexico
Depth3.88 in
Destruction Pressure300 psi
Differential20 to 40, 20 to 40 psi
Dimensions5.4 in H x 3.44 in W x .
Electrical Circuit Typepower circuit
Electrical ConnectionScrew Terminals, screw-.
Electrical Durability100000 cycles 10 cyc/mn
Enclosure RatingNEMA 1
Enclosure TypeIP20/NEMA 1, NEMA 1/IP20
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Pressure Switc.
Fluid Connection Type0.25 inch NPSF internal.
Gauge Proof Pressure500 psig
Gross Weight0 lbs
Height5.4 in
Housing materialThermoplastic
Increasing Pressure65-200 psi
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemPressure Switch
Item Number9013GHG2J56
Local Displaywithout
ManufacturerSquare D
Manufacturer Part Number260075
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Maximum Pressure300, 300 psi
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Nema Degree Of Protecti.NEMA 1 UL 50
Net Weight2.25 lb(US), 2.25 lbs
Operating Cycles60, 60 cpm
Operating Positionany position
PackageBox
Port Connection1/4 NPT Female
Pressure Actuatordiaphragm
Pressure Rating40 to 170, 40 to 170 ps.
Pressure Sensor Name9013GH
Pressure Sensor Size200 psi 40-170 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.20 to 40 psi
Pressure Switch Electri.DPST
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range65 to 200 psi
Pressure Switch Type Of.regulation between 2 th.
Product CertificationsUL listed file E12158 |.
Product Series9013G
Product Specific Applic.control electrically dr.
Product StatusActive
Protective Treatmentnone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013GH, -
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
StandardsUL 508 || CE || NSF ANS.
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-33 to 257, -33 to 257 .
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
TypePump Switch, Adjustable.
Type of CircuitNormally Closed
Type Of Packingindividual
Value Of Setting110...150 psi
Warranty18 months
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialstores.com9013GHG2J5624.641In Stock10Square D24.64 @ 1
thumbzoommidwestapplianceparts.com9013GHG2J56-SQ-P31.851In StockSquared31.85 @ 1
thumbzoomcappusa.com481024364.551In StockSquare D64.55 @ 1
thumbzoomGalco9013GHG2J56-SQD74.511In StockSquare D2.2574.51 @ 1
thumbzoomZoroG085209675.291In Stock35Square D2.0175.29 @ 1
thumbzoomgordonelectricsupply.com9013GHG2J5678.091In Stock10SQUARE D78.09 @ 1
Onlinecomponents.com9013GHG2J5680.41In StockSquare D80.4 @ 1
thumbzoommayerelectric.comSQD9013GHG2J5684.31In StockSQUARE D2.2584.3 @ 1
thumbzoomsustainablesupply.comC304563998.851In StockSquare D2.0198.85 @ 1
Digi-Key16378499103.381In StockSchneider Electric103.38 @ 1
thumbzoomstandardelectricsupply.com307695136.631In StockSquare D (Schneider Electric)136.63 @ 1
thumbzoommostelectric.com9013GHG2J56150.121In StockSQUARE D/TELEMECANIQUE150.12 @ 1
