Schneider Electric 9013GHG2J58

B000CG6G2I

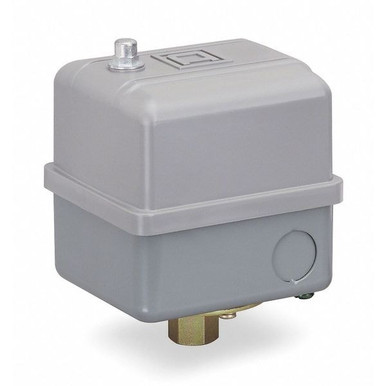

Square D by Schneider Electric 9013GHG2J58 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 125-150 psi Points

Square D by Schneider Electric 9013GHG2J58 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 125-150 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V
Adjustable Range On Ris.65-200 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApplicationControl electrically dr.
Approximate Adjustable .20-40 psi
BrandSquare D, Square D by S.
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
Catalog Number9013GHG2J58
CategoryIndustrial Automation a.
Circuit TypePower Circuit
Circularity ProfileENVEOLI111210EN
ColorGrey
ConditionNew
Contact Configuration2 NC, snap action, DPST.
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Country of OriginMexico
Current Stock47
Depth3.88 in
DescriptionSQUARE D PUMPTROL, PUMP.
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GHG2J58-ND
Electrical Circuit TypePower Circuit
Electrical ConnectionScrew-Clamp Terminals, .
Electrical Durability100000 cycles 10 cyc/mn
EnclosureNEMA 1 UL 50
Environmental ConditionsGENERAL PURPOSE (INDOOR)
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.4
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
GTIN00785901559719, 7859015.
Height5.4 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 230V3
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemPressure Switch
Item TypeElectromechanical press.
Lead TimeExpected to ship in 1-2.
Local Displaywithout
Made in USANo
Manual Switch ActionNone
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.9013GHG2J58
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GHG2J58
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight2.25 lb(US)
Operating Cycles10 cyc/mn
Operating Positionany position
Operating Temperature-33-257 A Degrees F
PackageBox
Pressure Actuatordiaphragm
Pressure Sensor Name9013GH
Pressure Sensor Size200 psi 40-170 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.20 to 40 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.125/150 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range40 to 200 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Process Connection0.25 inch NPSF internal.
Product CertificationsCSA file LR25490 || UL .
Product Specific Applic.control electrically dr.
Product StatusActive
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series-, 9013GHG
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G0552632
Special Features-, Nitrile (Buna-N) Dia.
StandardCSA FILE LR25490-UL LIS.
StandardsUL 508 || NSF ANSI 372 .
Sub Brand9013GH
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
System Pressure200 psi 40-170 psi)
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
TypePump Switch
Type Of Packingindividual
UPC785901559719
Value Of Setting125...150 psi
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com9013GHG2J5873.331In StockSquare D2.073.33 @ 1
Onlinecomponents.com9013GHG2J5880.41In StockSquare D80.4 @ 1
thumbzoomZoroG055263289.89197Square D2.0189.89 @ 1
AmazonTPB000LECXMI89.961In Stock2Schneider Electric89.96 @ 1
thumbzoomDigi-Key1637814993.0912Schneider Electric93.09 @ 1
thumbzoomgordonelectricsupply.com9013GHG2J5893.591In Stock10SQUARE D93.59 @ 1
thumbzoommidwestapplianceparts.com9013GHG2J58-SQ-P97.721In StockSquared97.72 @ 1
thumbzoomsustainablesupply.comC268191498.851In StockSquare D2.0198.85 @ 1
thumbzoommayerelectric.comSQD9013GHG2J58101.221In StockSQUARE D2.25101.22 @ 1
thumbzoomsimsupply.comZO-G0552632106.49147Square D106.49 @ 1
thumbzoomcrescentelectric.com197820130.881In StockSquare D by Schneider Electric130.88 @ 1
thumbzoomRaptor SuppliesAH2NUU182.6643781In StockSQUARE D182.664378 @ 1
