Schneider K1A001A

mpnK1A001A
brandname: SQUARE D
manufacturername: SQUARE D

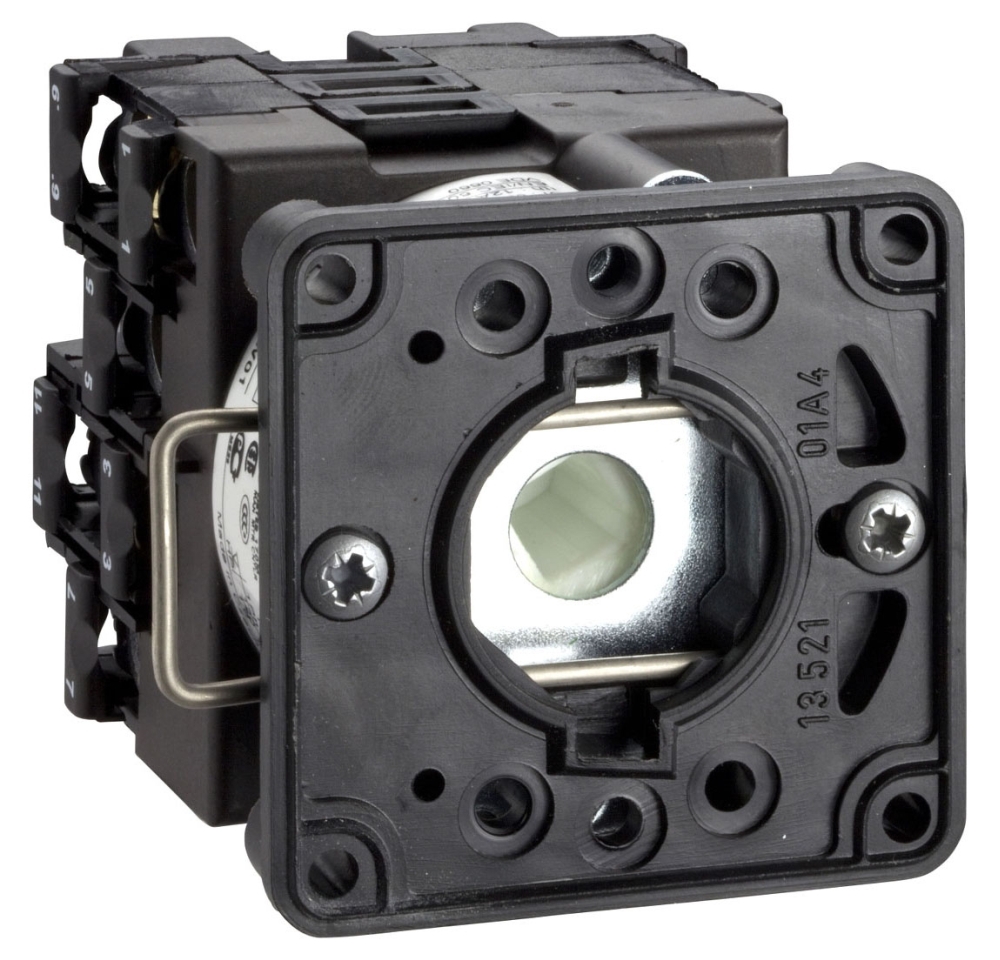

Schneider K1A001A, Cam Switch Body, 12A, 1P, 300VAC

Brand: Schneider
PartNumber: K1A001A
Model: K1A001A
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schneider
Label: Schneider

Attributes

Key	Value
[Ie] Rated Operational .	1 A 500 V AC-15 IEC 947.
[Ith] Conventional Free.	12 A
[Ithe] Conventional Enc.	10 A
[Ui] Rated Insulation V.	690 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.	4 kV in isolating funct.
Ambient Air Temperature.	-25-55 ?C
Ambient Air Temperature.	-40-70 ?C
Bezel Material	plastic
California Proposition .	Nickel compounds, which.
Cam Switch Function	OFF-ON switch
Category	Uncategorized
China Rohs Regulation	X
Component Name	K1
Contact Operation	slow-break
Electrical Connection	captive screw clamp ter.
Electrical Durability	1000000 cycles AC-15 \|\|.
Electrical Shock Protec.	class II IEC 536 \|\| cla.
Environmental Disclosure	ENVPEP071103EN_V1
Eu Rohs Directive	Pro-active compliance (.
Fixing Mode	? 22 mm hole
Maximum Operating Rate	8333 cyc/mn AC-15 \|\| 2..
Mechanical Durability	1000000 cycles
Mercury Free	Yes
Mfr	Schneider Electric
Net Weight	0.075 kg
Off Position	with Off position
Package	Box
Poles Description	1P
Positive Opening	with
Product Certifications	CSA 240 V 1 hp 1 phase .
Product Mounting	front mounting
Product Or Component Ty.	cam switch body
Product Status	Active
Protective Treatment	TC
Range Of Product	Harmony K
Rated Operational Power.	10500 W AC-21, 500 - 66.
Reach Free Of Svhc	Yes
Reach Regulation	Free of Substances of V.
Rohs Exemption Informat.	Yes
Series	*
Shock Resistance	30 gn IEC 68-2-27
Short-Circuit Current	10000 A
Short-Circuit Protection	16 A cartridge fuse gG
Standards	CENELEC EN 50013 \|\| EN/.
Sub-Assembly Composition	contact blocks + fixing.
Sustainable Offer Status	Green Premium product
Switching Angle	45 ?
Switching Positions : r.	0? - 45?
Toxic Heavy Metal Free	Yes
Vibration Resistance	5 gn 10-150 Hz)IEC 68-2.
Warranty	18 months
Weee	The product must be dis.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
kempstoncontrols.co.uk	K1A001A	16.4809125	1	In Stock		Schneider		16.4809125 @ 1
gordonelectricsupply.com	K1A001A	48.89	1	In Stock	10	SQUARE D		48.89 @ 1
mayerelectric.com	SQDK1A001A	53.16	1	In Stock		SQUARE D	0.165	53.16 @ 1
us.rs-online.com	74661026	54.19	1	In Stock		Schneider Electric		54.19 @ 1
Radwell	K1A001A	56.19	1	1		SCHNEIDER ELECTRIC TELEMECANIQUE		56.19 @ 1
Newark	56AC8149	62.78	1	In Stock		SQUARE D BY SCHNEIDER ELECTRIC		62.78 @ 1
Digi-Key	16605547	69.8	1	In Stock		Schneider Electric		69.8 @ 1
