Square D 8736SCO8V02S

B00CONBEMO

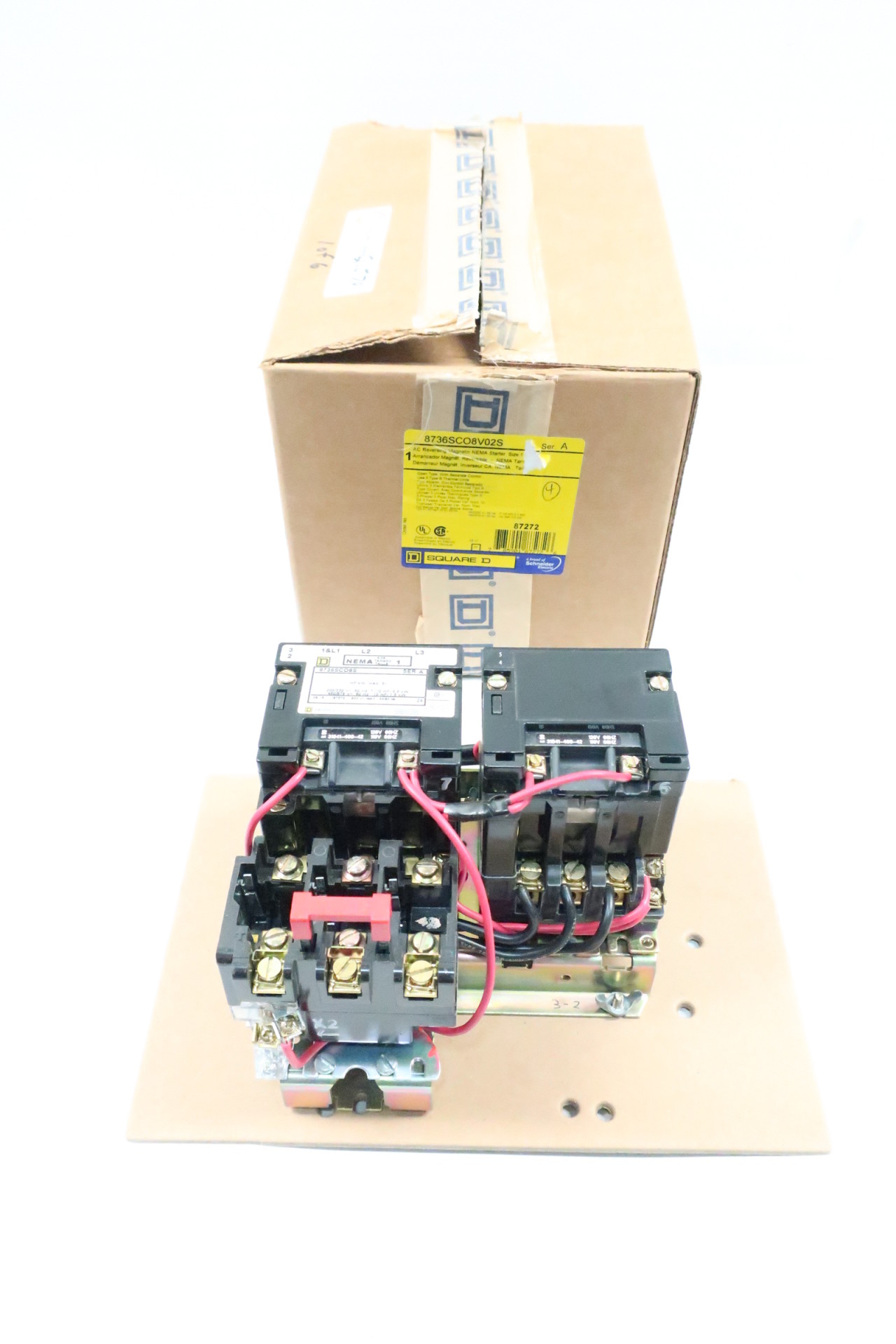

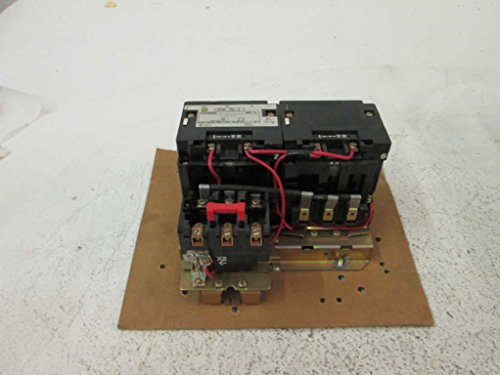

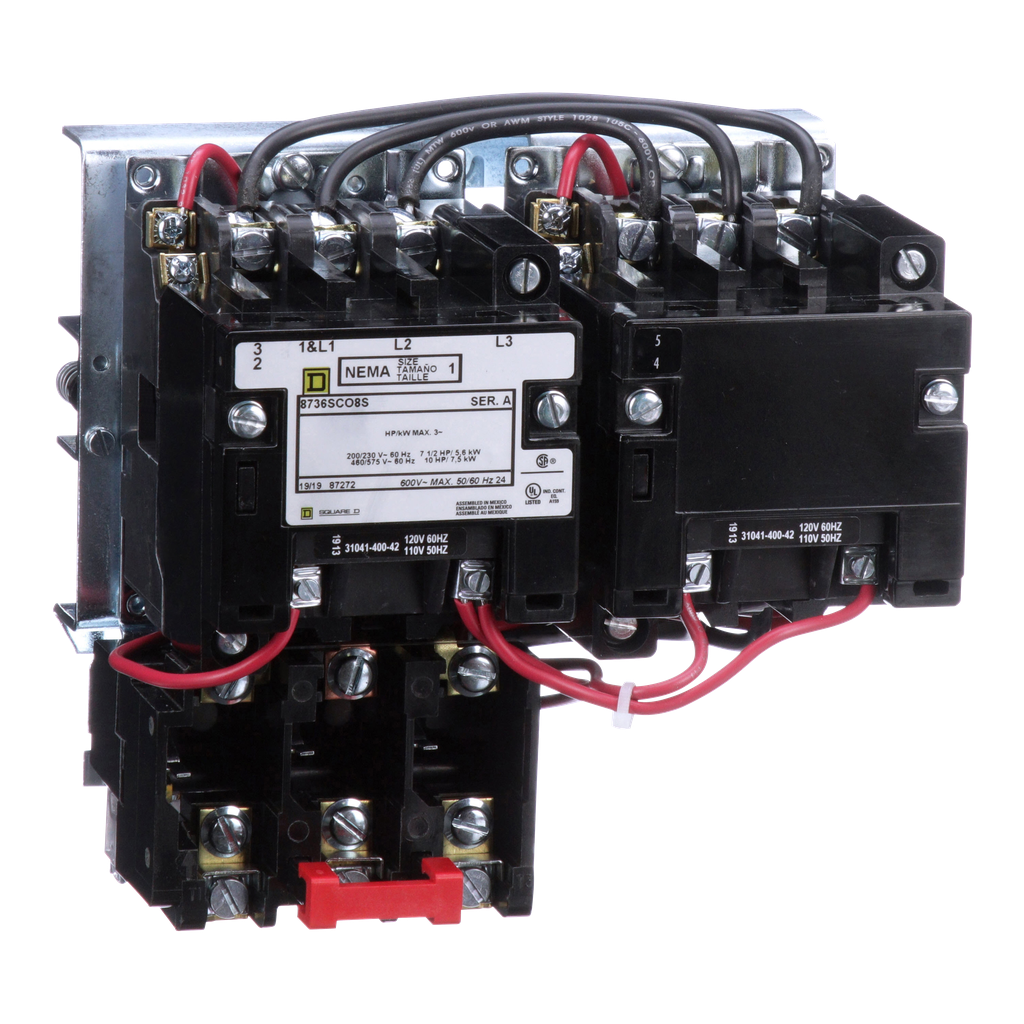

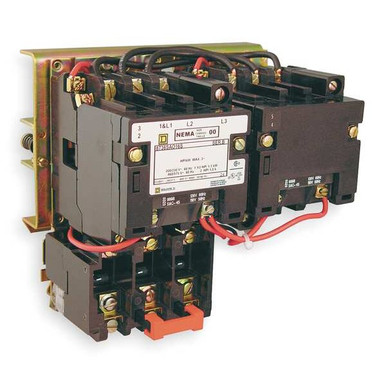

Square D SQD8736SCO8V02S SQ D 8736SCO8V02S REVERSING STARTER, Black

Square D SQD8736SCO8V02S SQ D 8736SCO8V02S REVERSING STARTER, Blackzoom

Attributes

Key Value
[Uc] Control Circuit Vo.110 V AC 50 Hz || 120 V.
[Ue] Rated Operational .600 V AC
Accessory GroupD3
ActionReversing
Amperage27
Amperage Rating27A
Amps AC27 A
ApprovalUL, CSA
ApprovalsCSA, UL
Auxiliary Contact Compo.without
Auxiliary Contact FormNo Auxiliary Contacts
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number8736SCO8V02S
China Rohs RegulationProduct out of China Ro.
Coil Voltage120, 110 V AC 50 Hz;120.
Coil Volts120V AC
ConditionNew
Connectionscrew clamp terminals
Connection TypeScrew Clamp
Continuous Amps Rating27 A
Control Circuitseparate control circuit
Control Unitsno control units
Country of OriginMexico, 00 - Unknown
Current Stock3
Depth5.31 in, 134.87 mm
ECCNEAR99
Electrical Connectionscrew clamp terminals
Enclosure NEMA RatingNo Enclosure
Enclosure TypeOpen
Estimated Lead Time (in.6
Eu Rohs DirectiveNot compliant
Family SeriesSquare D Starters
Frame Type8736
Gross Weight10.1 lbs
GTIN785901872726, 007859018.
Gtin785901872726
Height175.51 mm, 6.91 in
HP @ 3 Phase - 208V7 1/2 hp
HP @ 3 Phase - 240V7 1/2 hp
HP @ 3 Phase - 480V10 hp
HP @ 3 Phase - 575V10 hp
Hz50/60
Industry StandardNEMA
Installation Directionhorizontal
International ShippingNo
ItemMagnetic Motor Starter
Item Number8736SCO8V02S
Item Typestarter
Lead TimeExpected to ship in 1-2.
Line Rated Current27 A
Local Signallingwithout pilot light
Made in USANo
ManufacturerSquare D, Schneider Ele.
Max HP 200/208V 3PH7.5 hp
Max HP 230/240V 3PH7.5 hp
Max HP 460/480V 3PH10 hp
Max HP 575/600V 3PH10 hp
ModificationS
Motor Starter TypeReversing
MountingSurface
Mounting TypeSurface
Mpn8736SCO8V02S
Nema Degree Of Protecti.not rated (open device)
Nema Size1
NEMA Size1
NEMA Starter Size1
Net Weight8.745 lbs
Nominal Coil Voltage120 VAC
Number of Poles3
Number Of Wires3
Operating Voltage600V AC
Phase3, 3 phase
Poles3
Poles Description3P
Power Supply120VAC@60HZ - 110VAC@50.
Product CertificationsUL Listed || CSA
Product Or Component Ty.starter
Product TypeMagnetic Motor Starter
Range Of ProductS
Rated Power In Hp7.5 HP 200 V AC || 7.5 .
Reset TypeMELTING ALLOY 3 THERMAL.
Series8736S, 8736S Series
Size135 MM,176 MM,181 MM
SKUZO-G3109897
Special Featuresscrew clamp terminals
StandardCSA-UL LISTED-NEMA
StandardsUL, RoHS, UL listed
Starter TypeNEMA
StyleOpen
Sub BrandS
SubCategoryElectrical
TerminationScrew
Thermal Overload Typemelting alloy 3
Thermal Unit CodeD3
UNSPSC39121521
UPC785901872726
UPC Code785901872726
Voltage600VAC
Voltage Rating600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width181.10 mm, 7.13 in
Wiring Mode3 wires

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD616104633.911In StockSQUARE D633.91 @ 1
AmazonTPB00CONBEMO758.481In Stock1Square D758.48 @ 1
thumbzoomAllfuses8736SCO8V02S980.04123Square D980.04 @ 1
thumbzoomblackhawksupply.com8736SCO8V02S991.911In StockSquare D991.91 @ 1
thumbzoomindustrialrefrigerationparts.com8736SCO8V02S1039.521In StockSquare D2.01039.52 @ 1
thumbzoomsuperbreakers.com8736SCO8V02S1092.28119Square D1092.28 @ 1
thumbzoomsustainablesupply.comC11669821125.891In StockSquare D9.91125.89 @ 1
thumbzoomGalco8736SCO8V02S-SQD1198.221In StockSquare D10.11198.22 @ 1
standardelectricsupply.com21591991215.071In StockSquare D1215.07 @ 1
thumbzoomZoroG31098971235.99120Square D9.91235.99 @ 1
thumbzoommayerelectric.comSQD8736SCO8V02S1283.771In StockSQUARE D1283.77 @ 1
thumbzoomsimsupply.comZO-G31098971342.013Square D1342.0 @ 1
thumbzoomNewark16B74931351.191In StockSQUARE D BY SCHNEIDER ELECTRIC1351.19 @ 1
thumbzoomRaptor SuppliesAF6PHN1446.57717751In StockSQUARE D1446.5771775 @ 1
Graybar882461261454.913612Square D (Schneider Electric)1454.9136 @ 1
thumbzoomNational Supply Network696513541461.381In StockSquare D1461.38 @ 1
grainger.caSQD8736SCO8V02S1759.368260121In StockSQUARE D9.91759.36826012 @ 1
us.rs-online.com702277842119.41In StockSquare D2119.4 @ 1
thumbzoomcrescentelectric.com1813022602.281In StockSquare D2602.28 @ 1
