Schneider Electric HJA36100M73

B00CONKE7A

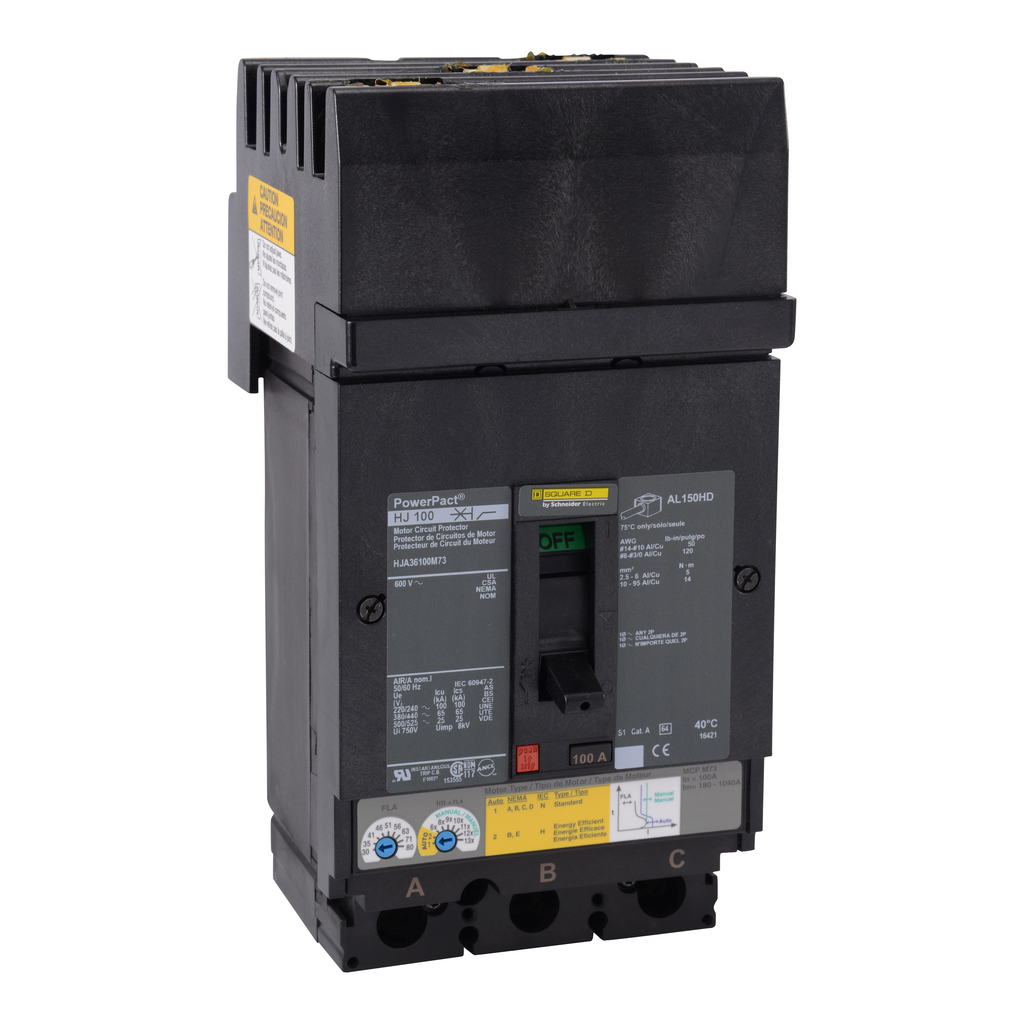

SCHNEIDER ELECTRIC HJA36100M73 Molded Case Circuit Breaker 600-Volt 100A Electrical Box

SCHNEIDER ELECTRIC HJA36100M73 Molded Case Circuit Breaker 600-Volt 100A Electrical Boxzoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA 220/240 V AC 50/.
[Ith] Conventional Free.30-80 A
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Actuatortoggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Applicationdistribution
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberHJA36100M73
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1311006EN
ColorBlack
Communication InterfaceModbus || Ethernet
ConnectionI-Line connection line;.
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States
Depth86 mm
Device Applicationdistribution
DisplayHJA36100M73 Motor Circu.
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
Frequency Rating50/60 Hz
Height163 mm
Ip Degree Of Protectionfront cover IP40 IEC 60.
Item TypeMotor Circuit Protector
Line Rated Current100-100 A
Made in USAYes
Magnetic Tripping Curre.180-1040 A
ManufacturerSchneider Electric
Mercury FreeYes
Mounting Height4.5 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Net Weight2.2 kg
Network Frequency50/60 Hz
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Phase ConnectionABC
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.Motor Circuit Protector
Protected Poles Descrip.3t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Special FeaturesModbus;Ethernet;1
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact H
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Typethermal-magnetic
Trip Unit Technologythermal-magnetic
UPC785901579670
Utilisation Categorycategory A
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHJA36100M73995.01In Stock10SQUARE D995.0 @ 1
thumbzoommayerelectric.comSQDHJA36100M731000.871In StockSQUARE D4.841000.87 @ 1
thumbzoomRadwellHJA36100M731100.01In StockSCHNEIDER ELECTRIC SQUARE D1100.0 @ 1
thumbzoomcrescentelectric.com3085431801.391In StockSquare D by Schneider Electric1801.39 @ 1
