Square D L100WNCS2M34

B00CONASYE

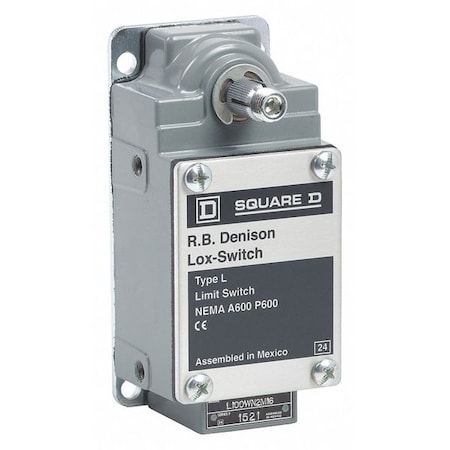

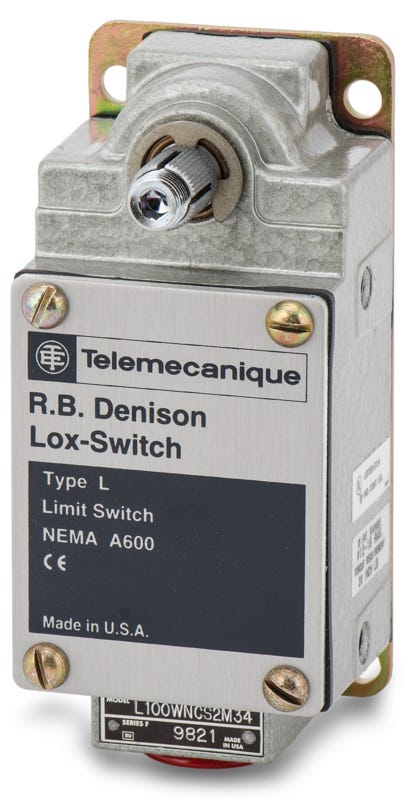

Square D L100WNCS2M34 NEMA Mill Limit Switch, Snap Contacts, Spring Return Without Lever, Neutral Position, 2 NC, CW + CCW Actuation, 1/2" NPT, 34 Contact Seq. Number

Square D L100WNCS2M34 NEMA Mill Limit Switch, Snap Contacts, Spring Return Without Lever, Neutral Position, 2 NC, CW + CCW Actuation, 1/2" NPT, 34 Contact Seq. Numberzoom

Attributes

Key Value
AC Contact Rating - Lim.10A @ 600V
Amperage10A
Amps10
Body Depth - Limit Swit.3.41 in
Body Height - Limit Swi.4.95 in
Body Materialcast aluminium
Body Style (Limit Switc.fixed
BrandSchneider Electric
Contact Actionsnap action
Contact FormForm YY
Contact Form- Switches2 NC; Form YY
Contact Material90/10 AgCdO on copper b.
ECCNEAR99
Electrical Connectionscrew-clamp terminals A.
Gtin785901161516
Head Typerotary head
IP RatingIP67 conforming to IEC .
ItemLimit Switch
Mounting TypePanel
MpnL100WNCS2M34
Nema RatingNEMA 1/2/4/12/13
NEMA RatingNEMA 1 Nema type 250 ||.
Operating Temp. Range-10-185 ?F
Poles2
SeriesL100, L300 || L100
Shock Resistance30 gn 9 ms IEC 60068-2-.
Short Circuit Protection20 A Bussmann class CC .
Special Featureslateral approach
Standards2.5 kV AC for 1 minute .
UNSPSC39122213
Upc785901161516
Vibration Resistance10 gn 10-55 Hz)IEC 6006.
Voltage600V
Weight1.5 lb(US)
Width2.25 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comL100WNCS2M34251.661In StockSchneider Electric251.66 @ 1
steinerelectric.com223093423.11In StockSquare D?423.1 @ 1
thumbzoomZoroG0560990425.251In Stock10Square D1.51425.25 @ 1
thumbzoomsustainablesupply.comC3045998429.111In StockSquare D1.51429.11 @ 1
thumbzoomNational Supply Network69657807444.61In StockSquare D444.6 @ 1
Graybar92101636537.85761In StockSquare D (Schneider Electric)537.8576 @ 1
