- mpn35RAPC4BHN2
- brandname: Switchcraft
- manufacturername: Switchcraft

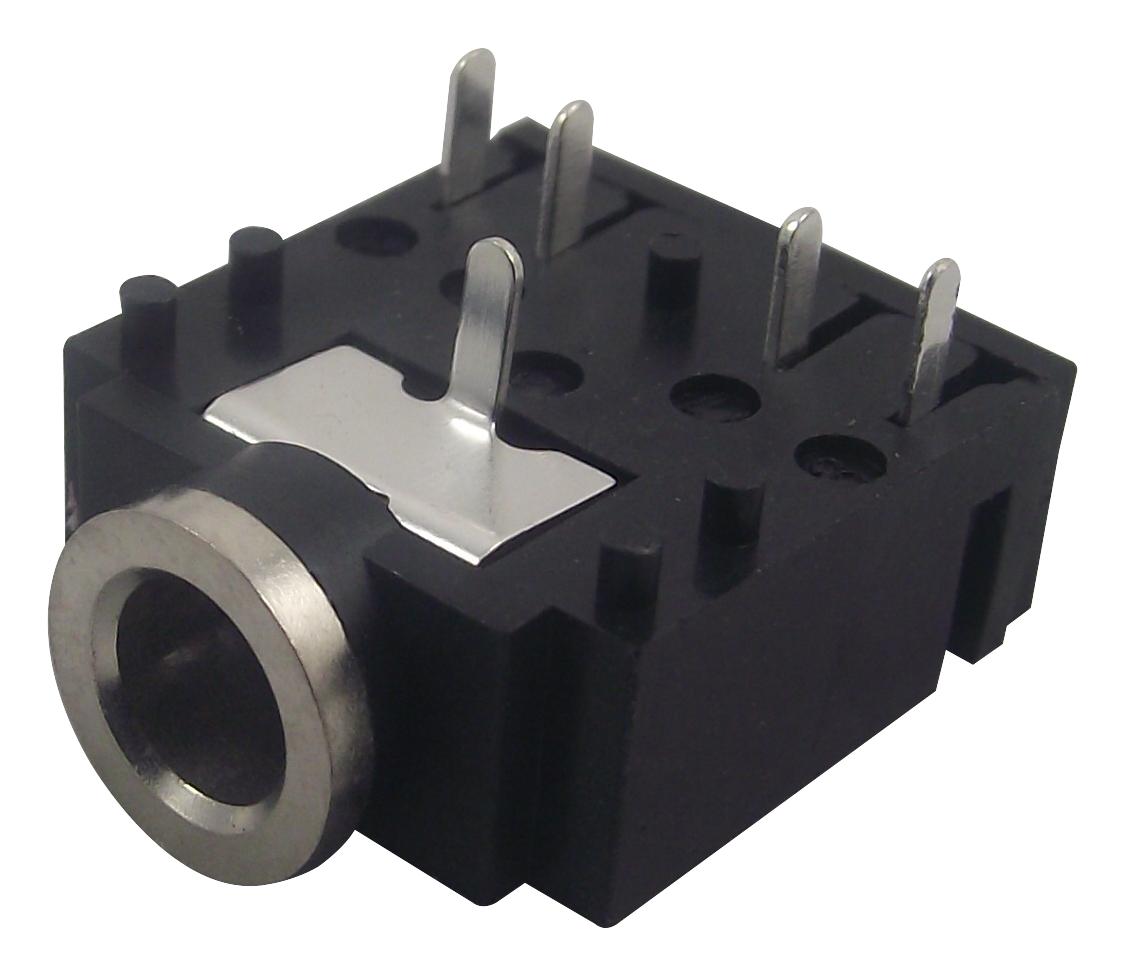

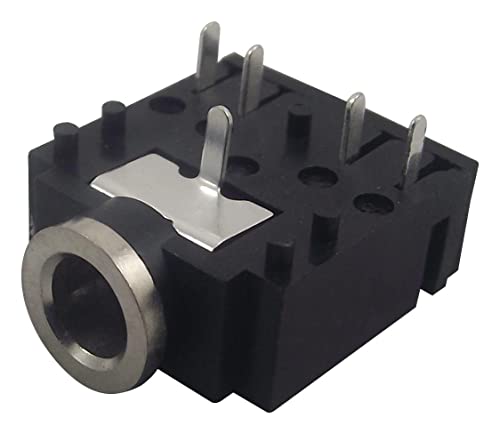

Switchcraft/conxall Connector, RCA/Phono, Jack, 3 Position - 35RAPC4BHN2
- Brand: Switchcraft/Conxall
- PartNumber: 35RAPC4BHN2
- Model: 35RAPC4BHN2-SWITCHCRAFT_IT
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Switchcraft/Conxall
- Label: Switchcraft/Conxall
Attributes
| Key | Value |
|---|
| Actual Diameter | 0.142" (3.60mm) |
| Alternate Part No. | 502-35RAPC4BHN2 |
| Angle | Right Angle |
| Audio Type | Stereo |
| Base Product Number | 35RAPC |
| Body Color | Silver, Black |
| Body Material | Brass, Thermoplastic |
| Body Orientation | Straight |
| Brand | Switchcraft |
| Cable Opening | - |
| Category | Connectors, Interconnec. |
| Color | Black |
| Colour | Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plat. | Silver |
| Contact Plating | Nickel, Silver |
| Features | - |
| Gender | Female |
| Housing Material | Polybutylene Terephthal. |
| Includes | - |
| Industry Recognized Mat. | 3.50mm (0.141", 1/8", M. |
| Insulation Color | - |
| Insulation Type | Insulated |
| Internal Switch(s) | Two Switches |
| Manufacturer | Switchcraft |
| Manufacturer Part No. | 35RAPC4BHN2 |
| Mating Length/Depth | - |
| Mfr | Switchcraft Inc. |
| Mounting Type | PCB Mount, Through Hole. |
| No of Poles/ Way | 3 |
| Number of Contacts | 4 |
| Number of Positions | 3 (TRS, Stereo) |
| Number of Positions/Con. | 3 Conductors, 5 Contacts |
| Operating Temperature | - |
| Orientation | Horizontal |
| Package | Bulk |
| Panel Hole Size | - |
| Primary Type | Phone |
| Product Category | Phone Connectors |
| Product Header | Right Angle Mounted Mon. |
| Product Status | Active |
| Series | 35 Series, 35, 35RAPC |
| Shielding | Unshielded |
| Signal Lines | Stereo (3 Conductor, TR. |
| Size | 3.5 mm |
| Standard | 3.5 mm, 1/8 in |
| Switch Configuration | Switched |
| Termination | Solder |
| Termination Method | Solder |
| Termination Style | Through Hole |
| Thread Size | - |
| Type | Stereo, Jack |
| Voltage - Rated | - |
| Voltage Rating | 250 V ac, 500 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H709646 | 0.7526 | 1 | 100 | | Switchcraft/Conxall | | 0.7526 @ 100 |
| Onlinecomponents.com | 35RAPC4BHN2 | 0.92 | 1 | 2948 | | SWITCHCRAFT | | 0.92 @ 100 |
| Electroshield | 35RAPC4BHN2 | 1.06 | 840 | 100 | | SWITCHCRAFT | | 1.06 @ 100 |
 | RS Delivers | 878-2549 | 1.194 | 50 | 100 | | Switchcraft | | 1.194 @ 100 |
| Arrow | 35RAPC4BHN2 | 1.229 | 1 | 4269 | | Switchcraft | | 1.229 @ 100 |
| Hawk Electronics | 35RAPC4BHN2 | 1.24 | 840 | 100 | | Switchcraft | | 1.24 @ 840 |
 | swatee.com | 35RAPC4BHN2 | 1.25 | 1 | 3805 | | Switchcraft | | 1.25 @ 100 |
| Digi-Key | 1288690 | 1.4952 | 1 | 35675 | | Switchcraft Inc. | | 1.4952 @ 100 |
 | Newark | 96F9607 | 1.54 | 1 | 1200 | | SWITCHCRAFT/CONXALL | | 1.54 @ 100 |
| us.rs-online.com | 70214155 | 1.94 | 1 | 100 | | Switchcraft | | 1.94 @ 100 |
| AmazonTP | B00CHTL38A | 7.49 | 1 | 100 | 2 | SWITCHCRAFT,INC. | | 7.49 @ 100 |
