TE Raychem TXR40AB00-2405AI

B07NQTJHTB

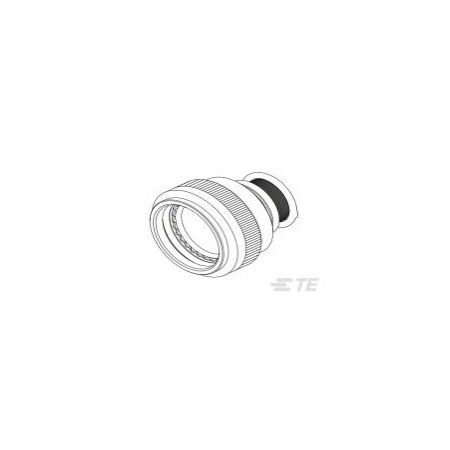

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adapter AngleStraight
Adapter Entry Size5
Adapter Plating MaterialCadmium (AMS-QQ-P-416, .
Backshell MaterialAluminum
Base Product NumberTXR40AB00
Cable Diameter Range4 ? 6.4 mm[.156 ? .25 i.
Cable Entry Diameter.2 ? 7.9 mm[.01 ? .31 i.
Cable Exit180?
Cable Opening-
CategoryConnectors, Interconnec.
ColorOlive Drab
Connector Detail Specif.D38999/20, D38999/24, D.
Connector General Speci.MIL-DTL-38999 Series II.
Connector Shell Size25,J
Diameter - Outside1.713"" (43.50mm)
FeaturesTinel Lock
For Use With/Related Pr.MIL-DTL-38999 Series II.
Includes4 pcs - 1 Backshell, 1 .
Ingress ProtectionEnvironment Resistant
MaterialAluminum Alloy
Material Flammability R.-
MfrTE Connectivity Raychem.
Operating Temperature R.-65 ? 175 ?C[-85 ? 347 .
Overbraid TerminationTinel-Lock Ring
PackageBulk
Package Quantity1
Part StatusActive
PlatingCadmium
Pluggable I/O Accessory.Tinel-Lock Adapter
Salt Spray Resistance500 Hr
SeriesTXR, Raychem TXR
Shell Size - Insert25, J
ShieldingShielded
TE Adapter Code40
Termination Device Incl.TR05AI
Termination Device TypeSide-Entry Tinel-Lock R.
Thread SizeM37x1
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet138667-00052.31337In StockTE Connectivity / Raychem52.313 @ 37
Digi-Key239476980.0883837In StockTE Connectivity Raychem Cable Protection80.08838 @ 37
WaldomTE CONNECTIVITY RAYCHEM TXR40AB00-2405AI106.69371TE CONNECTIVITY / RAYCHEM106.69 @ 37
Allied ElectronicsE5197213129.125In StockTE Connectivity129.12 @ 5
thumbzoomZoroG500963031141.991In StockRaychem141.99 @ 1
Onlinecomponents.comTXR40AB00-2405AI145.7211TE Connectivity / Raychem145.72 @ 1
Newark95Y4312192.511RAYCHEM - TE CONNECTIVITY192.5 @ 1
