Juried Engineering LM393P

B07PF1Q4XF

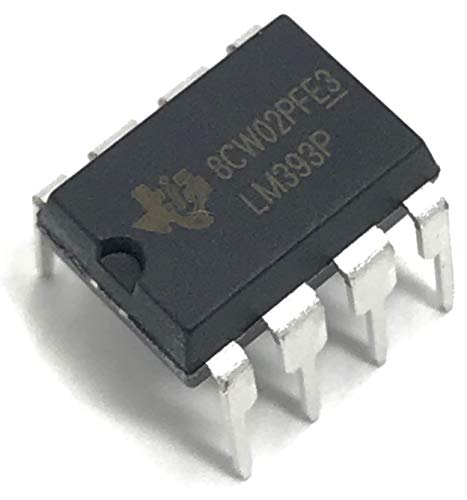

Juried Engineering LM393P LM393 Dual Differential Comparators DIP-8 Breadboard-Friendly (1 Piece)

Juried Engineering LM393P LM393 Dual Differential Comparators DIP-8 Breadboard-Friendly (1 Piece)zoom

Attributes

Key Value
Alternate Part No.595-LM393P
Base Product NumberLM393
BrandTexas Instruments
CaseDIP8
CategoryIntegrated Circuits (IC.
CMRR, PSRR (Typ)-
Com Mode Inp Range (VIC.3.5
Comparator TypeDifferential
Current - Input Bias (M.0.25?A @ 5V
Current - Output (Typ)20mA
Current - Quiescent (Ma.2.5mA
DescriptionIC COMPARATOR 2 DIFF 8D.
Detailed DescriptionComparator Differential.
Digi-Key Part Number296-1398-5-ND
Factory Pack Quantity50
Hysteresis-
I(io) Max. (A)150n
Ib - Input Bias Current0.25 uA
In-stock0
Inp Bias Curr. Max. (A)400n
Ios - Input Offset Curr.50 nA
ManufacturerTexas Instruments
Manufacturer Part No.LM393P
Manufacturer Product Nu.LM393P
Manufacturer Standard L.6 Weeks
Marking CodeLM393P
Maximum Operating Tempe.+ 70 C
MfrTexas Instruments
Minimum Operating Tempe.0 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
No. of Pins8
Nom. Supp (V)5.0
Number of Channels2 Channel
Number of Elements2
Offset Voltage (Max)5 mV
Oper. Temp (?C) Max.70
Oper. Temp (?C) Min0
Operating Temperature0?C ~ 70?C
Output Current (Typ)6 mA
Output Current per Chan.6 mA
Output TypeOpen Collector, Open Dr.
PackageTube
Package / CasePDIP-8, 8-DIP (0.300", .
Package/CaseDIP-8, PDIP-8
PackagingTube
PD Max. (W)5.0m
Pinout Equivalence Numb.8-17
ProductAnalog Comparators
Product CategoriesComparator ICs
Product CategoryAnalog Comparators
Product StatusActive
Propagation Delay (Max)-
Response Time0.3 us
RoHs StatusLead free / RoHS Compli.
Series-, LM393
ShutdownNo Shutdown
SKU17224
Strobe Inp (Y/N)No
Supplier Device Package8-PDIP
Supply Current500 uA
Supply Current (Max)0.5 mA
Supply Voltage - Max30 V
Supply Voltage - Min2 V
Surface Mounted Yes/NoNo
t(resp) (S)1.3u
TypeIntegrated Circuit, Dif.
Unit Weight440.400 mg
V(io) Max. (V)9.0m
Volt Gain Min94
Voltage - Input Offset .5mV @ 30V
Voltage - Supply, Singl.2V ~ 36V, ?1V ~ 18V
Voltage Gain dB106.02 dB
Vos - Input Offset Volt.5 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark06F94610.1133250884TEXAS INSTRUMENTS0.113 @ 2500
Win SourceLM393P0.12939048450Texas Instruments0.129 @ 390
thumbzoomTMELM393P0.2873884TEXAS INSTRUMENTS0.287 @ 3
HotendaH25694320.4414539Texas Instruments0.44 @ 1
thumbzoomComponent Electronics393P-TI0.51400Texas Instruments0.5 @ 1
RS Delivers810-2390.67212265Texas Instruments0.672 @ 1
thumbzoomswatee.comLM393P0.7612419Texas Instruments0.76 @ 1
AmazonTPB00LQPOV765.518842Texas Instruments5.5 @ 1
Little DiodeLM393P5.9331285130Texas Instruments5.9331285 @ 1
thumbzoomDigi-Key27704512.42110576Texas Instruments12.42 @ 1
