WEG 00218ET3E145JM-W22

B00BC7P8ZC

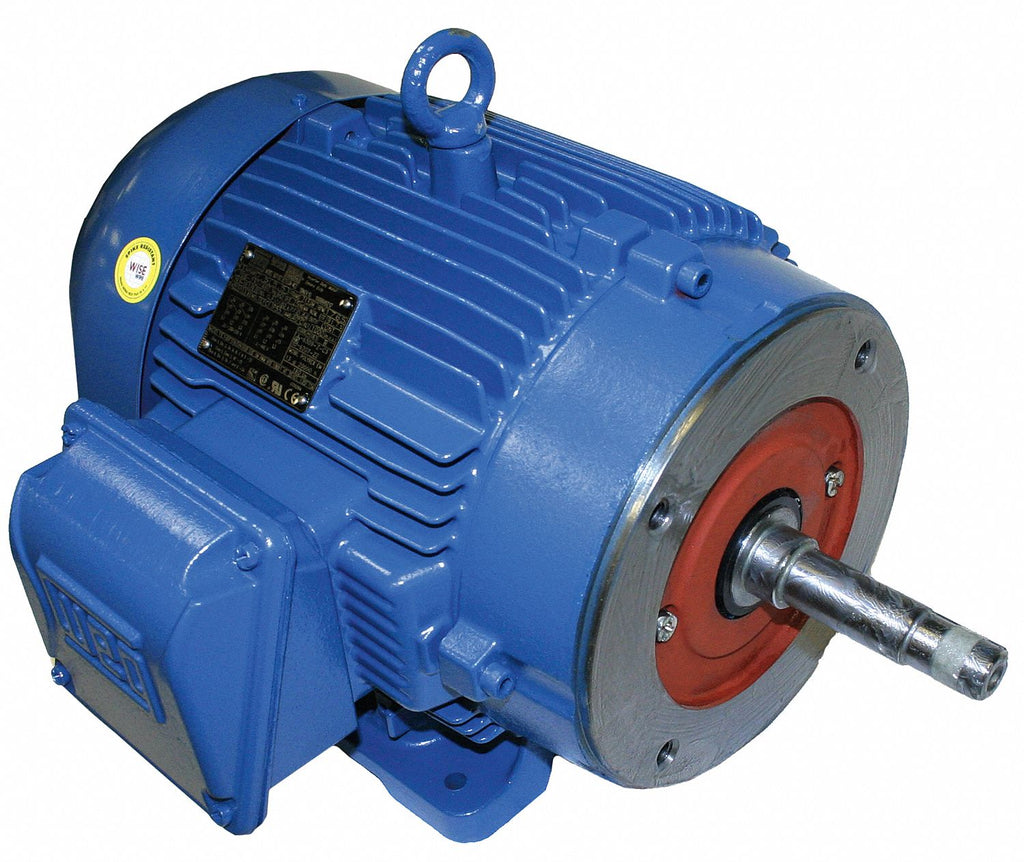

WEG Pump Mtr,3-Ph,2hp,1755,208-230/460,145JM (00218ET3E145JM-W22)

WEG Pump Mtr,3-Ph,2hp,1755,208-230/460,145JM (00218ET3E145JM-W22)zoom

Attributes

Key Value
Amperage Rating5.85 to 5.52/2.76 A
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.7.1 in, 7.1"
Bolt Circle Dia.5 7/8 in, 5 7/8"
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 2HP 4P 143/5JM WF.
Dimensions15.675 in L
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency %86.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight63.00
Family SeriesWEG Electric Motors
FL Amps2.61
FL Efficiency86.5
FlangesC-Face Flange
Frame143JM, 145JM, 143/5JM
Frame MaterialCast Iron
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps5.7-5.2/2.6
Green Certification or .NEMA Premium(R) Rated
Gross Weight60 lbs
Height7 1/8 in
Hertz60
Horsepower2 hp
HP2
HP @ 50Hz1 1/2, 2
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number00218ET3E145JM-W22
Length Less Shaft11 7/16 in, 11-3/16"
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00218ET3E145JM-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C, 40 Degre.
MFG Part #:00218ET3E145JM-W22
Model11524270
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.25
Motor Shaft DesignJM Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM1,755, 1755
NEMA DesignB
NEMA Frame145JM
Net Weight60 lbs
No. of Speeds1
Nominal Efficiency86.5%
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating2 hp
Overall Length15 11/16 in, 15-5/16"
Part Number00218ET3E145JM-W22
Phase3, 3 ph
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaces00218EP3E145JM-W22
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
RPM @ 50Hz1,440
RPM Range1,701-1,800, 1701-1800
Service Factor1.25
Service Factor @ 50Hz1.25
Shaft Dia.7/8", 7/8 in
Shaft Dia. (In.)0.874
Shaft Length4 1/4 in, 4-1/8"
Shaft MaterialCarbon Steel
Shaft Size7/8 in Dia x 4-1/8 in L
Speed1755 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsUL Recognized, CSA Cert.
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7891327338982
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC, 230/46.
Voltage (AC)208 VAC
Voltage @ 50Hz380/400/415
Voltage Compatibility208, 230, 240, 460, 208.
Volts208/230/460
Weight56.1 lb, 58.240000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00218ET3E145JM-W22391.01In StockWEG56.1391.0 @ 1
AmazonTPB007ICZ5AS455.951In Stock3WEG455.95 @ 1
thumbzoomWalker Industrial00218ET3E145JM-W22530.251In Stock17WEG530.25 @ 1
thumbzoomZoroG3644566530.25113Weg56.7530.25 @ 1
thumbzoommotorsandcontrol.com00218ET3E145JM-W22530.251In StockWEG Electric63.0530.25 @ 1
thumbzoomMRO Supply1313615558.351In StockWEG558.35 @ 1
thumbzoomGalco00218ET3E145JM-W22-WEG580.681In StockWEG Electric60.0580.68 @ 1
kscdirect.comWEG 00218ET3E145JM-W22601.791In StockWEG ELECTRIC CORP601.79 @ 1
thumbzoomindustrialrefrigerationparts.com00218ET3E145JM-W22618.551In StockWEG58.24618.55 @ 1
thumbzoomDealers Electric00218ET3E145JM-W22619.061In StockWeg63.0619.06 @ 1
thumbzoomPurvis00218ET3E145JM-W22784.781In StockWEG784.78 @ 1
thumbzoomNational Supply NetworkB880524900.391In StockWeg Electric Motors900.39 @ 1
thumbzoomsustainablesupply.comC1566532912.231In StockWEG56.7912.23 @ 1
grainger.caWWG6FKC7919.276847361In StockWEG56.7919.27684736 @ 1
thumbzoomRaptor SuppliesAE8UJH1209.63193651In StockWEG1209.6319365 @ 1
