WEG 02536ET3E284JM-W22

B00BC8PQ7G

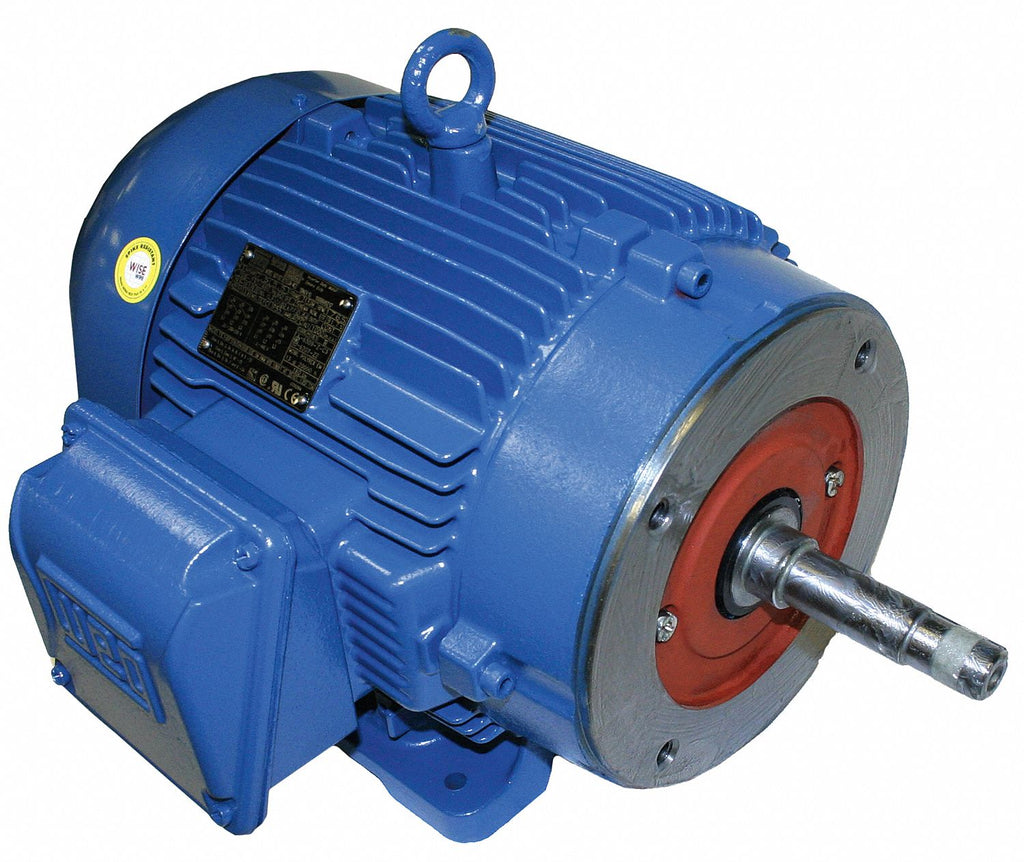

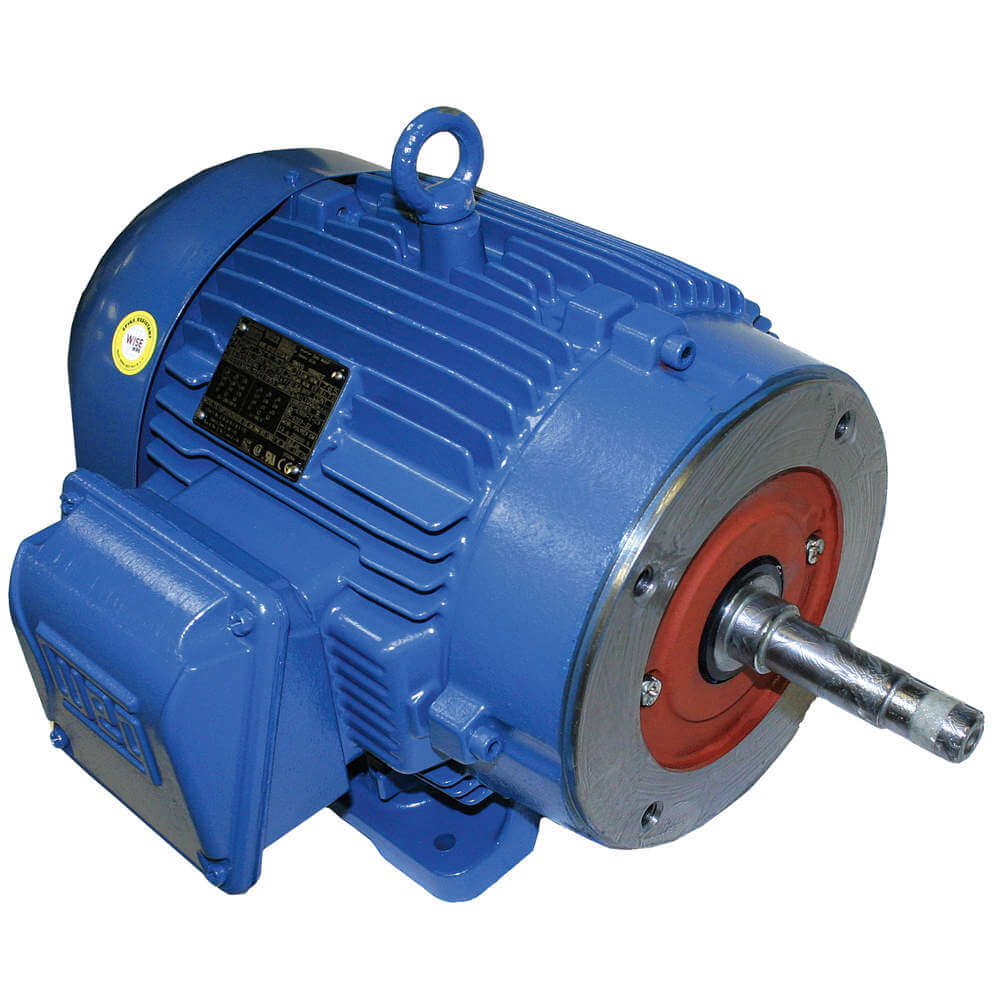

Pump Mtr, 3ph, 25hp, 3555,208-230/460,284JM

Pump Mtr, 3ph, 25hp, 3555,208-230/460,284JMzoom

Attributes

Key Value
Amperage Rating63.0 to 57/28.5 A
ApplicationIndustrial and Commerci.
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.13.8 in
Bolt Circle Dia.11 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 25HP 2P 284/6JM W.
Dimensions28.7 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %91.7 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight416.00
Family SeriesWEG Electric Motors
FL Amps28.5
FL Efficiency91.7
FlangesWithout Flange
Frame284JM, 284/6JM, 286JM
Frame MaterialCast Iron
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps63.0-57.0/28.5
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Height13 13/16 in
Hertz60
Horsepower25 hp
HP25
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number02536ET3E284JM-W22
Length Less Shaft23 7/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number02536ET3E284JM-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:02536ET3E284JM-W22
Model12602714
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.25
Motor Shaft DesignJM Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM3,535
NEMA DesignB
NEMA Frame284JM
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency91.7 %
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating3.75/15 HP
Overall Length28 11/16 in
Part Number02536ET3E284JM-W22
Phase3, 3 ph, Three
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaces02536EP3E284JM-W22
RotationCW/CCW
RPM3600, 3535, 3,600 RPM
RPM Range3,001-3,600
Service Factor1.25
Shaft Dia.1 1/4 in
Shaft Length5 1/4 in
Shaft MaterialCarbon Steel
Shaft Size1-1/4 in Dia x 5 in L
Speed3535 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (LR38324), CSA (LR5.
Supplier:WEG ELECTRIC CORP
Synchronous Speed900/1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxRight position
UPC:7909158384679
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC, 575 V,.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight423.550000, 393 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com02536ET3E284JM-W221995.01In StockWEG393.01995.0 @ 1
thumbzoomWalker Industrial02536ET3E284JM-W222714.251In Stock17WEG2714.25 @ 1
thumbzoommotorsandcontrol.com02536ET3E284JM-W222714.251In StockWEG Electric416.02714.25 @ 1
thumbzoomMRO Supply13137682769.321In StockWEG2769.32 @ 1
thumbzoomGalco02536ET3E284JM-W22-WEG2972.41In StockWEG Electric2972.4 @ 1
thumbzoomindustrialrefrigerationparts.com02536ET3E284JM-W223065.931In StockWEG423.553065.93 @ 1
kscdirect.comWEG 02536ET3E284JM-W223080.471In StockWEG ELECTRIC CORP3080.47 @ 1
thumbzoomRadwell02536ET3E284JM-W223300.01In StockWEG3300.0 @ 1
thumbzoomDealers Electric02536ET3E284JM-W223304.171In StockWeg416.03304.17 @ 1
thumbzoomZoroG36789633329.6911Weg400.03329.69 @ 1
cbtcompany.com02536ET3E284JM-W223526.911In StockWEG3526.91 @ 1
thumbzoomPurvis02536ET3E284JM-W224017.11In StockWEG4017.1 @ 1
motionindustries.com047020525071.591In StockWEG Electric Corporation5071.59 @ 1
thumbzoomsustainablesupply.comC14928485443.541In StockWEG400.05443.54 @ 1
thumbzoomRaptor SuppliesAE8UJX6712.93823851In StockWEG6712.9382385 @ 1
