Acme Electric T253013SS

B007IB9XNY

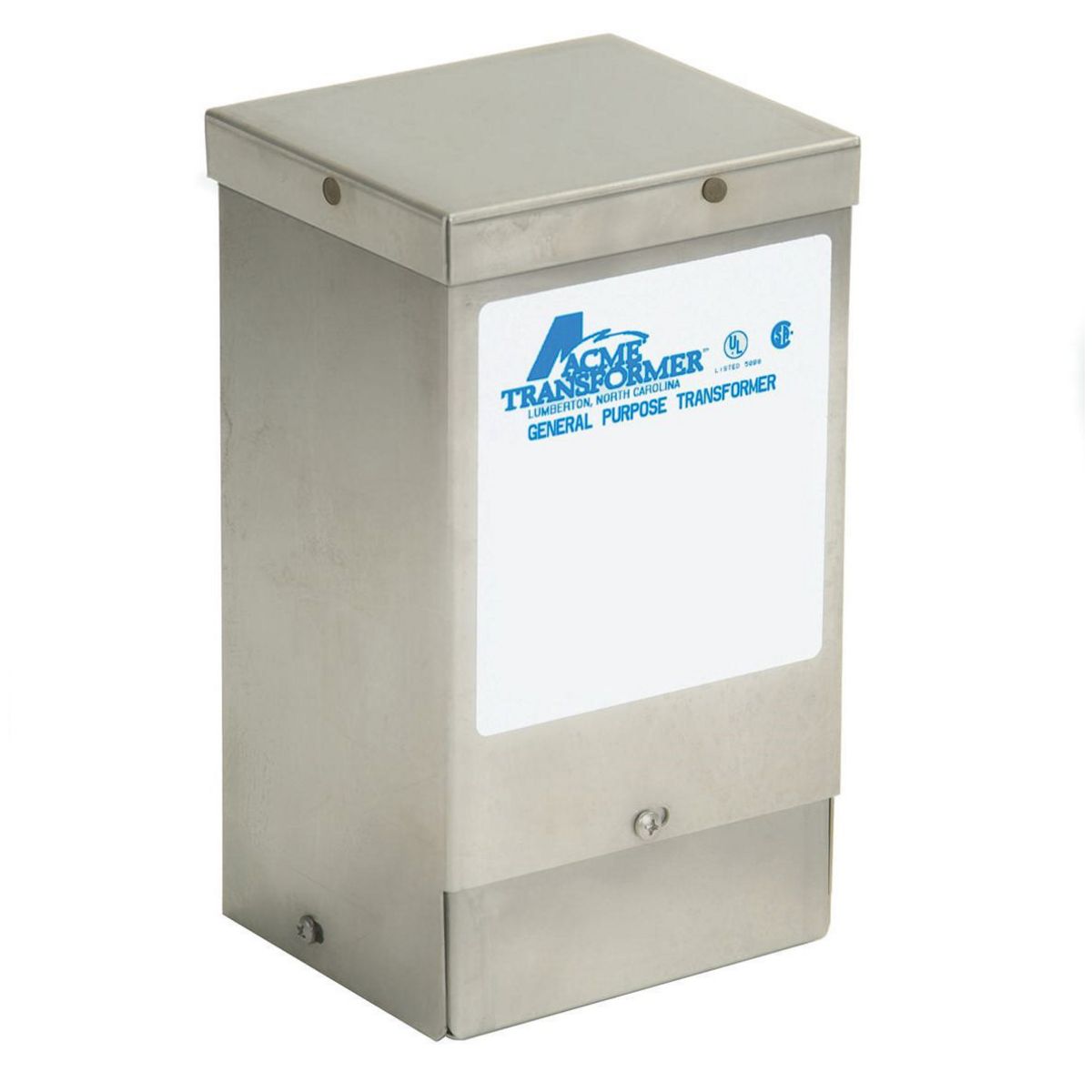

Acme Electric - T253013SS - - Acme Electric, Single Phase, 60 Hz, 240 X 480 Primary Volts, 120/240 Secondary Volts - Four Windings

Acme Electric - T253013SS - - Acme Electric, Single Phase, 60 Hz, 240 X 480 Primary Volts, 120/240 Secondary Volts - Four Windingszoom

Attributes

Key Value
ApplicationEncapsulated
Approvals:UL;CSA
BrandAcme Electric
Brand:Acme Electric
Catalog NumberT253013SS
Circuit Diag. No.:ACME_XFMR_WD-3
Connection typeCopper Lead Wire
Country of OriginMexico
Diag. No.:ACME_DIAG_C
Dimensions11.5 in H x 10.31 in W .
Enclosed:Yes
Enclosure TypeNEMA 3R
Frequency Rating60, 60 HZ
Height11.5
Height UOMInch
Insulation180
Insulation Class:Class H
Item Category:Transformers
Item Number:T-2-53013-SS
Item TypeIsolation transformer
Length7.13
Length UOMInch
Made in USANo
ManufacturerAcme Electric, a Hubbel.
MountingWall
Mounting typeWall
Mounting:Wall
NEMA Rating:NEMA 3R
Phase1
Phase:1
Picture No.:ACME_XFMR_C
Power Rating3, 3 kVA
Primary Fuseholder:Not Available
Primary TypeIndustrial Transformer
Primary Voltage240/480, 240 X 480 V
Primary Voltage:240/480
Secondary Fuseholder:Not Available
Secondary Voltage120/240 V, 120/240
Secondary Voltage:120/240
SeriesToroids Series
Series:T
Subcategory:General Purpose Transfo.
Temperature Rating (Deg.115
Temperature Rise (F):239 Degrees F
TypeDry Distribution Encaps.
Type:Distribution
UPC047503084342
UPC:4750308434210
VA Rating:3,000 Volt-Amps
Width10.31
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comT-2-53013-SS809.211In StockAcme Electric809.21 @ 1
thumbzoomGalcoT253013SS1212.161In StockAcme Electric55.01212.16 @ 1
thumbzoomstandardelectricsupply.com22324081348.31In StockAcme Electric1348.3 @ 1
us.rs-online.com714840911428.161In StockAcme Electric Corporation1428.16 @ 1
cbtcompany.comT253013SS1448.891In StockAcme Electric1448.89 @ 1
thumbzoomcrescentelectric.com3249562411.041In StockAcme Electric2411.04 @ 1
