BandB Manufacturing 32MP037-6FA3

mpn32MP037-6FA3
brandname: B & B Manufacturing
manufacturername: B & B Manufacturing

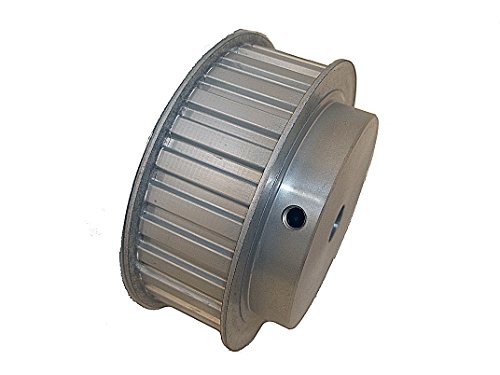

BandB Manufacturing 32MP037-6FA3 Timing Pulley, 32 Teeth, MXL Pitch for 0.375" Wide Belts, 1 Flange and Hub Serves as Second Flange, 0.25" Bore

BandB Manufacturing 32MP037-6FA3 Timing Pulley, 32 Teeth, MXL Pitch for 0.375" Wide Belts, 1 Flange and Hub Serves as Second Flange, 0.25" Bore

zoom

Brand: BandB Manufacturing
PartNumber: 32MP037-6FA3
Model: 32MP037-6FA3
PackageQuantity: 1
Binding: Misc.
Manufacturer: B&B Manufacturing, Inc.
Label: B&B Manufacturing, Inc.

Attributes

Key	Value
Bore (in)	1/4 Inch Finished Bore
Bore Type	Finished Bore
Face Width (in)	0.514
Finish	Clear Anodized
Flange Diameter (in)	1.000
Flange Material	Aluminum
For Belt Width (in)	0.375
Hub Diameter (in)	0.598
Material	Aluminum
Max. Bore (in)	0.348
Min. Bore (in)	0.250
MOQ	1
Outside Diameter (in)	0.795
Overall Length (in)	0.813
Part Number Cross Refer.	A 6A16-032DF3708, A6A16.
Pitch Diameter (in)	0.815
Product Number	32MP037-6FA3
Pulley Belt Width (in)	0.410
Set Screw	2 x 8-32 @ 90
Set Screw Quantity	2
Teeth	32
Tooth Style	MXL
Type	6F
Unit System	Inch
Weight (lb)	0.03
