Baldor Electric CEM3218T

B07FN3CW7W

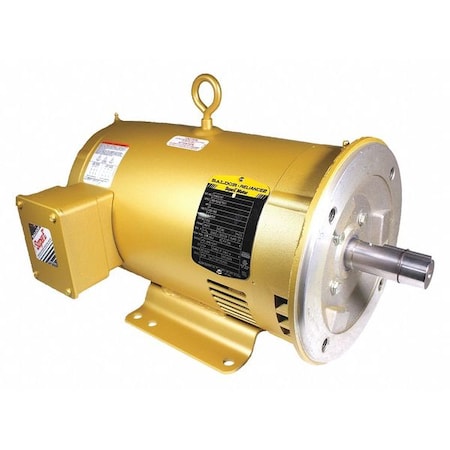

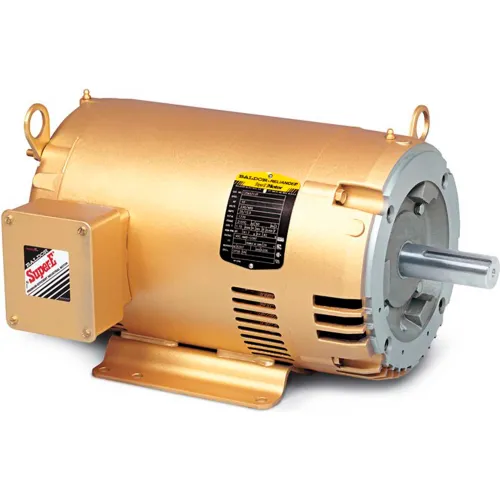

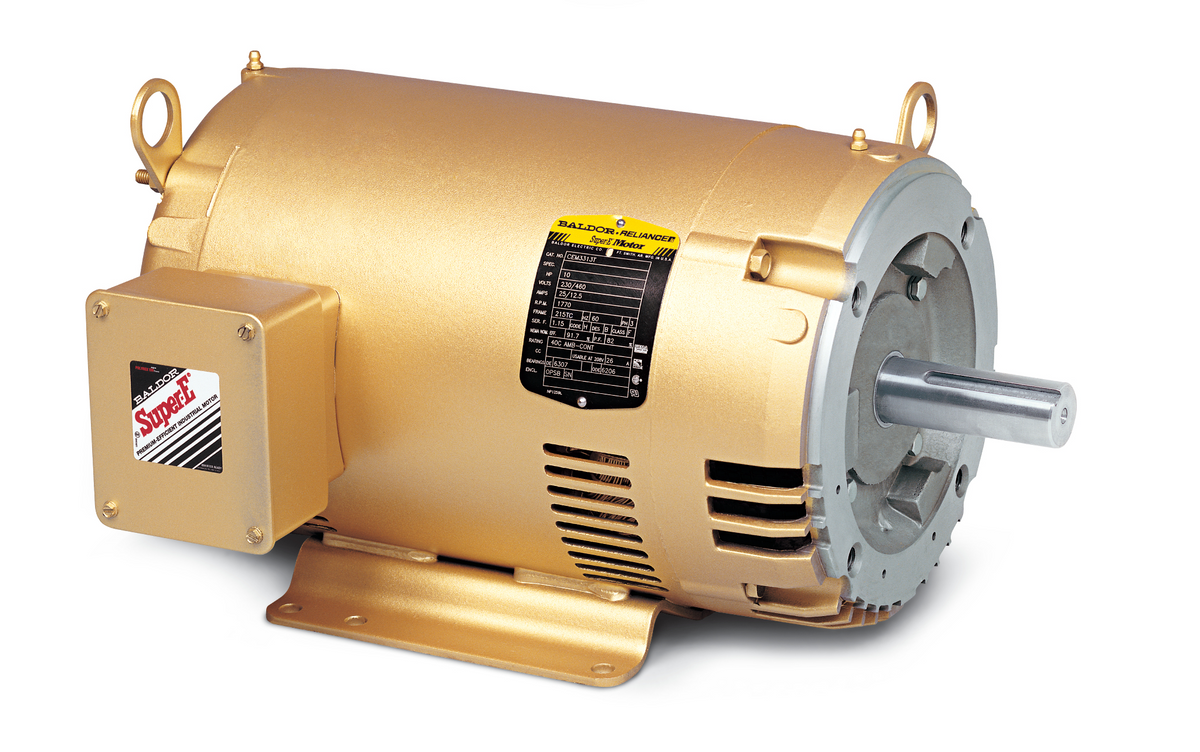

Baldor Electric, CEM3218T, 5HP, 1750RPM, 3PH, 460V;230V;208V, 184TC Frame, C-Face Flange, Foot Mount, Open, General Purpose Motor

Baldor Electric, CEM3218T, 5HP, 1750RPM, 3PH, 460V;230V;208V, 184TC Frame, C-Face Flange, Foot Mount, Open, General Purpose Motorzoom

Attributes

Key Value
Amps13.2/14/6.6
ApplicationGeneral Purpose
BearingsBall
Comments60 Hz
CompositionSteel
ConstructionRolled Steel
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency89.5%
Efficiency %89.5 %
EnclosureOPSB, Open
Enclosure MaterialSteel
Enclosure TypeOPSB, OPSB (Open Slotte.
Estimated Weight87.00
Family NameThree Phase Open Family
Family SeriesBaldor Motors
FL Amps14-13.2/6.6
FL Efficiency89.5
Frame184TC
Frequency60 Hz
Gross Weight0 lbs
Hertz60
Horsepower5 hp
HP5
Hz60
IncludesConduit Box
Insulation ClassF
Inverter DutyYes
ItemGeneral Purpose Motor
Item NumberCEM3218T
Length Less Shaft13 3/4 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #36B102S270G1
Manufacturers Warranty .3 yr
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, C-Face/Rigid
Mounting TypeFoot Mount
Nameplate RPM1,750
NEMA Frame184TC
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Speeds1
Overall Length16 1/2 in, 16.5"
Part NumberCEM3218T
Phase3, 3 Phase
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1700 - 1800, 1750 RPM, .
RPM Range1,701-1,800
SeriesGO3 Series
Service Factor1.15
Shaft Dia.1 1/8 in
Shaft Diameter1.125"
Shaft Length2 3/4 in
Ship Weight87 lbs.
Speed (RPM)1750
StandardsCSA, CSA EEV, UR
UPC Code781568541975
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comCEM3218T712.451In StockBaldor712.45 @ 1
steinerelectric.comPDW~7285104801.01In StockBaldor-Reliance801.0 @ 1
AmazonTPB00AED711E874.561In Stock10Baldor874.56 @ 1
thumbzoomPurvisCEM3218T937.111In StockBaldor-Reliance937.11 @ 1
thumbzoomemotorpro.comCEM3218T947.551In StockBaldor87.0947.55 @ 1
thumbzoomGalcoCEM3218T-BLDR1041.521In StockBaldor1041.52 @ 1
thumbzoomWalker IndustrialCEM3218T1048.471In StockBaldor1048.47 @ 1
thumbzoomGlobal IndustrialWBB3879841071.01In StockBaldor-Reliance1071.0 @ 1
thumbzoomZoroG83330961081.9911Baldor-Reliance86.961081.99 @ 1
motorsandcontrol.comCEM3218T1092.151In StockBaldor Reliance87.01092.15 @ 1
thumbzoompumpproducts.comCEM3218T1241.171In StockBaldor1241.17 @ 1
thumbzoomcbtcompany.comCEM3218T1242.441In StockBaldor Reliance1242.44 @ 1
us.rs-online.com719439021336.781In StockBaldor-Reliance1336.78 @ 1
kirbyrisk.com29319331374.741In StockBaldor1374.74 @ 1
motionindustries.com044953581512.731In StockBaldor-Reliance1512.73 @ 1
thumbzoomRaptor SuppliesAJ6PMM1715.4674551In StockBALDOR MOTOR1715.467455 @ 1
thumbzoomsustainablesupply.comC15496721985.861In StockBaldor Electric86.961985.86 @ 1
