Baldor Electric EM3664T

B07FN3Y7ZB

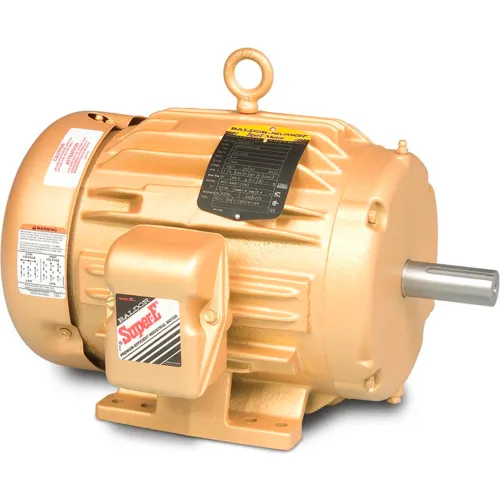

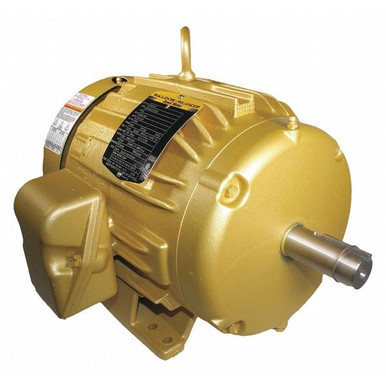

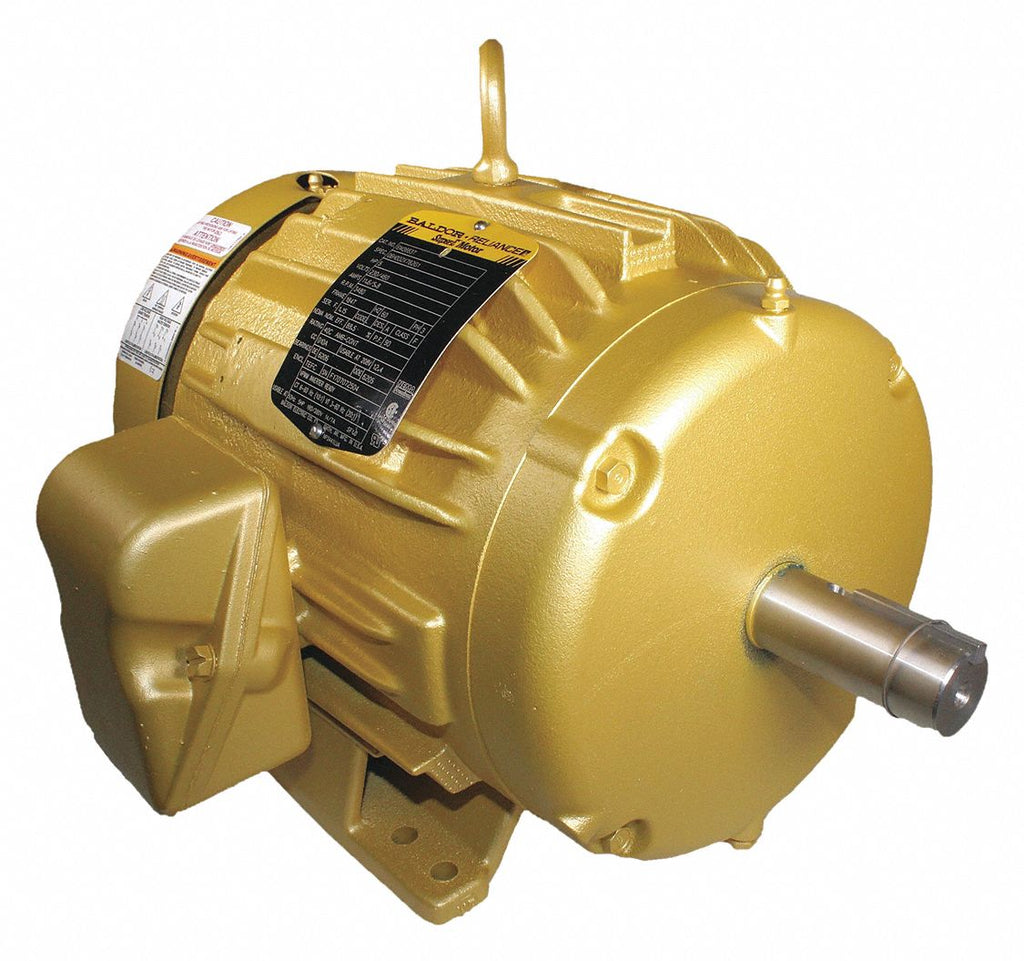

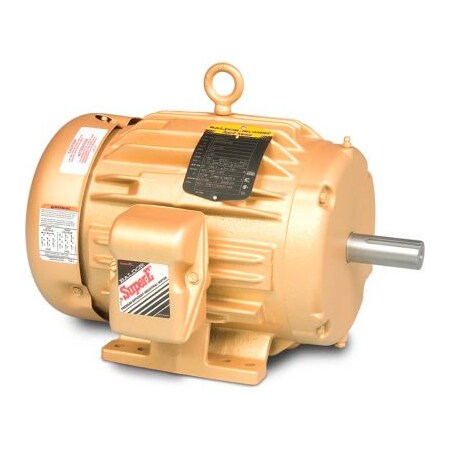

Baldor Electric, EM3664T, 2HP, 1165RPM, 3PH, 460V;230V, 184T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Baldor Electric, EM3664T, 2HP, 1165RPM, 3PH, 460V;230V, 184T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
ApplicationGeneral Purpose
Baldor Type0640M
BaseRG
Bearing TypeBall
BrandBaldor-Reliance
Catalog NumberEM3664T
ColorGold
CompositionCast Iron
ConstructionRolled Steel
Current Stock3
DE Bearing6206
Drive End Flange TypeStandard
Efficiency %88.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTEFC
Estimated Weight109.00
Family NameThree Phase Enclosed Fa.
Family SeriesBaldor Motors, M Series
FL Amps6.3/3.15
FL Efficiency88.5
Frame184T
Frame Size184T
Full Load Amps7.3-7/3.5
Full Load Efficiency88.5
Gross Weight113 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassF
International ShippingNo
Inverter DutyNo
Item NumberEM3664T
Lead TimeExpected to ship in 1-2.
Locked Rotor CodeK
ManufacturerBaldor, Baldor Reliance
Manufacturer Part NumberEM3664T
MountingF1, Foot Mount
Mounting TypeFooted, Foot Mount, Rig.
MpnEM3664T
NEMA Design CodeB
NEMA Frame184T
Net Weight113 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing6205
Overall Length15.24 "
Overload ProtectionNone
Part NumberEM3664T
Phase3, 3 Phase
Power Factor61
Product SeriesM
Product TypeGeneral Purpose
Rating40C AMB-CONT
RPM1165, 1165 RPM, 1,200 R.
SeriesGE3 Series
Service Factor1.15
SKUZO-G8450391
Specification Number06C101W421E7
Speed (RPM)1165
SubCategoryMotors/Ac Motors
UPC781568204764
UPC Code781568204764
Usable at 208 Volts7.3
Voltage230V, 460V, 208-230/460.
Voltage (AC)230 VAC, 460 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comEM3664T870.851In StockBaldor870.85 @ 1
steinerelectric.comPDW~14768221090.01In StockBaldor-Reliance1090.0 @ 1
thumbzoomMRO Supply248051098.811In StockBaldor1098.81 @ 1
cbtcompany.comEM3664T1204.991In StockBaldor Reliance1204.99 @ 1
factorysupplyoutlet.comTV18MS1269.131In StockBaldor-Reliance1269.13 @ 1
thumbzoomgalesburgelectric.comEM3664T1281.951In StockBaldor1281.95 @ 1
thumbzoomGalcoEM3664T-BLDR1281.951In StockBaldor113.01281.95 @ 1
thumbzoomWalker IndustrialEM3664T1281.951In StockBaldor1281.95 @ 1
thumbzoomGlobal IndustrialWBB3900361309.01In StockBaldor-Reliance1309.0 @ 1
motorsandcontrol.comEM3664T1335.361In StockBaldor Reliance109.01335.36 @ 1
thumbzoomPurvisEM3664T1352.041In StockBaldor-Reliance1352.04 @ 1
standardelectricsupply.com24149651435.021In StockBaldor Electric1435.02 @ 1
us.rs-online.com719442211481.421In StockBaldor-Reliance1481.42 @ 1
thumbzoomsimsupply.comZO-G84503911517.0913Baldor-Reliance1517.09 @ 1
thumbzoompumpproducts.comEM3664T1518.01In StockBaldor1518.0 @ 1
kirbyrisk.com19748841680.881In StockBaldor1680.88 @ 1
thumbzoomsustainablesupply.comC27573691844.191In StockBaldor Electric109.01844.19 @ 1
thumbzoomRaptor SuppliesAJ6UDD2274.24301651In StockBALDOR MOTOR2274.2430165 @ 1
thumbzoomZoroG8049309062288.121In StockBaldor-Reliance2288.12 @ 1
