- mpnVEM3581T-5
- brandname: Baldor
- manufacturername: Baldor

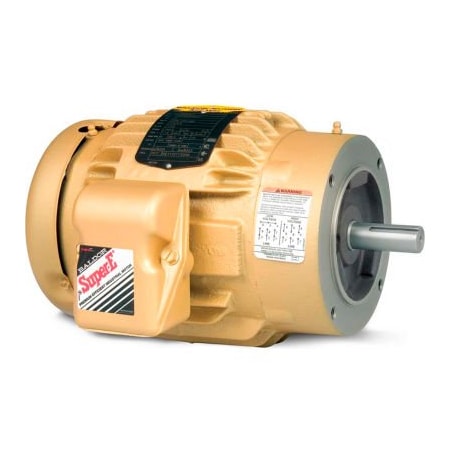

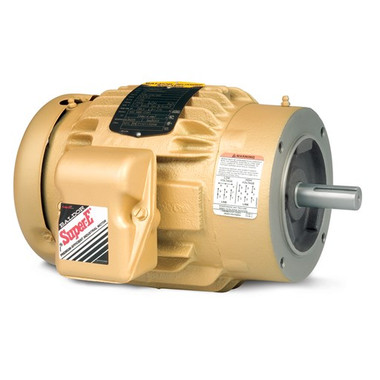

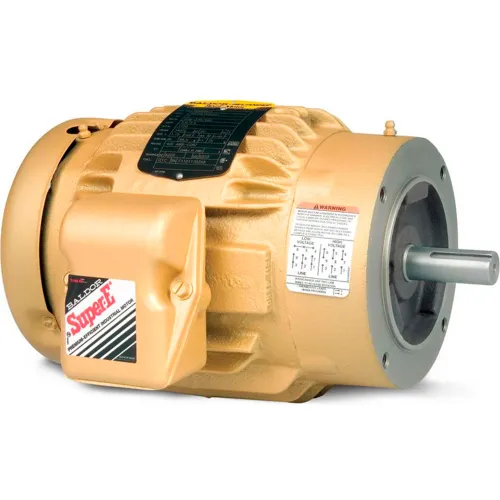

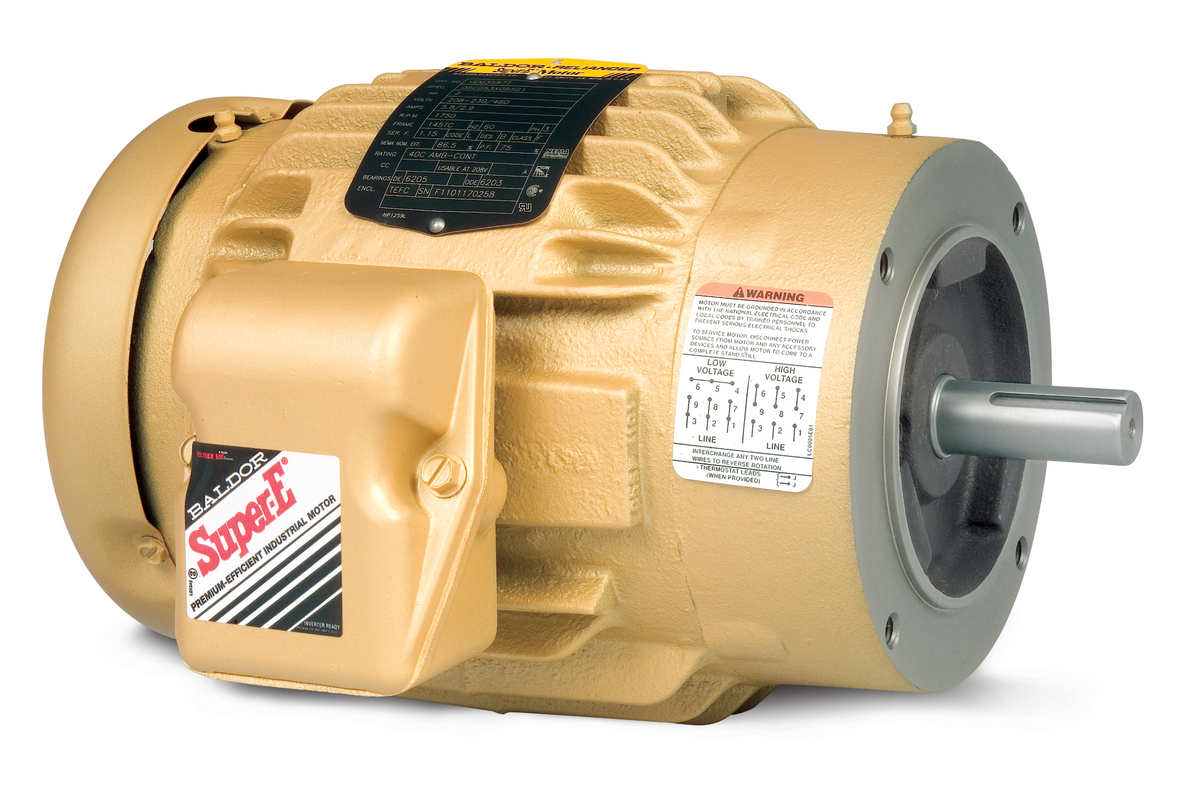

Baldor VEM3581T-5 1HP 1750RPM 3PH 60HZ 143TC 0524M TEFC F1
- Brand: Baldor Electric Motors
- PartNumber: VEM3581T-5
Attributes
| Key | Value |
|---|
| Amps | 1.2 |
| Application | General Purpose |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency % | 85.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Iron |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 53.00 |
| Family Name | Three Phase Enclosed Fa. |
| Family Series | Baldor Motors, VM Series |
| FL Amps | 1.2 |
| FL Efficiency | 85.5 |
| Frame | 143TC |
| Gross Weight | 56 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes, No |
| Item Number | VEM3581T-5 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 05C053X127G1 |
| Manufacturer Part Number | VEM3581T-5 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | C-Face, Footless |
| Mounting Type | C-Face Footless, Footle. |
| NEMA Frame | 143TC |
| Net Weight | 56 lbs |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Speeds | 1 |
| Overall Length | 13.03 ", 13.03" |
| Overload Protection | None |
| Package Quantity | 1 |
| Part Number | VEM3581T-5 |
| Phase | 3, 3 Phase |
| Product Series | VM |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,800 RPM, 1760, 1700 -. |
| Series | GE3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 1.188" |
| Ship Weight | 53 lbs. |
| Speed (RPM) | 1760 |
| UPC Code | 781568154083 |
| Voltage | 575V, 575 |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B007ZQRG6S | 778.67 | 1 | In Stock | 3 | Baldor Electric | | 778.67 @ 1 |
 | MRO Supply | 25261 | 868.48 | 1 | In Stock | | Baldor | | 868.48 @ 1 |
 | emotorpro.com | VEM3581T-5 | 915.7 | 1 | In Stock | | Baldor | 53.0 | 915.7 @ 1 |
| Applied Industrial | 101002360 | 961.86 | 1 | In Stock | | Baldor-Reliance | | 961.86 @ 1 |
| factorysupplyoutlet.com | BW72QC | 1010.69 | 1 | In Stock | | Baldor-Reliance | | 1010.69 @ 1 |
 | galesburgelectric.com | VEM3581T-5 | 1013.23 | 1 | In Stock | | Baldor | | 1013.23 @ 1 |
 | Galco | VEM3581T-5-BLDR | 1013.23 | 1 | In Stock | | Baldor | 56.0 | 1013.23 @ 1 |
 | Walker Industrial | VEM3581T-5 | 1013.23 | 1 | In Stock | | Baldor | | 1013.23 @ 1 |
 | Global Industrial | WBB391195 | 1015.0 | 1 | In Stock | | Baldor-Reliance | | 1015.0 @ 1 |
| motorsandcontrol.com | VEM3581T-5 | 1055.44 | 1 | In Stock | | Baldor Reliance | 53.0 | 1055.44 @ 1 |
| us.rs-online.com | 71944433 | 1170.87 | 1 | In Stock | | Baldor-Reliance | | 1170.87 @ 1 |
 | pumpproducts.com | VEM3581T-5 | 1199.0 | 1 | In Stock | | Baldor | | 1199.0 @ 1 |
 | motionindustries.com | 00534123 | 1461.93 | 1 | In Stock | | Baldor-Reliance | | 1461.93 @ 1 |
 | Zoro | G004930799 | 1944.99 | 1 | In Stock | | Baldor-Reliance | | 1944.99 @ 1 |
 | Raptor Supplies | AJ6YQM | 3017.8617885 | 1 | In Stock | | BALDOR MOTOR | | 3017.8617885 @ 1 |
