Belden 9451P 008U1000

mpn9451P 008U1000
brandname: Belden
manufacturername: Belden

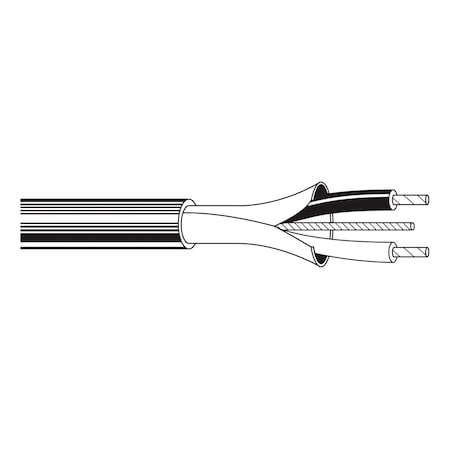

Belden 9451P, Plenum Multi-Conductor Single-Pair Cable

Belden 9451P, Plenum Multi-Conductor Single-Pair Cable

zoom

Brand: Belden
PartNumber: 9451P 008U1000
Model: 9451P 008U1000
PackageQuantity: 1
Binding: Electronics
Manufacturer: Belden
Label: Belden

Attributes

Key	Value
Application	For audio, control and .
Base Product Number	9451P
Cable Type	Multi-Conductor, STP
Category	Cables, Wires
Conductor Insulation	Fluorinated Ethylene-Pr.
Conductor Material	Tinned Copper (TC), Cop.
Conductor Strand	7/30
Configuration	1 Pair
Features	-
Fire Rating - Data Cable	Plenum
Indoor / Outdoor	Indoor
Insulated / Uninsulated	Insulated
Insulation Material	Fluorinated Ethylene Pr.
Jacket (Insulation) Dia.	0.127" (3.23mm)
Jacket (Insulation) Mat.	Low Smoke Poly-Vinyl Ch.
Jacket (Insulation) Thi.	-
Jacket Color	Gray
Jacket Material	Low Smoke Polyvinyl Chl.
Length	1000.0' (304.8m), 1000 .
Max. Voltage	300V
Mfr	Belden Inc.
NEC Article and Type	CMP
Number of Conductor Pai.	1
Number of Conductors	2 (1 Pair Twisted), 2
Operating Temperature	-20?C ~ 75?C
Outer Diameter	0.127 in.
Package	Spool
Packaging	Box
Part Status	Active
Plenum / Riser Rated	Plenum Rated
Product Header	Paired Overall Beldfoil.
Ratings	-
Series	9451P Series, -
Shield Coverage	100%
Shield Material	Aluminum/Polyester Tape.
Shield Type	Foil
Shielding	Foil
Standards	CEC/C(UL) CMP; NFPA 262.
Stranding	7x30, 7 x 30
Temp. Rating	60?C
Temperature, Rating	-20 to 75 C
Usage	-
Voltage	300 V
Wire Gauge	22 AWG
Wire Material	Tinned Copper
Wire Size	22 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1147247	694.99	1	In Stock	30	Belden Bav		694.99 @ 1
	Digi-Key	8810731	983.07	1	In Stock		Belden Inc.		983.07 @ 1
	Newark	70J9546	1067.54	1	17000		BELDEN		1067.54 @ 1
	us.rs-online.com	70004549	1113.95	1	In Stock		Belden		1113.95 @ 1
