Unknown 5204 ZZ/C3 PRX

B07WTRK2RG

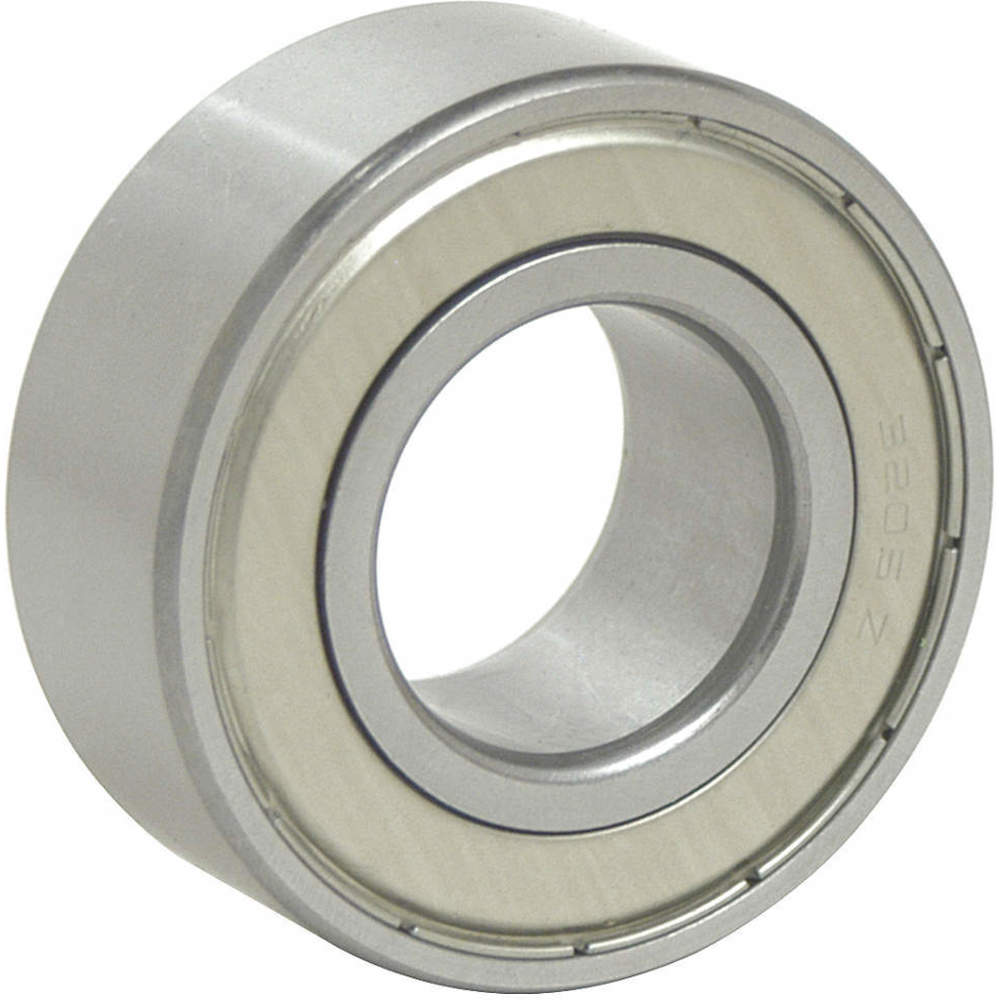

Angular Contact Ball Bearing, 2700Lb.

Angular Contact Ball Bearing, 2700Lb.zoom

Attributes

Key Value
ABEC Rating1
Ball MaterialAlloy Steel
Ball Material GradeAISI 52100
Bearing Industry Number3204/5204
Bore Diameter20 mm
Bore Diameter Tolerance+/-0.1 mm
Cage MaterialPolyamide
ClosureDouble Shielded
Contact Bearing TypeAngular Contact
Dynamic Radial Load Cap.19,600 N
ItemAngular Contact Ball Be.
Load DirectionRadial, Thrust
Lubricant MaterialSRI 2 Grease, Polyrex E.
Matched Bearing TypeNot Matched/Single Bear.
Matched Mount TypeNot Applicable
Maximum Speed12,000 RPM
Maximum Temperature175 Degrees C
Minimum Temperature-40 Degrees C
Number of RowsTwo
Outside Diameter47 mm
Outside Diameter Tolera.+/-0.01 mm
Overall Width20.6 mm
Ring MaterialAlloy Steel
Ring Material GradeAISI 52100
Shield MaterialCarbon Steel
StandardsISO Certified 9001
Static Radial Load Capa.12,010 N
System of MeasurementMetric

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger35HY8916.521430BL16.52 @ 1
grainger.caWWG35HY8920.656438761In StockBL0.3520.65643876 @ 1
thumbzoomRaptor SuppliesAG4YRC22.67103151In StockBL22.6710315 @ 1
