- mpn46092
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

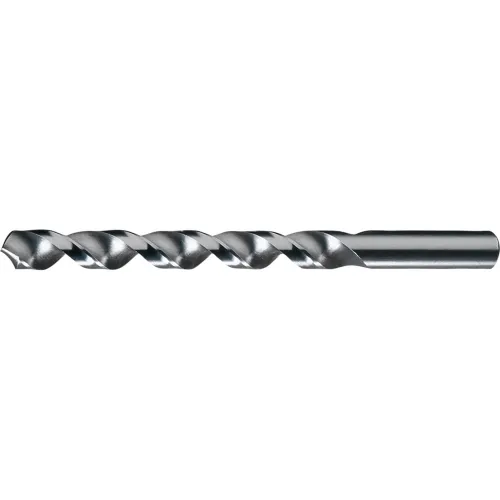

Chicago-Latrobe 46092 150B Jobber Length Drill Bit, 22 Drill - Wire, 0.157 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 46092
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Aluminum, Carbon Steel,. |
| Cutting Depth | 2 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1570 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1570", 0.157 |
| Diameter (Wire/Let) | 22 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #22 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0472 in |
| Drill Size - Decimal In. | 0.157 in |
| Drill Size - Wire | #22 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 2 in, 2.0000" |
| Flute Length (Metric) | 50.80mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/2 in |
| Number of Flutes | 2 |
| Overall Length | 3 1/8 in, 3.1250", 3-1/. |
| Overall Length (Metric) | 79.38mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 5/32 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1570", 0.157, 0.157 i. |
| Shank Size (Metric) | 3.99mm |
| Shank Type | Straight |
| Style | 150B |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #22 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2824068 | 1.89 | 1 | 11 | | Chicago-Latrobe | 0.01 | 1.89 @ 5 |
 | MRO Supply | 6129031 | 1.94 | 19 | 5 | | Chicago-Latrobe | | 1.94 @ 19 |
 | Global Industrial | WBB2547046 | 1.9854 | 12 | 5 | | Chicago-Latrobe | | 1.9854 @ 12 |
 | Megadepot | 46092 | 2.54 | 1 | 5 | | Chicago-Latrobe | | 2.54 @ 5 |
 | heavydutydepot.com | 46092 | 2.54 | 40 | 5 | | Chicago-Latrobe | | 2.54 @ 40 |
| Grainger | 434G76 | 3.5 | 12 | 5 | 10 | CHICAGO-LATROBE | | 3.5 @ 12 |
 | Guardian | 81142226 | 4.19 | 1 | 5 | | Chicago-Latrobe | | 4.19 @ 5 |
 | National Supply Network | 81142226 | 5.148 | 1 | 5 | | Chicago-Latrobe | | 5.148 @ 5 |
