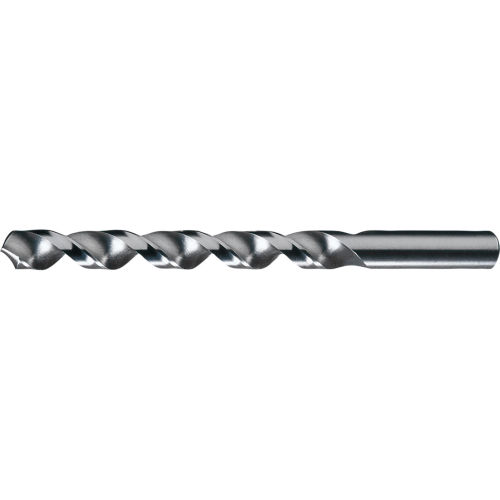

Chicago Latrobe 150B High-Speed Steel Jobber Length Drill Bit, Fast Spiral, Uncoated (Bright), Round Shank, 118 Degree Conventional Point, Wire Size #34 (Pack of 12)
- Brand: Chicago Latrobe
- PartNumber: 46104
- Model: 46104
- Size: #34
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Cutting Depth | 1-1/2 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1110 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.111, 0.1110" |
| Diameter (Wire/Let) | 34 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #34 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0333 in |
| Drill Size - Decimal In. | 0.111 in |
| Drill Size - Wire | #34 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 1 1/2 in, 1-1/2 in, 1.5. |
| Flute Length (Metric) | 38.10mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/8 in |
| Number of Flutes | 2 |
| Overall Length | 2.6250", 2 5/8 in, 2-5/. |
| Overall Length (Metric) | 66.67mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 7/64 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.111, 0.111 in Dia x 1. |
| Shank Size (Metric) | 2.82mm |
| Shank Type | Straight |
| Style | 150B |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #34 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 46104 | 1.69 | 1 | 12 | | Chicago-Latrobe | | 1.69 @ 12 |
 | MRO Supply | 6129043 | 1.69 | In Stock | 12 | | Chicago-Latrobe | | 1.69 @ 21 |
 | heavydutydepot.com | 46104 | 1.69 | 60 | 12 | | Chicago-Latrobe | | 1.69 @ 60 |
 | Zoro | G2824269 | 2.19 | 1 | 23 | | Chicago-Latrobe | 0.01 | 2.19 @ 12 |
 | usmegastore.com | 46104 | 2.41 | 1 | 12 | | Chicago-Latrobe | | 2.41 @ 12 |
 | Guardian | 81142341 | 3.55 | 1 | 12 | | Chicago-Latrobe | | 3.55 @ 12 |
 | National Supply Network | 81142341 | 3.7925 | 12 | 12 | | Chicago-Latrobe | | 3.7925 @ 12 |
 | Global Industrial | WBB2547205 | 20.9052 | 1 | 12 | | Chicago-Latrobe | | 20.9052 @ 12 |
