- mpn46227
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

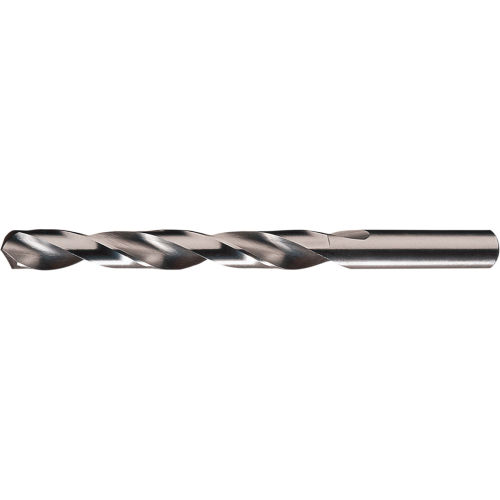

5.375" HSS Bright 118 Deg. Jobber Length Drill Bit (6 Pieces)
- Brand: Chicago Latrobe
- PartNumber: 46227
- Manufacturer: CHICAGO-LATROBE
- Label: CHICAGO-LATROBE
Attributes
| Key | Value |
|---|
| Applicable Materials | Brass, Bronze, Dura-Pla. |
| Cutting Depth | 3-15/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4219 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4219", 0.421875 |
| Diameter (Fraction) | 27/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 27/64 in |
| Drill Construction | Low Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1267 in |
| Drill Size - Decimal In. | 0.4219 in |
| Drill Size - Fraction | 27/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 3.9375", 3 15/16 in, 3-. |
| Flute Length (Metric) | 100.01mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 15/16 in |
| Number of Flutes | 2 |
| Overall Length | 5 3/8 in, 5.3750", 5-3/. |
| Overall Length (Metric) | 136.53mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 150C |
| Shank Configuration | Straight |
| Shank Dia. | 27/64 in |
| Shank Length | 1 7/16 in, 1.4375" |
| Shank Length (Metric) | 36.51mm |
| Shank Size | 27/64 in Dia x 1-7/16 i. |
| Shank Size (Metric) | 10.72mm |
| Shank Type | Straight |
| Style | 150C |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | 27/64" |
