- mpn46281
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

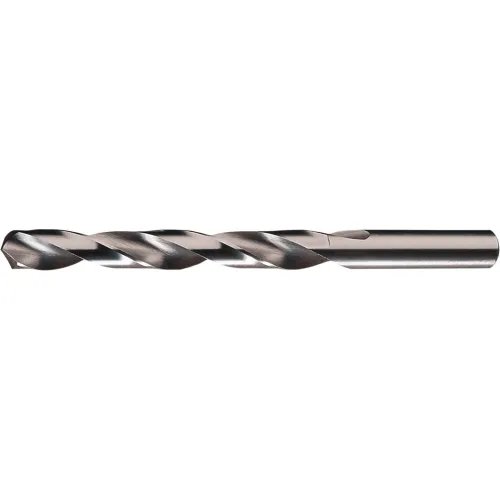

Chicago-Latrobe 46281 150C Jobber Length Drill Bit, 11 Drill - Wire, 0.191 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 46281
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Brass, Bronze, Dura-Pla. |
| Application | Chip Ejection, Brass, B. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 2-5/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1910 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.191, 0.1910" |
| Diameter (Wire/Let) | 11 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #11 |
| Drill Construction | Low Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0574 in |
| Drill Size - Decimal In. | 0.191 in |
| Drill Size - Wire | #11 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 5/16 in, 2-5/16 in, 2. |
| Flute Length (Metric) | 58.74mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 15 Degrees |
| Item | Jobber Length Drill Bit |
| Left/Right Hand | Right |
| List Number | 150C |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 3/4 in |
| Measurement System | Wire |
| Number of Flutes | 2 |
| Overall Length | 3.5000", 3 1/2 in, 3-1/. |
| Overall Length (Metric) | 88.90mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N, O |
| Series | 150C |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.191 in Dia x 1.1875 i. |
| Shank Size (Metric) | 4.85mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 150C |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129133 | 3.53 | 10 | 12 | | Chicago-Latrobe | | 3.53 @ 12 |
 | heavydutydepot.com | 46281 | 3.69 | 28 | 12 | | Chicago-Latrobe | | 3.69 @ 28 |
 | usmegastore.com | 46281 | 3.71 | 1 | 12 | | Chicago-Latrobe | | 3.71 @ 12 |
 | Global Industrial | WBB2547577 | 3.8524 | 12 | 12 | | Chicago-Latrobe | | 3.8524 @ 12 |
 | Zoro | G2824987 | 4.66 | 12 | 12 | 8 | Chicago-Latrobe | 0.02 | 4.66 @ 12 |
 | sustainablesupply.com | C2764447 | 5.5 | 1 | 12 | | Chicago-Latrobe | 0.02 | 5.5 @ 12 |
 | bscsource.com | 46281 | 7.19 | 1 | 12 | | Chicago-Latrobe | | 7.19 @ 12 |
 | Guardian | 81385114 | 8.32 | 1 | 12 | | Chicago-Latrobe | | 8.32 @ 12 |
