- mpn49388
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

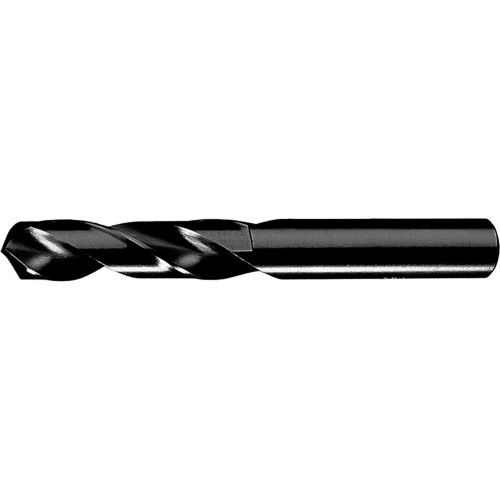

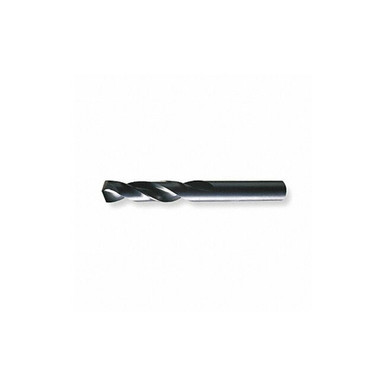

Chicago-Latrobe 49388 159 Heavy Duty Screw Machine Drill, 18 Drill - Wire, 0.1695 in Drill - Decimal Inch, HSS, Black Steam Oxide (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 49388
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Chicago-Latrobe |
| Current Stock | 42 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1695 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1695", 0.1695 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #18 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0351 in |
| Drill Size - Decimal In. | 0.1695 in |
| Drill Size - Wire | #18 |
| Drill Size System | Wire |
| Drill Style | Screw Machine Drill |
| Finish | Black Steam Oxide |
| Flute Length | 1.0625", 1-1/16 in, 1 1. |
| Flute Length (Metric) | 26.99mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| List Number | 159 |
| Material | HSS |
| Maximum Drilling Depth | 1 1/16 in |
| Measurement System | Imperial |
| Mpn | 49388 |
| Number of Flutes | 2 |
| Overall Length | 2-1/8 in, 2.1250", 2 1/. |
| Overall Length (Metric) | 53.97mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 159 |
| Shank Configuration | Straight |
| Shank Dia. | 5/32 in |
| Shank Length | 1.0625", 1 1/16 in |
| Shank Length (Metric) | 26.99mm |
| Shank Size | 0.1695 in Dia x 1.0625 . |
| Shank Size (Metric) | 4.31mm |
| Shank Type | Straight |
| SKU | ZO-G3116967 |
| Style | 159 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | #18 |
| Type | Heavy Duty |
| UPC | 662355493885 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6130345 | 1.42 | 25 | 70 | | Chicago-Latrobe | | 1.42 @ 25 |
 | Megadepot | 49388 | 1.46 | 1 | 70 | | Chicago-Latrobe | | 1.46 @ 1 |
 | heavydutydepot.com | 49388 | 1.46 | 69 | 70 | | Chicago-Latrobe | | 1.46 @ 69 |
 | usmegastore.com | 49388 | 1.91 | 1 | 52 | | Chicago-Latrobe | | 1.91 @ 1 |
 | Zoro | G3116967 | 1.95 | 1 | 449 | | Chicago-Latrobe | 0.15 | 1.95 @ 1 |
 | sustainablesupply.com | C1464390 | 2.35 | 1 | 70 | | Chicago-Latrobe | 0.01 | 2.35 @ 1 |
 | Raptor Supplies | AB2HHH | 2.3799555 | 1 | 70 | | CHICAGO-LATROBE | | 2.3799555 @ 1 |
 | bscsource.com | 49388 | 2.39 | 1 | 70 | | Chicago-Latrobe | | 2.39 @ 1 |
 | Guardian | 81383184 | 3.46 | 1 | 70 | | Chicago-Latrobe | | 3.46 @ 1 |
 | simsupply.com | ZO-G3116967 | 8.12 | 1 | 42 | | Chicago-Latrobe | | 8.12 @ 1 |
 | National Supply Network | 81383184 | 12.57 | 1 | 52 | | Chicago-Latrobe | | 12.57 @ 1 |
 | Global Industrial | WBB2547436 | 17.4 | 1 | 70 | | Chicago-Latrobe | | 17.4 @ 1 |
