- mpn4JMX7
- brandname: Dayton
- manufacturername: Dayton

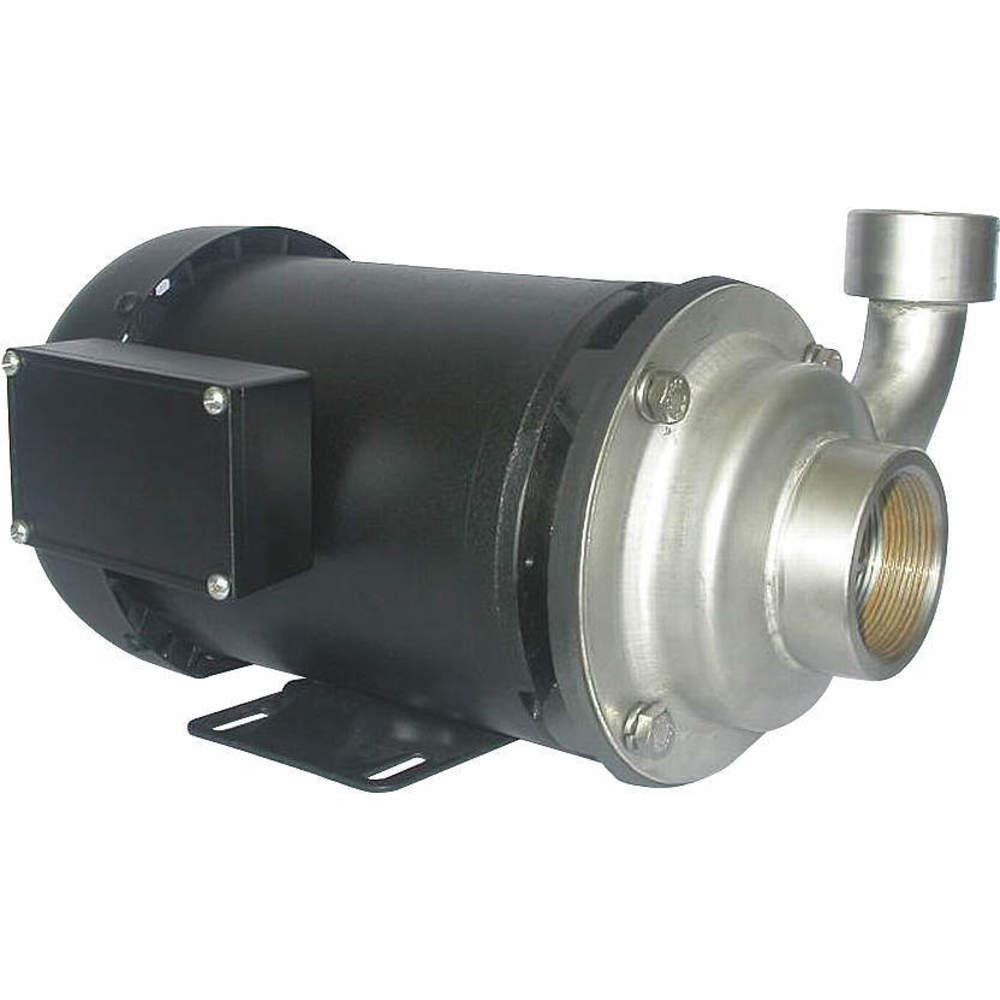

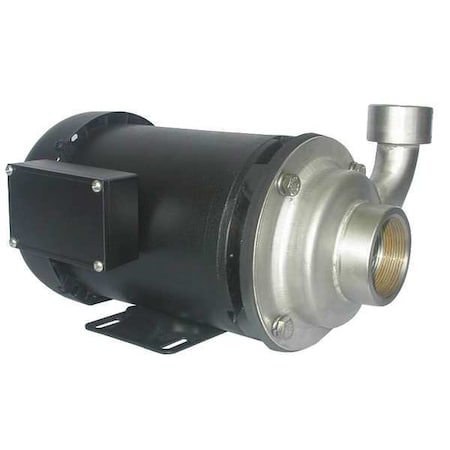

Pump, 2 HP,208-230/460V,9.6-9.2/4.6 Amp
- Brand: Dayton
- PartNumber: 4JMX7
- Model: 4JMX7
- Color: Stainless Steel
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Agency Compliance | CUS |
| Amps | 9.6-9.2/4.6 |
| Application | Liquids Transfer, Circu. |
| Bearing Type | Ball |
| Best Efficiency GPM @ H. | 55 gpm @ 50 ft, 55 gpm . |
| Best Efficiency Range G. | 26 to 100 gpm @ 60 to 1. |
| Brand | Dayton |
| Cord Length | Not Applicable |
| Current Stock | 3 |
| Discharge Pipe Size | 1 1/2 in |
| Drain Plug | No |
| Duty | Continuous |
| GPM of Water @ 10 Ft. o. | 114 |
| GPM of Water @ 15 Ft. o. | 110 |
| GPM of Water @ 20 Ft. o. | 109 |
| GPM of Water @ 25 Ft. o. | 102 |
| GPM of Water @ 30 Ft. o. | 92 |
| GPM of Water @ 40 Ft. o. | 85 |
| GPM of Water @ 5 Ft. of. | 130 |
| GPM of Water @ 50 Ft. o. | 55 |
| GPM of Water @ 60 Ft. o. | 24 |
| Height | 7 3/4 in, 7-3/4" |
| Housing Material | 304 Stainless Steel |
| HP | 2 hp, 2 |
| Hz | 60 |
| Impeller Material | 304 SS |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet | 2" NPT, 2 in NPT |
| Inlet Pressure | 121 PSI |
| Intake Pipe Size | 2 in |
| International Shipping | No |
| Item | Centrifugal Pump, Chemi. |
| Length | 14-9/16", 14 9/16 in |
| Length (Straight Wirewa. | 14 9/16 in |
| Manufacturers Warranty . | 1 yr., 1 yr |
| Max. Case Pressure | 150 PSI |
| Max. Dia. Solids | 1/8", 1/8 in |
| Max. Fluid Viscosity | 31 SSU |
| Max. GPM @ Head | 130 gpm @ 5 ft, 130 gpm. |
| Max. Head | 68 ft., 68 ft |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Specific Gravity | 1.0 |
| Min. GPM @ Head | 24 gpm @ 60 ft. |
| Motor Enclosure | TEFC |
| Motor RPM | 3,450 |
| Motor Type | 3-Phase |
| Mpn | 4JMX7 |
| NEMA/IEC Frame | 56J |
| Outlet | 1-1/2" NPT, 1-1/2 in NPT |
| Overall Height | 7.8 in |
| Overall Length | 14.6 in |
| Overall Width | 10.5 in |
| Phase | 3 |
| Port Rotation | 90 Degrees Increments |
| Screw Material | Stainless Steel |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 7/16 in |
| SKU | ZO-G2059294 |
| Solid Diameter (Maximum) | 0.13 in |
| SubCategory | Pumps |
| UPC | 190735326800 |
| Voltage | 208-230/460 |
| Wetted Materials | Carbon, Ceramic, 304 St. |
| Width | 10-1/2", 10 1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2059294 | 922.86 | 1 | 8 | | Dayton | 52.0 | 922.86 @ 1 |
 | simsupply.com | ZO-G2059294 | 1070.55 | 1 | 3 | | Dayton | | 1070.55 @ 1 |
 | sustainablesupply.com | C1740262 | 1144.81 | 1 | In Stock | | Dayton | 52.0 | 1144.81 @ 1 |
| grainger.ca | GGM4JMX7 | 1475.01198544 | 1 | In Stock | | DAYTON | 52.0 | 1475.01198544 @ 1 |
 | Raptor Supplies | AD8ERG | 1516.4115525 | 1 | In Stock | | DAYTON | | 1516.4115525 @ 1 |
