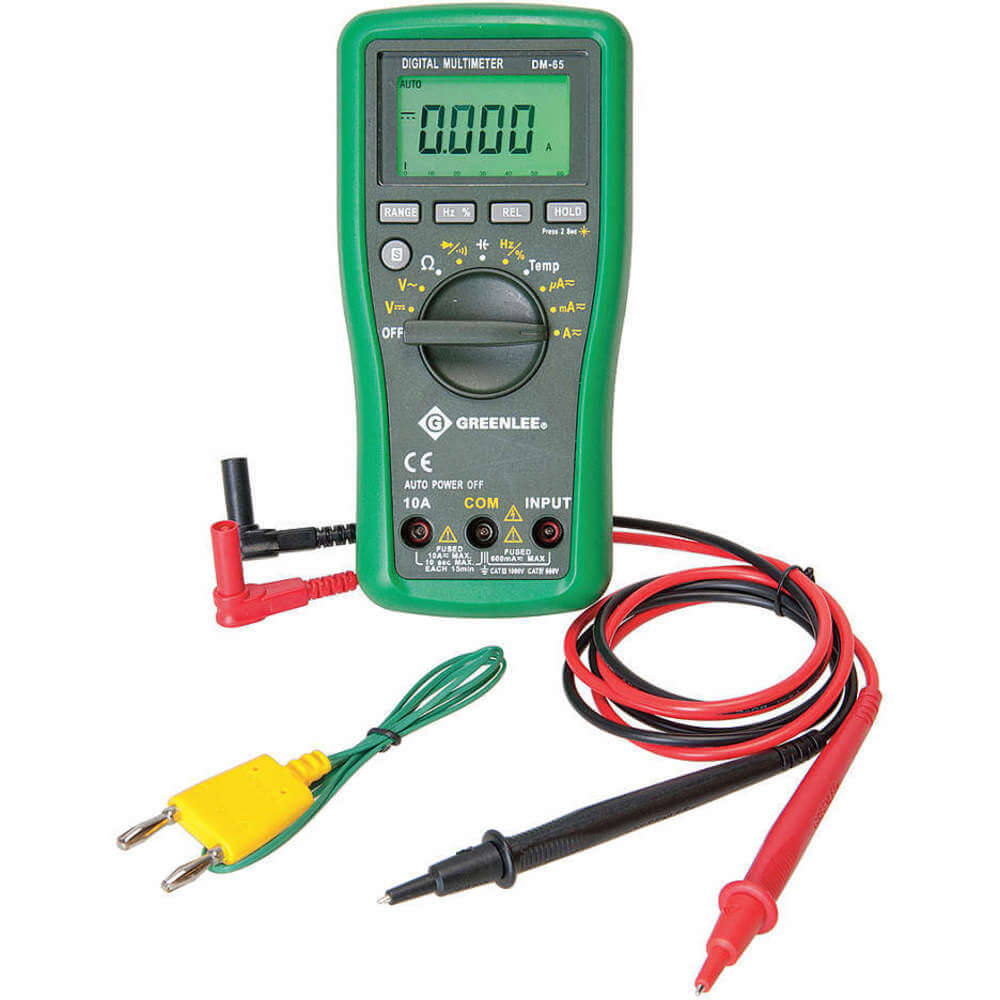

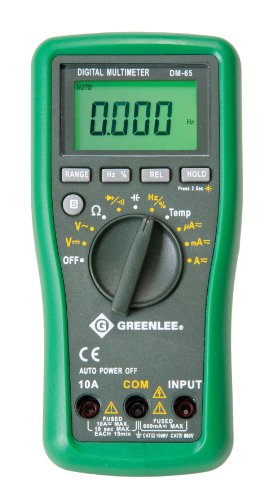

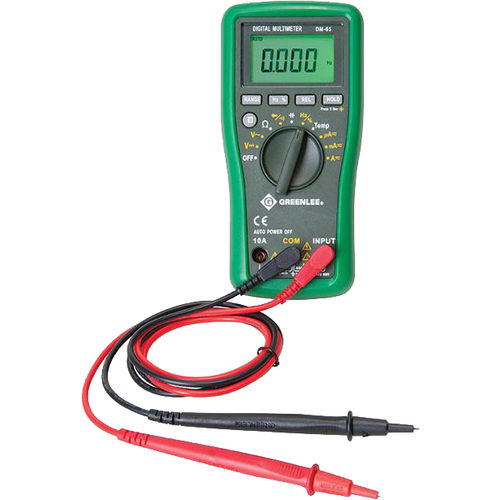

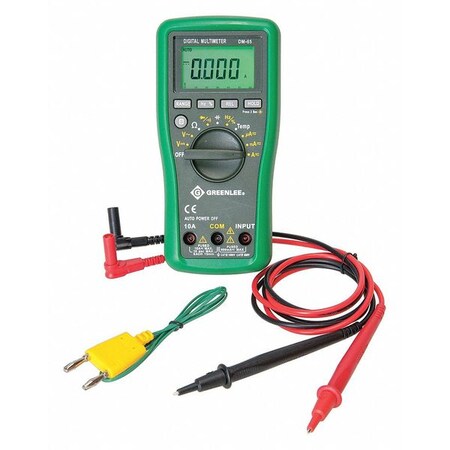

Greenlee DM-65

B007ORQ7HW

Greenlee - Dmm 1000V Ac/Dc 10A Cap Temp, Elec Test Instruments (DM-65),Black

Greenlee - Dmm 1000V Ac/Dc 10A Cap Temp, Elec Test Instruments (DM-65),Blackzoom

Attributes

Key Value
AC ResponseAverage
AC Response CalculationAverage
Accuracy % (VAC)0.8 %
Accuracy % (VDC)0.8 %
Amperage Rating600, 6000 ?A; 60, 600 m.
Amperage Rating:600, 6000 ?A; 60, 600 m.
Audible ContinuityYes
Auto Power OffYes
Auto RangingYes
BacklightYes
Bar GraphYes
Bar Graph IncludedYes
Basic DC Accuracy+/-0.80% of Reading + 5.
Battery ChemistryAlkaline
Battery SizeAAA
Battery TypeAAA Alkaline, 9 V Batte.
BrandGreenlee
Brand NameGreenlee
CA Prop 65 CancerYes
CA Prop 65 Chemcial Nam.Lead
CA Prop 65 Reproductive.No
Calibration Certificate.No
Capacitance0.04-4,000 ?F, 40/400 n.
Capacitance Range400 uF
Capacitance:40, 400 nF; 4, 40, 400,.
Case Pack1
Catalog NumberDM-65
CategoryMultimeters
Computer Interface Conn.None
Continuity W/ Diode TestYes
Country of OriginCN - China, China, CN
Counts6000
Counts:6000
Current Stock22
Data HoldYes
Data LoggingNo
Description:DMM 1000V AC/DC 10A CAP.
Diode TestYes
Diode Test:Yes
DisplayDigital With Bar Graph
Display TypeLCD, LED, LCD with Barg.
Display:Digital With Bar Graph
Duty Cycle5% - 95%, Yes, 5 - 95 P.
Duty Cycle:5 - 95 PCT
ECCNEAR99
Family SeriesGreenlee Multimeters, D.
Faucet Part FeatureCaps and Plugs
Field Replaceable FusesYes
Field Replaceable Fuses:Yes
Frequency0.0099-999.9 kHz
Functions MeasuredAC Voltage; DC Voltage;.
Fuse AccessYes
Gross Weight1.4 lbs
Height4.0 in.
IncludesBoot, Meter, Test Leads.
Instrument Counts6000, 6,000
Instrument Safety RatingCAT III 1000V, CAT IV 6.
International ShippingNo
ItemDigital Multimeter
Item NumberDM-65
Lead TimeExpected to ship in 1-2.
Length10.0 in.
ManufacturerGreenlee, Greenlee Text.
Manufacturer Part NumberDM-65
Manufacturers Warranty .Lifetime, Limited Lifet.
Max Current (AC)10 A
Max Current (DC)10 A
Max Resistance60 MOhm
Max Voltage (AC)1,000 VAC
Max Voltage (DC)1,000 VDC
Max. AC Amps10
Max. AC Volts1,000
Max. DC Amps10
Max. DC Volts1,000
Max. Ohms60 megohm
Maximum AC Current Meas.10A, 10 A
Maximum AC Voltage Meas.1000V, 1,000 V
Maximum Capacitance Mea.4000, 4,000 uF
Maximum DC Current Meas.10A, 10 A
Maximum DC Voltage Meas.1000V, 1,000 V
Maximum Operating Tempe.+104
Maximum Resistance Meas.60 megaohm
Maximum Temperature Mea.+1832, 1,832 Degrees F
Measuring Range1000 VAC/VDC, 10 A, 600.
MFG Part #:DM-65
Minimum AC Current Meas.600mA, 0 uA
Minimum AC Voltage Meas.0 V, 6V
Minimum Capacitance Mea.40nF
Minimum DC Current Meas.0 mA, 600
Minimum DC Voltage Meas.0 V, 600mV
Minimum Operating Tempe.+32
Minimum Temperature Mea.-4, -4 Degrees F
Minimum/Maximum MemoryNo
Model NumberDM-65
MpnDM-65
Multimeter StyleFull Size - General Fea.
Net Weight1.4 lbs
NIST CertifiedNo
Number of Displayed Dig.4
Parameters MeasuredAC Current, AC Voltage,.
Peak HoldYes
Power SourceBattery
ProductHand Tools
Product SeriesDM-65
Product TypeDigital Multimeter
Product Weight (lbs)1.4
Resistance600 Ohm/6/60/600 kOhm/6.
Resistance:600 ?. 6, 60, 600 k? 6,.
Safety CategoryCAT IV 600 V; CAT III 1.
Safety Category LevelCAT IV; CAT III
Safety Category Voltage600; 1000V
Safety RatingCAT III 1000 VAC/CAT IV.
SeriesGREENLEE (R) DM-65
SKUZO-G7492484, DM-65
Software IncludedNo
Special FeaturesMeasures AC/DC Voltage,.
StandardC/US ETL Listed, CATIII.
Standard:C/US ETL Listed, CATIII.
StandardsC/US ETL Listed, CATIII.
StyleMulti Meter
SubCategoryTest Instruments
Supplier:Greenlee
Temperature ReadingsYes
Thermal ImagerNo
True RMSNo
TypeAuto/Manual Ranging
Type:Auto/Manual Ranging
UNSPSC41113630
UPC783310003397, 7.83E+11
UPC:783310003397
UseTesting
Voltage Rating1000
Voltage Rating:1k V
Volts AC1000
Volts DC1000
Width6.0 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Fisher toolsDM-6564.951In StockGreenlee64.95 @ 1
thumbzoomelectricsuppliesonline.comDM-6577.891In StockGREENLEE77.89 @ 1
ToolUp.comGREENLEE DM-6588.331In StockGreenlee88.33 @ 1
thumbzoomZoroG749248492.69157Greenlee1.4192.69 @ 1
thumbzoomsustainablesupply.comC1755691101.931In StockGreenlee1.41101.93 @ 1
thumbzoomvaluetesters.comQVT-2012081472603267809108.81In StockGreenlee108.8 @ 1
thumbzoomPlumbersStock274417110.511In StockGreenlee1.4110.51 @ 1
thumbzoomturtle.comGRL DM-65111.21In StockGreenlee Textron111.2 @ 1
thumbzoomSpecialized Products297X026111.251In StockGreenlee111.25 @ 1
thumbzoomHiscoDM-65-65663111.251In StockGreenlee111.25 @ 1
thumbzoomLighting SupplyGREENLEE-DM-65112.341In StockGreenlee1.4112.34 @ 1
imsbolt.comDM-65112.351In StockGREENLEE112.35 @ 1
thumbzoomGalcoDM-65-GLEE118.51In StockGreenlee1.4118.5 @ 1
thumbzoomsimsupply.comZO-G7492484119.62122Greenlee119.62 @ 1
thumbzoomalldataresource.com1041618121.071In StockGreenlee-Textron121.07 @ 1
Dale-ElectricDM-65126.211In StockGreenlee Textron126.21 @ 1
thumbzoomPlatt.com0899851129.831In StockGreenlee129.83 @ 1
kscdirect.comGRE DM-65141.221In StockGREENLEE141.22 @ 1
grainger.caGLEDM65144.68942611In StockGREENLEE1.4144.6894261 @ 1
thumbzoomcrescentelectric.com27864152.681In StockGreenlee152.68 @ 1
Graybar25416790152.89121In StockGreenlee152.8912 @ 1
thumbzoommayerelectric.comGREDM65157.631In StockGREENLEE157.63 @ 1
steinerelectric.com700123167.811In StockGreenlee167.81 @ 1
thumbzoomAccessotronikDM-65_G173175.151In StockGreenLee175.15 @ 1
thumbzoomRaptor SuppliesAF7DCX206.09520751In StockGREENLEE206.0952075 @ 1
