Hayward WCV1800VH

B00JU6F3DO

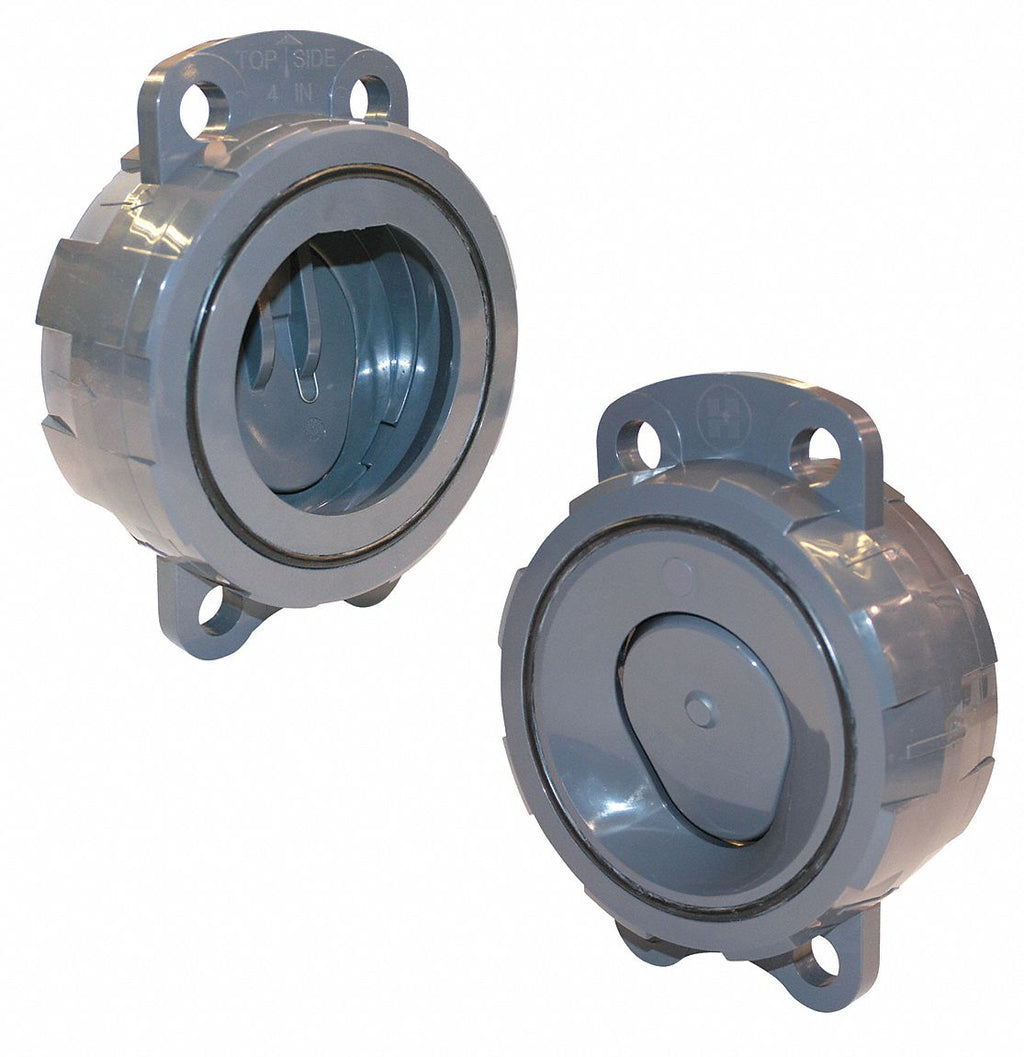

Hayward WCV1800VH Series WCV Full Pattern Wafer Check Valve with Spring, PVC with FPM/Hastelloy Seals, 8" Size

Hayward WCV1800VH Series WCV Full Pattern Wafer Check Valve with Spring, PVC with FPM/Hastelloy Seals, 8" Sizezoom

Attributes

Key Value
Application - ValvesProcess Piping
Body MaterialPVC
Body Material - ValvesPVC
Connection TypeFlanged
Connection Type - Check.Flange x Flange
Country of Origin (subj.United States
Cracking Pressure1 psi
Cracking Pressure - Che.1.0 psi
Description:8" PVC Wafer Full Patte.
Domestic/ImportDomestic
Flow1225 gpm
Flow - Valves1,225 gpm
Flow DesignSingle
Full Flow - ValvesYes
Inlet to Outlet Length4.93 in
ItemWafer Check Valve
Item - Check ValvesCheck Valve
Length4 15/16 in
Length (Straight Wirewa.4 15/16 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Material of ConstructionPVC
Max. Pressure150 psi @ 70 Degrees F
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F
Max. Water Pressure150 psi @ 70 Degrees F
Max. Water Pressure - V.150 psi @ 70 Degrees F
Mechanism and Body Desi.Inline Wafer
MFG Part #:WCV1800VH
Min. Temp. - Valves40 Degrees F
Mounting OrientationHorizontal, Vertical
Mounting Orientation - .Horizontal, Vertical
Mounting PositionVertical or Horizontal
Nominal Size8 in
Overall Height13 3/8 in
Pipe or Tube Size8 in
Pipe or Tube Size - Che.8 in
Pipe Size8"
Port TypeFull
Pressure Rating150 psi
Seal MaterialFPM
Seal Material - Check V.FPM
Seat MaterialFPM
Seat Material - Check V.FPM
SeriesWCV
Size8"
Softgoods MaterialFPM
Spring MaterialHastelloy
Spring Material - Check.Hastelloy
Sub-CategoryPVC
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating70 deg F
TypeWafer
UPC:610377188661
Width10 7/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB00JU6F3DO1870.071In StockHayward1870.07 @ 1
thumbzoomZoroG68965042271.01In Stock10Hayward14.82271.0 @ 1
thumbzoomsustainablesupply.comC29843872469.721In StockHayward14.82469.72 @ 1
thumbzoomblackhawksupply.comWCV1800VH2662.451In StockHayward2662.45 @ 1
thumbzoomRaptor SuppliesAH8KFD3087.07044751In StockHAYWARD3087.0704475 @ 1
kscdirect.comHAY WCV1800VH3439.581In StockHAYWARD INDUSTRIAL PRODUCTS3439.58 @ 1
