Jet 354402

B002SDAX68

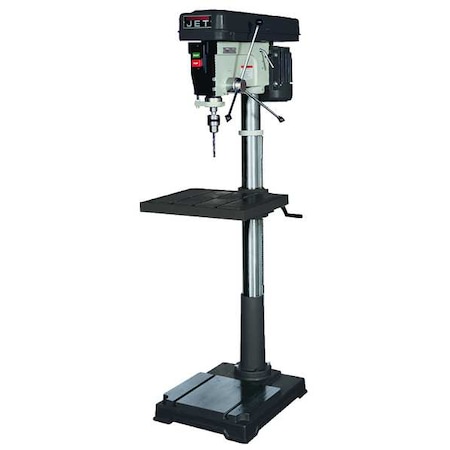

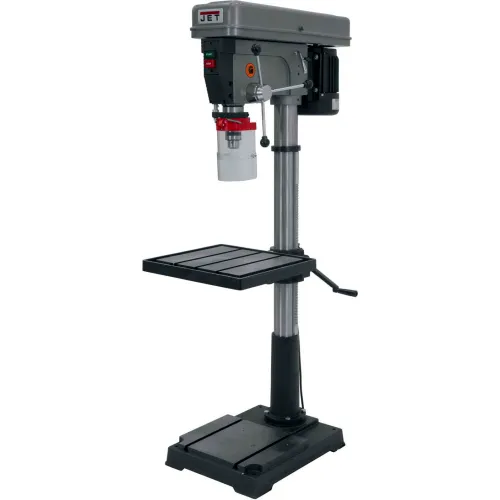

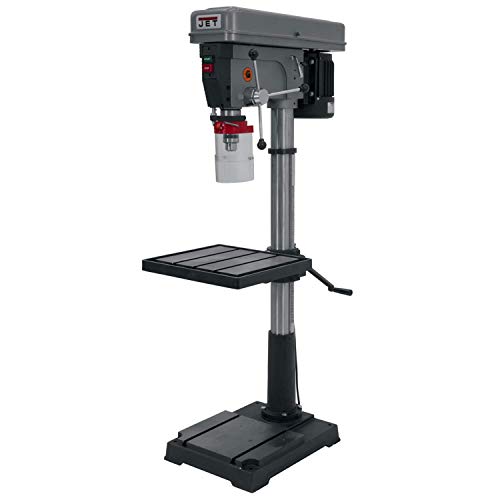

JET J-2550, 20-Inch Drill Press, 12-Speed, 1Ph 115V (354402)

JET J-2550, 20-Inch Drill Press, 12-Speed, 1Ph 115V (354402)zoom

Attributes

Key Value
Base Dimensions (In.)22-3/4 x 17-3/4, 22-3/4.
Base Dimensions (LxWxH/.22-3/4 x 17-3/4
Base Length22 3/4 in
Base Size22-3/4 in x 17-3/4
Base Slots Number & Siz.2 & 5/8 </td
Base Slots Number and S.2, 5/8
Base Width17 3/4 in
Base Work Table (in.)13 x 14-1/2
Batteries Included?No
Batteries Required?No
Best Sellers Rank#602,605 in Tools & Hom.
BrandJet
Chuck Size5/8 in
Chuck Size (in.)5/8
ColorSteel
Column Dia.3 5/8 in
Column Diameter3 5/8 in
Column Diameter (In.)3-5/8, 3-5/8 </td
Column Diameter (in.)3-5/8
ConditionNew
Current Stock3
Customer Reviews4.6 out of 5 stars8 rat.
Date First AvailableOctober 9, 2009
Distance Column to Spin.10
Distance Column to Spin.10, 10 </td
Drill Press Product Gro.General Purpose Drill P.
Drilling Capacity Cast .3/4 </td, 3/4
Drilling Capacity Cast .3/4
Drilling Capacity Mild .5/8 </td, 5/8
Drilling Capacity Mild .5/8
Drills to Center of Cir.20 </td, 20
Drive TypeBelt
Gross Weight304 pound
Height13 inch, 13.00
Horsepower1, 1 HP
Included Components20" Drill Press
International ShippingNo
Is Discontinued By Manu.No
ItemFloor Drill Press
Item Dimensions LxWxH56.5 x 26 x 13 inches
Item model number354402
Item Package Quantity1
Item Weight421 Pounds
Lead TimeExpected to ship in 1-2.
Length56.5 inch, 57.00
ManufacturerJet
Max Distance - Spindle .24
Maximum Overall Height67 in
Maximum Spindle-to-Base.43 1/2 in
Maximum Spindle-to-Tabl.24 in
Model354402
Model NumberJ-2550
Motor1 HP, 1 Ph, 115/230V, P.
Motor (HP)1 HP, 115/230V, 1 Ph .
Motor HP1 HP
Motor Phase1 Ph
Mpn354402
Net Weight304 pound
Number of Spindle Speeds12 </td, 12
Number of Spindle speeds12
Overall Depth33 1/2 in
Overall Dimensions34 X 21 X 67
Overall Dimensions (L x.33-1/2 x 18-1/2 x 67, 3.
Overall Height67 in
Overall Length33 1/2 in
Overall Width18 1/2 in
Part Number354402
Power SourceCorded Electric
Product Dimensions56.5 x 26 x 13 inches
Product with faster shi.true
Quill Diameter2 1/4 in
Quill Diameter (in.)2-1/4
Quill Travel (in.)4-3/4
Range of Spindle Speeds.150, 260, 300, 440, 490.
Shippingundefined (Fixed Shippi.
SizeLarge
SKU354402, ZO-G1336964
Spindle Distance to Bas.43-1/2, 43-1/2 </td
Spindle Distance to Bas.43-1/2
Spindle Distance to Tab.24, 24 </td
Spindle TaperMT-3
Spindle Taper (In. x TP.MT-3 </td, MT-3
Spindle Travel (in.)4-3/4
Spindle Travel (In.)4-3/4, 4-3/4 </td
Stationary typeBelt Drive
StyleSingle Phase Floor Mode.
Style (Type)Belt Drive, Belt Drive .
SubCategoryMachining/Machinery
Swing20 in
T-Slot Centers (In.)4, 4 </td
T-Slot Centers (in.)4
T-Slots Number and Size.3, 1/2, 3 & 1/2 </td
T-Slots Number and Size.3 x 1/2
Table Dimensions14 x 16
Table Length18 3/4 in
Table Size (in.)18-1/2 x 16-1/2
Table Size (L x W) (In.)18-11/16 x 16-3/4, 18-1.
Table Slot Size1/2 in
Table Slot Width1/2 in
Table Travel (In.)21-1/2, 21-1/2 </td
Table Travel (in.)21-1/2
Table Width16 3/4 in
UPC66275609266, 6627560926.
Voltage115 Volts, 115/230
Warranty2-Year Warranty
Warranty Description2-Year
Weight (Lbs.)304, 304 </td
Width26.00, 26 inch
Work Table Weight Capac.66
Work Table Weight Capac.66 </td, 66

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TylerToolJETN354402147.991In StockJET147.99 @ 1
Home Depot204059397999.01In StockJET999.0 @ 1
internationaltool.comJET-3544021649.01In StockJet1649.0 @ 1
thumbzoomGlobal IndustrialWBB02307411729.01In StockJET1729.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-JT9-3544021729.01188Jet1729.0 @ 1
thumbzoomtoolsplus.comJET3544021729.01In StockJET1729.0 @ 1
thumbzoomtooltopia.comWIL3544021729.01In StockJet1729.0 @ 1
thumbzoomtoolfetch.com3544021729.01In StockJET1729.0 @ 1
thumbzoomFactory Authorized OutletJET-3544021729.01In StockJet304.01729.0 @ 1
thumbzoomburnstools.com3544021729.01In StockJet1729.0 @ 1
thumbzoomAceToolJET-3544021729.01In StockJET304.01729.0 @ 1
elitemetaltools.com89491729.01In StockJET1729.0 @ 1
thumbzoomimsbolt.com3544021729.01In StockJET1729.0 @ 1
thumbzoomhomeessentialsdirect.com3544021768.951In StockJET421.01768.95 @ 1
thumbzoomZoroG13369641889.0136Jet295.01889.0 @ 1
thumbzoomgasandsupply.comJET3544021900.01In StockJET304.01900.0 @ 1
thumbzoomsimsupply.comZO-G13369642188.0913Jet2188.09 @ 1
thumbzoombscsource.com3544022402.291In StockJet2402.29 @ 1
